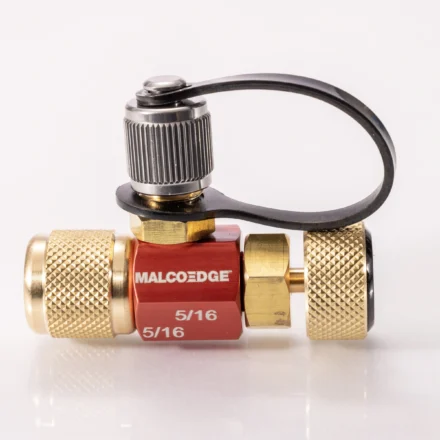

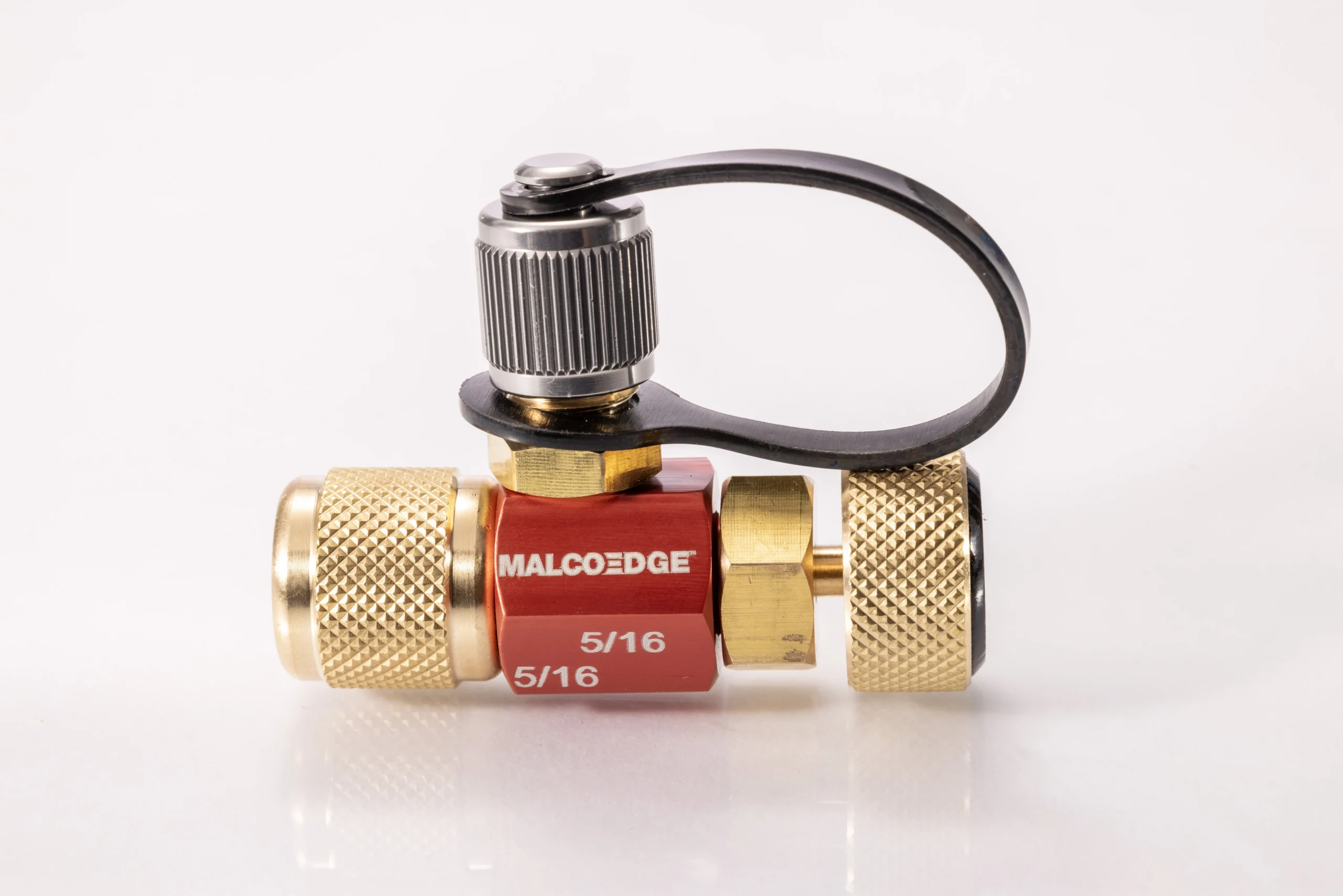

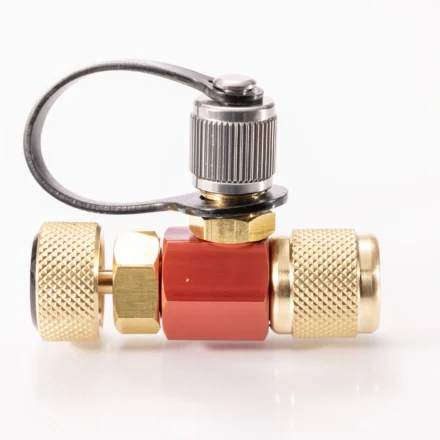

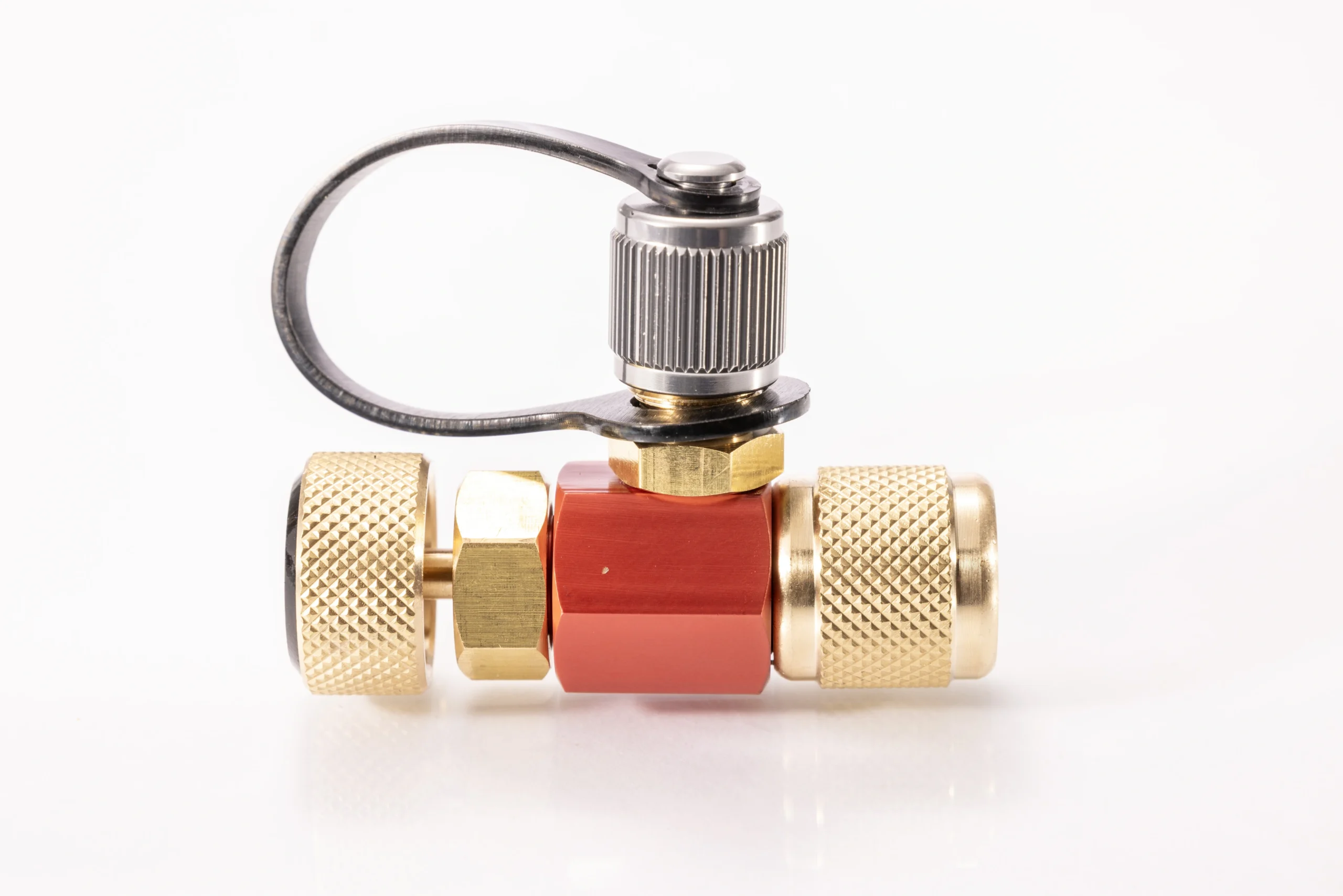

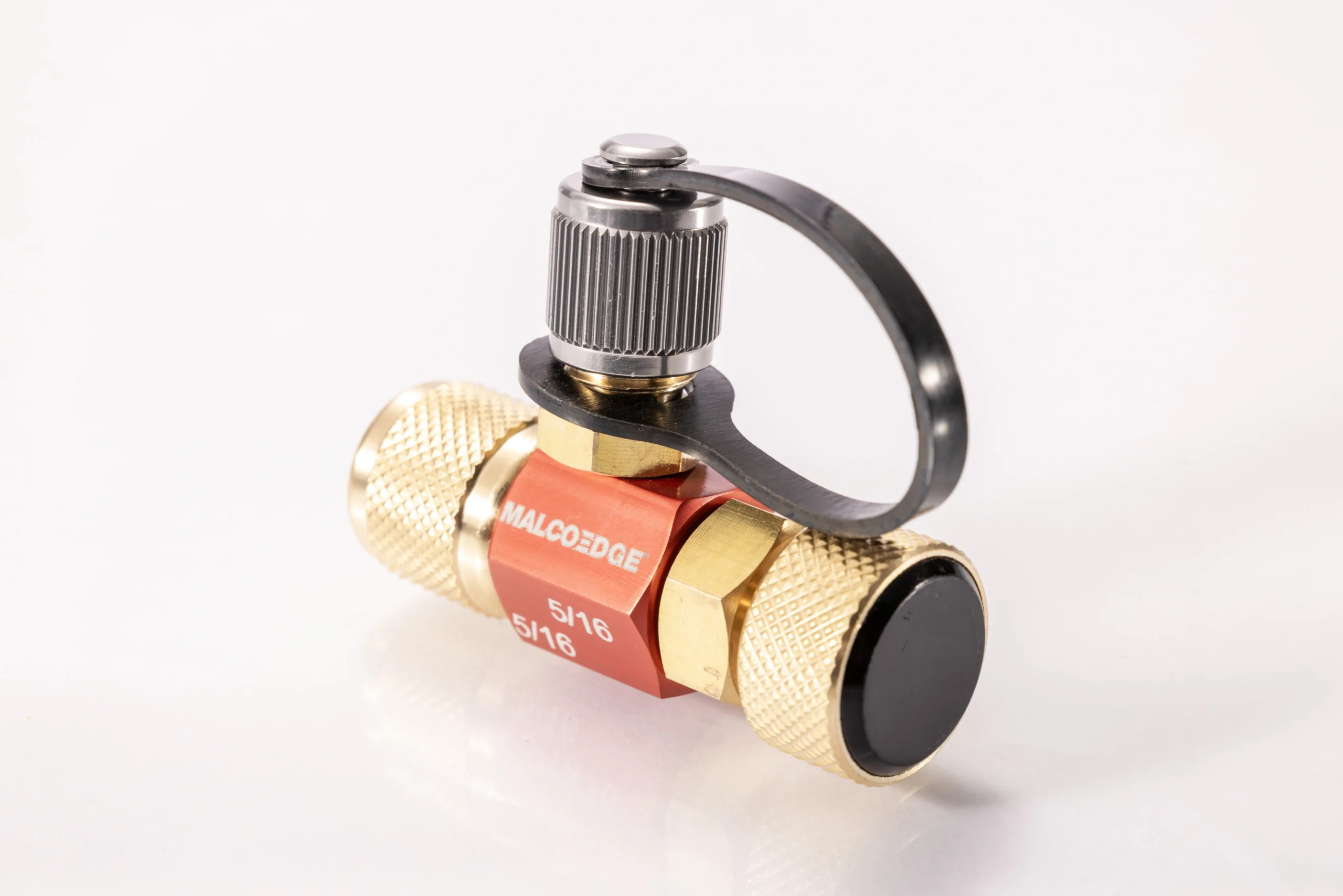

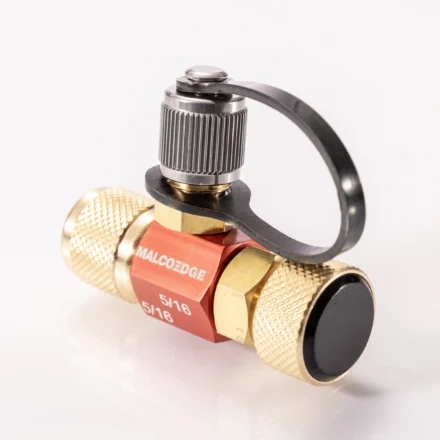

MalcoEdge Hi-Flow Core Control Depressor Tool 5/16″ x 5/16″ (CCD516)
The MalcoEdge CCD516 Hi-Flow Core Control Depressor Tool is purpose-built for 5/16″ service ports commonly found on mini-split systems and other tight-access installations. Its compact profile allows technicians to connect and control valve core engagement where larger tools cannot fit. By allowing controlled opening of the valve core after a secure connection is made, the CCD516 helps reduce refrigerant loss and improves safety during setup. It also enables standard hoses to function as controlled connection points.
FAQs
Q1: Why use a Core Control Depressor instead of the fixed core depressor on a charging hose?
A1: MalcoEdge Core Control Depressors allow technicians to separate hose connection from Schrader core depression, helping minimize refrigerant loss and reducing the chance of refrigerant burn during service.
Q2: What are the advantages of using a Core Control Depressor?
A2: Core Control Depressors provide controlled valve core engagement, minimize refrigerant loss, and improve hose access in tight service spaces. They also work with high-flow valve cores that may not be easily removable with standard core tools.
Q3: Are MalcoEdge Core Control Depressors vacuum rated?
A3: Yes. MalcoEdge Core Control Depressors are vacuum rated to 20 microns.
Q4: What is the maximum working pressure for MalcoEdge Core Control Depressors?
A4: MalcoEdge Core Control Depressors are rated for 800 psi (55 Bar).
