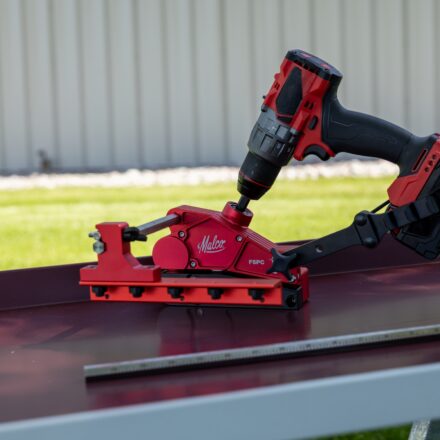

Malco FSPC Standing Seam Panel Cutter

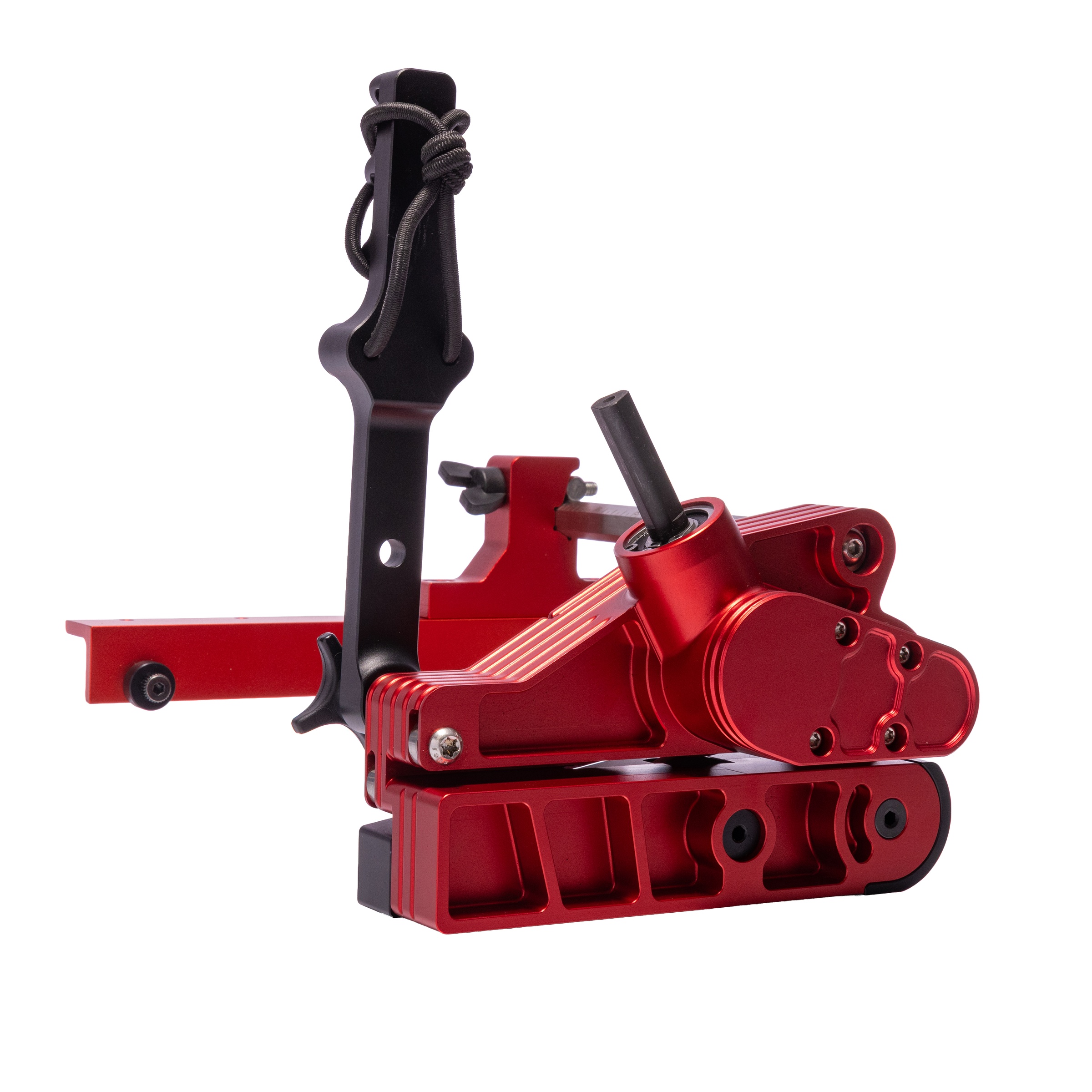

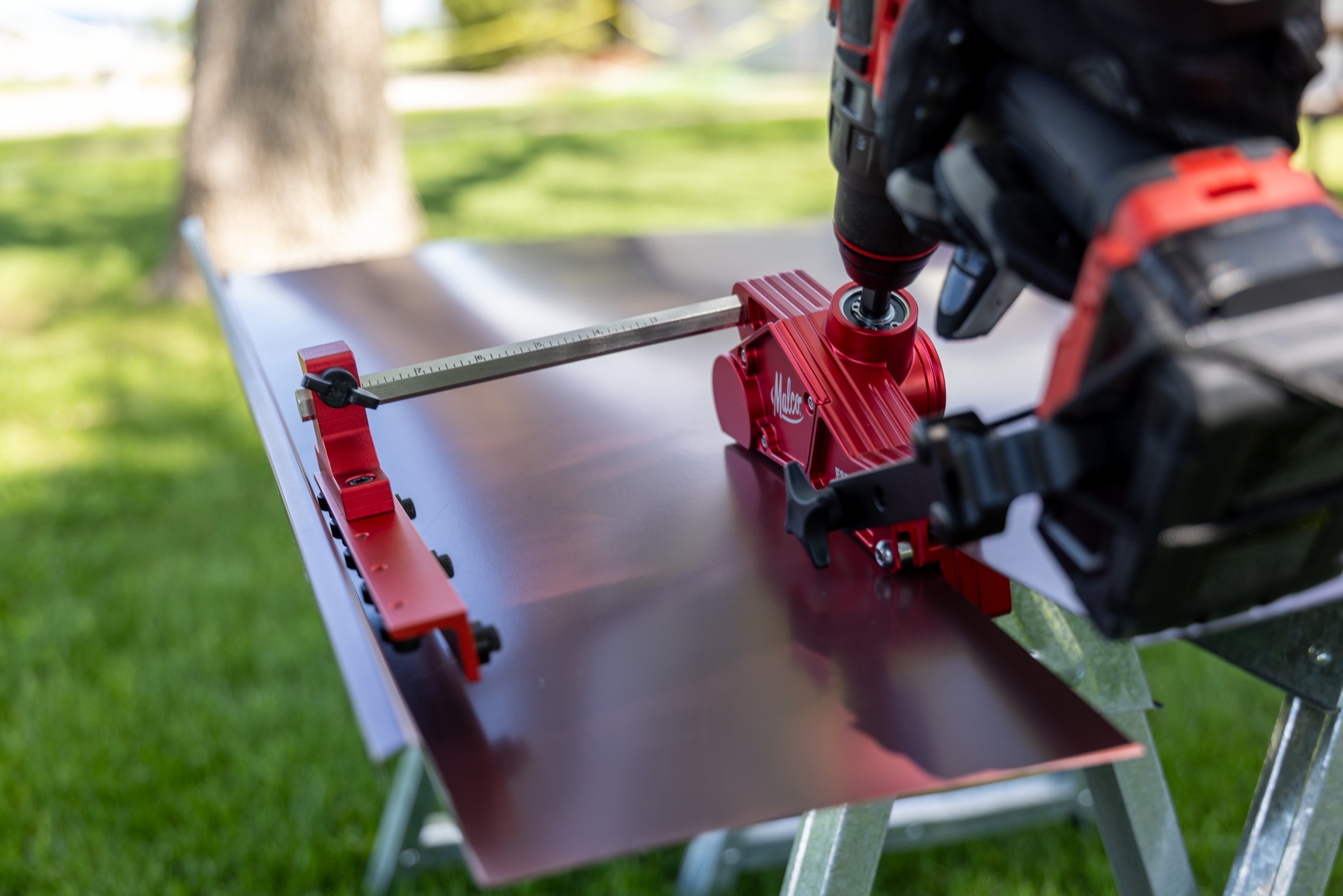

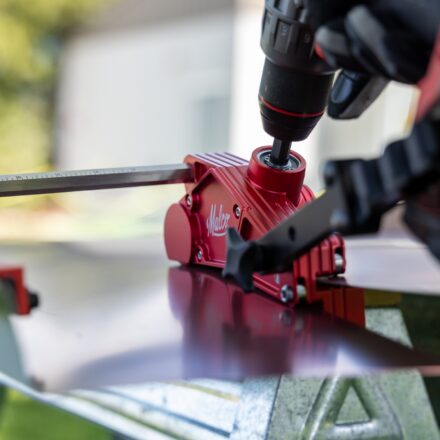

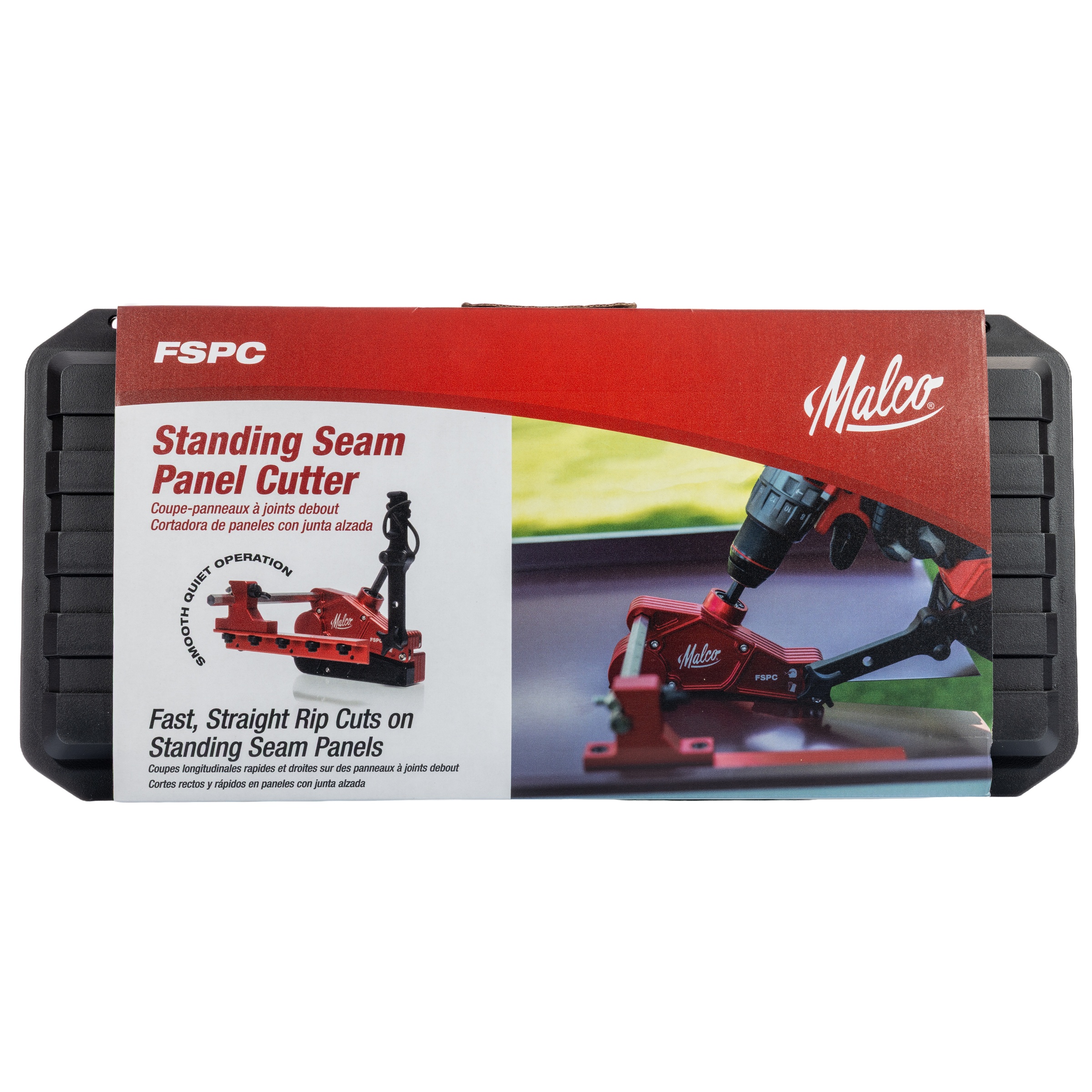

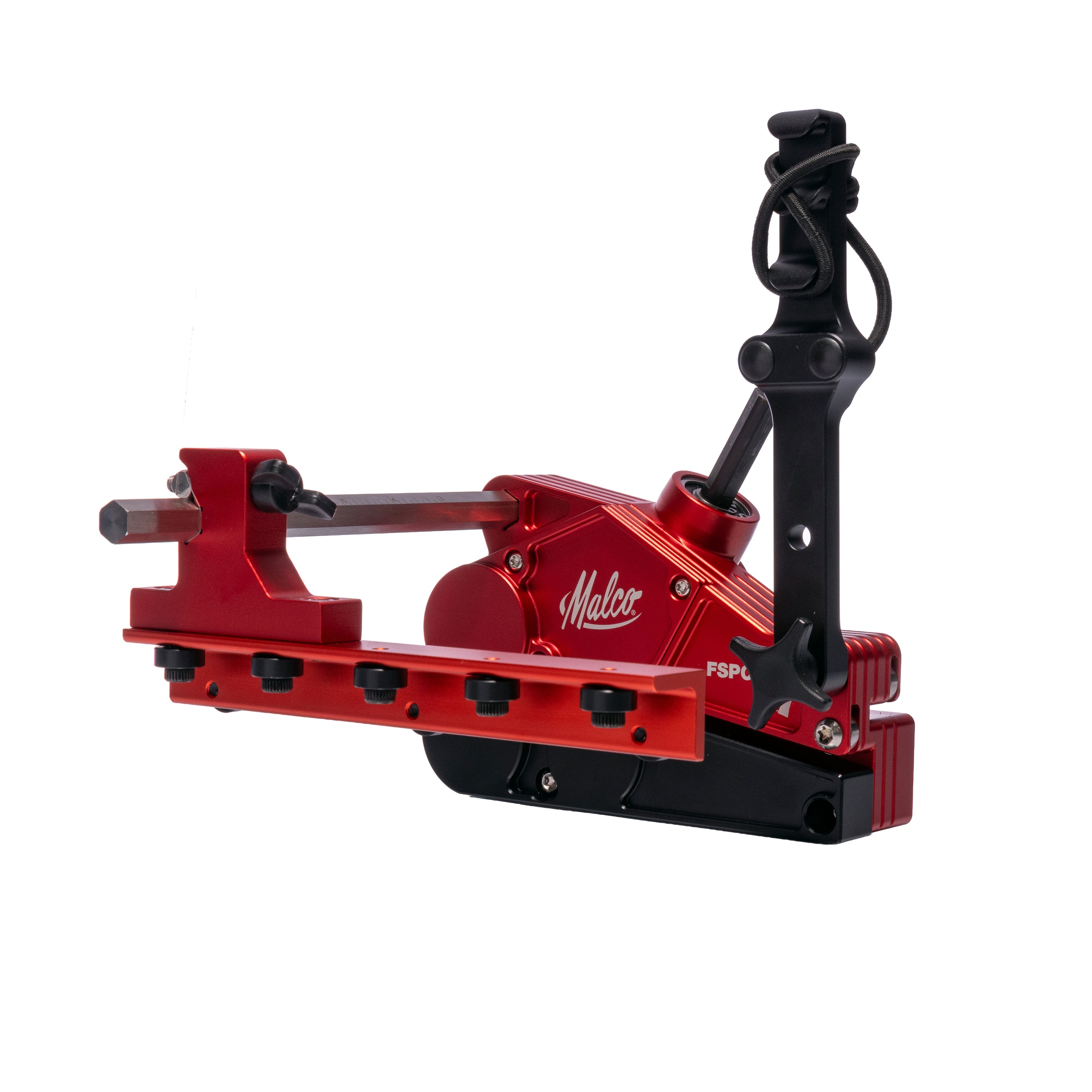

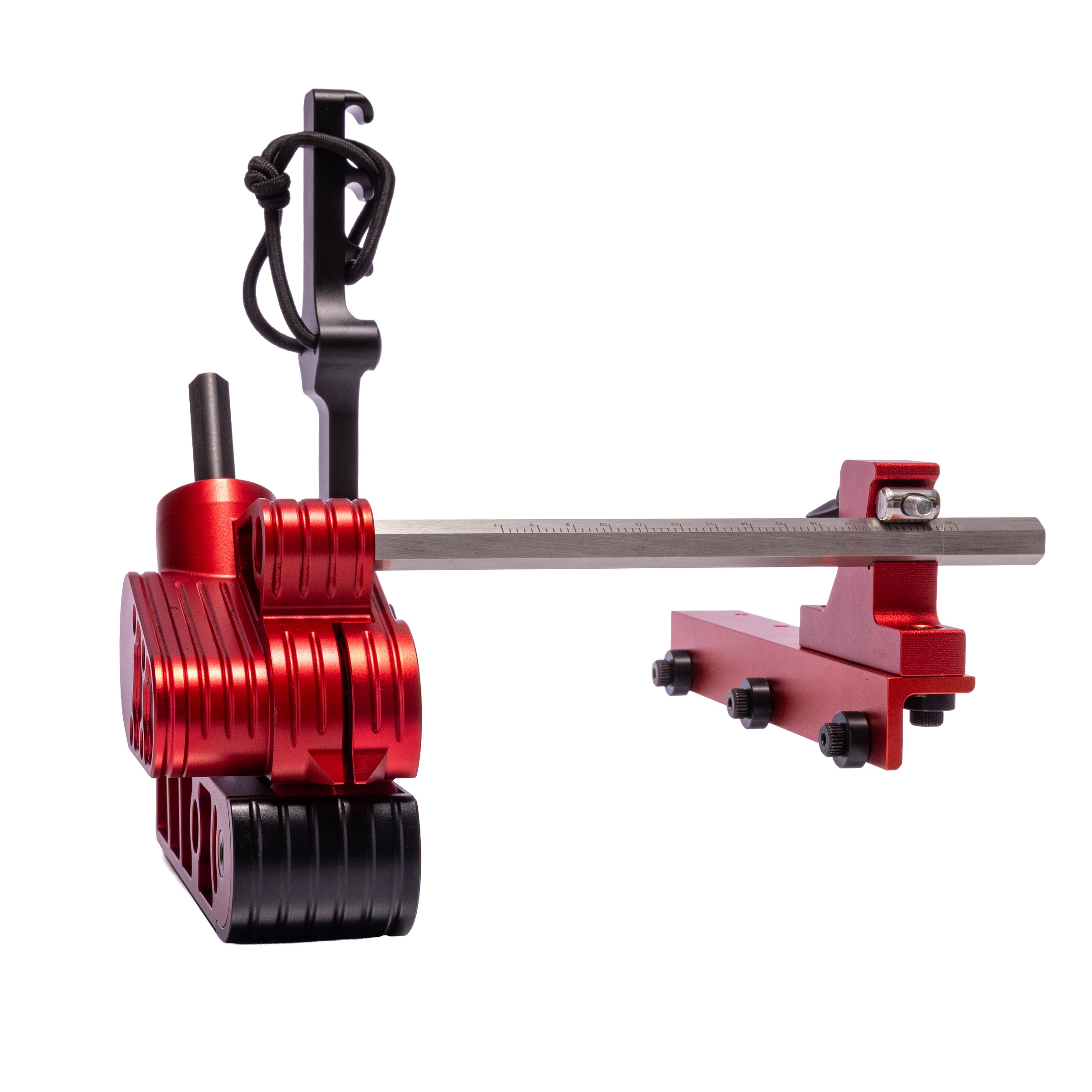

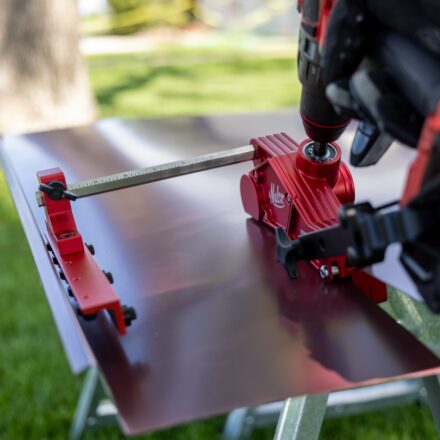

The Malco FSPC Standing Seam Panel Cutter gives Trade Pros a fast, precise way to rip cut 1 in. or taller standing seam roofing panels while maintaining a clean edge on both sides of the cut. Polymer drive wheels advance the cutter through the panel while helping protect the painted finish, allowing both halves of the material to remain usable. The adjustable fence indexes directly off either panel rib and includes interchangeable 8 in. and 16 in. rails for straight, repeatable cuts without snapping a chalk line. The FSPC cuts from either side of the panel at speeds up to 75 ft. per minute and handles up to 24-gauge painted steel, 26-gauge stainless steel and .032 in. copper, zinc and aluminum. It operates with any lithium-ion cordless drill rated for a minimum 45 ft-lb of torque and a maximum 500 RPM. Replaceable cutting discs and drive wheels extend service life, and an IP67-rated hard case protects the system during transport and storage.
Features
- Cuts up to 75 ft./min. with clean edges on both sides, keeping both halves of the panel usable
- Cuts up to 24-gauge painted steel, 26-gauge stainless steel, and .032 in. copper, zinc, and aluminum
- Adjustable fence with 8 in. and 16 in. rails indexes off either panel rib for repeatable cuts on 1 in. or taller seams
- Polymer drive wheels advance the cutter through the material while helping protect painted panel finishes
- Powered by a lithium-ion cordless drill with 45 ft-lb minimum torque and 500 RPM maximum — includes replaceable cutting components and an IP67-rated hard case
FAQs
Q1: Is there a scrap side when cutting roofing materials with the FSPC?
A1: No. Both sides of the cut will be clean since the slitting wheels are smooth, keeping both halves of the panel usable.
Q2: What speed should my drill be in when using the FSPC?
A2: We recommend using speed setting 1 or the lowest available speed. This provides the most control and highest torque while cutting sheet metal.
Q3: Will the FSPC cut across corrugated panels or other profiles with peaks and valleys?
A3: The FSPC is intended for use on flat panels, such as ripping standing seam or R panels (without the fence).
Q4: How do I adjust the cutting wheels on the FSPC?
A4: Please refer to the FSPC instruction sheet for guidance on adjusting the cutting wheels.
