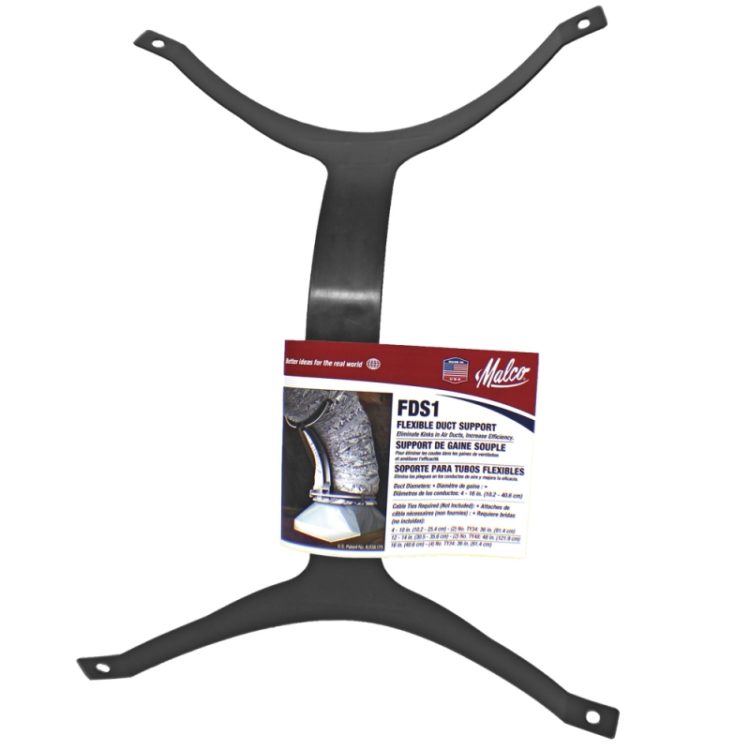

Flexible Duct Support

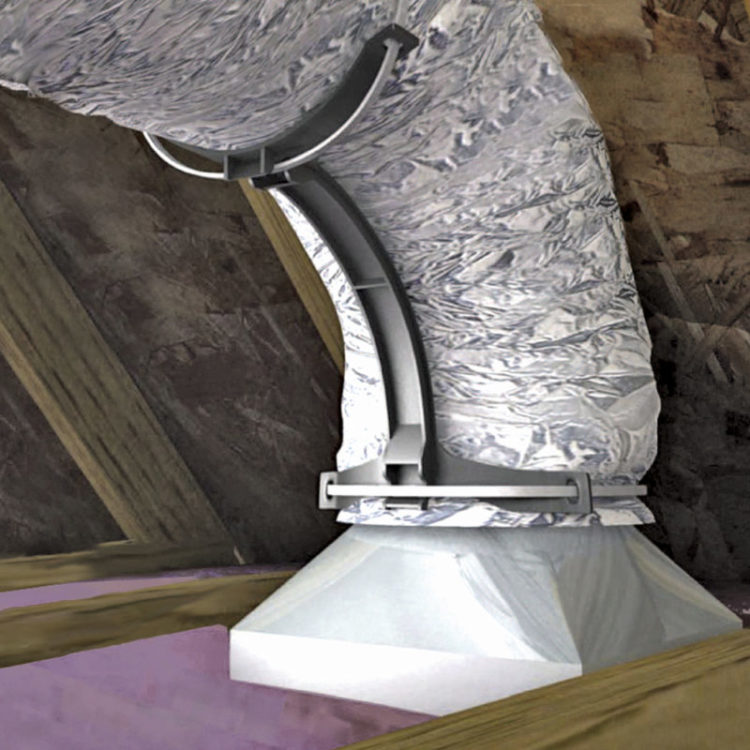

The Malco FDS1 Flexible Duct Support eliminates air flow restrictions and increases efficiency to dramatically reduce utility bills and improve heated or air-conditioned room comfort. A properly supported 90° duct elbow typically improves air flow efficiency 10 to 40%. A Malco Duct Support quickly installs on new or existing flexible duct. The versatile FDS1 design uses either 36 or 48 inch nylon cable/zip ties to accommodate 4 inch to 16 inch diameters of flexible fiberglass wool duct as well as un-insulated flexible duct. And the strong, but lightweight, 100% recycled polymer support will not weigh down ducting.
FAQs
Q1. Are the FDS1's plenum rated? A1. The FDS1 is plenum rated and does meet UL2043. Q2: Does the FDS1 meets ADC6 standards for air duct design? A2: The FDS1 has an 8" radius, they meet the standard for 6", 7", and 8" ducts. The design intent for the product is to eliminate kinks without installing the traditional adjustable sheet metal elbows which only have a radius of 1". Regardless of the duct size, FDS1 dramatically improves airflow when installed.
