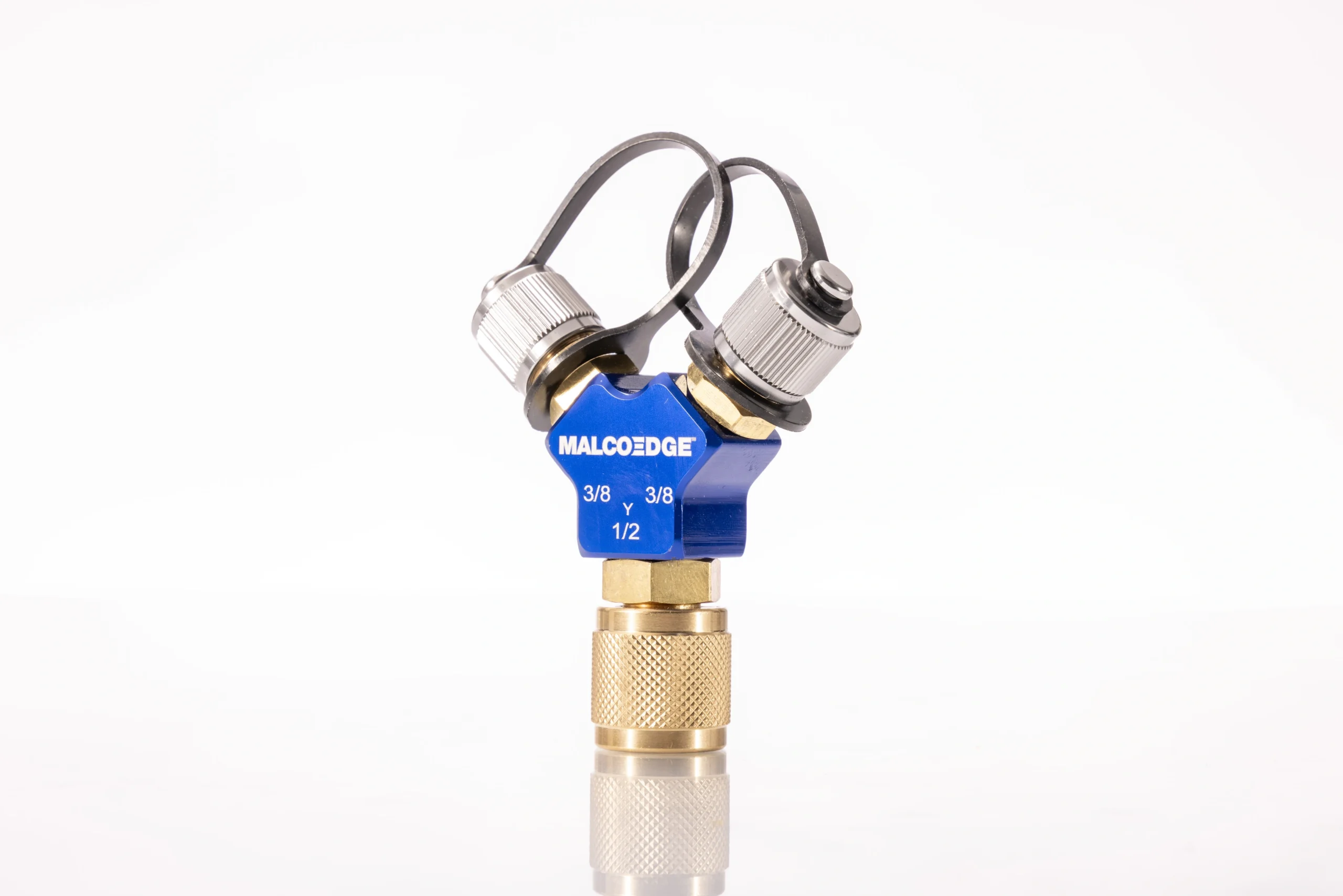

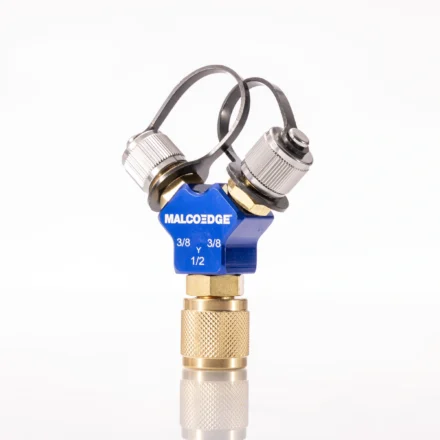

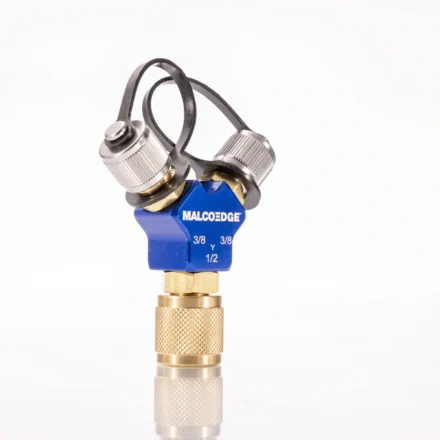

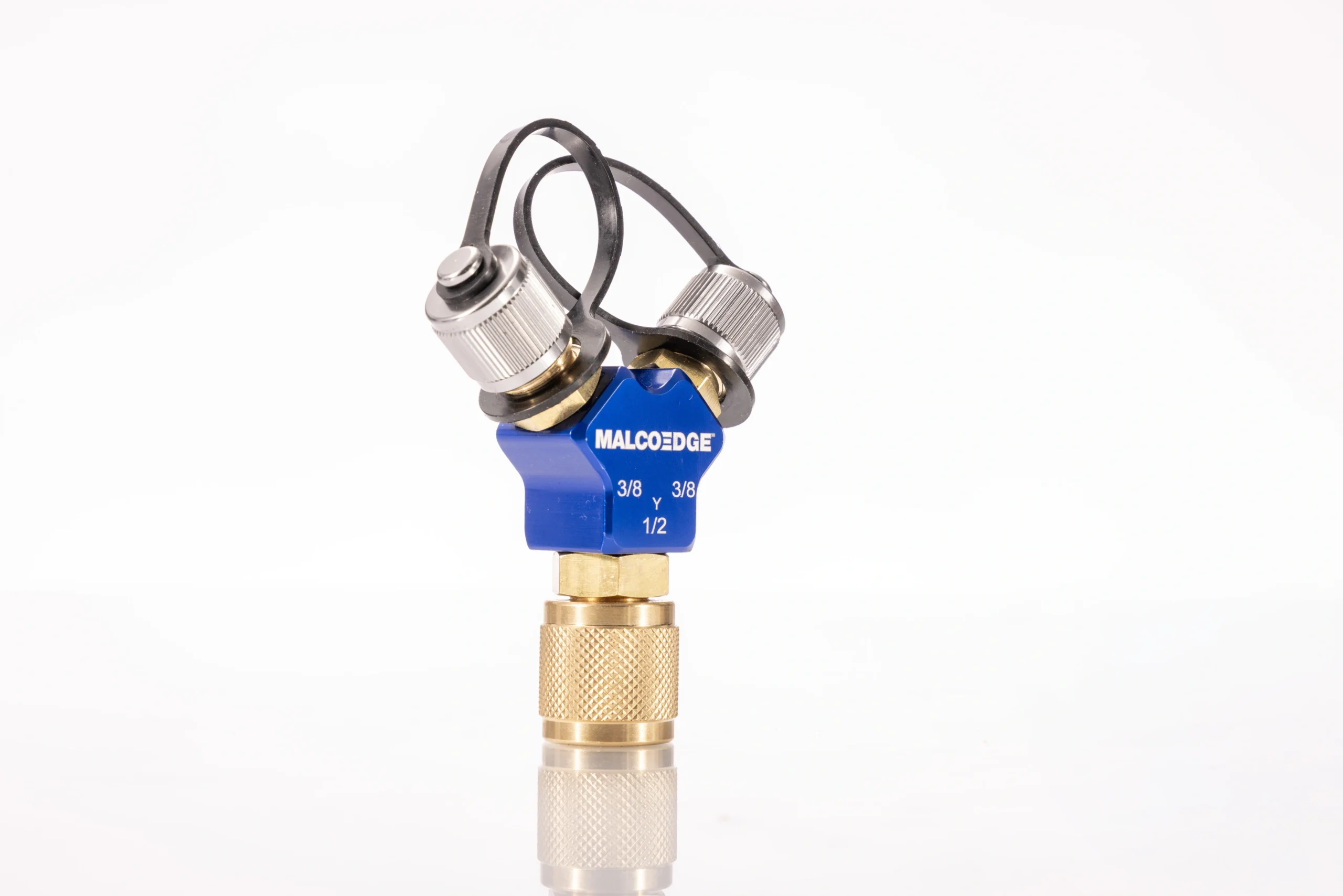

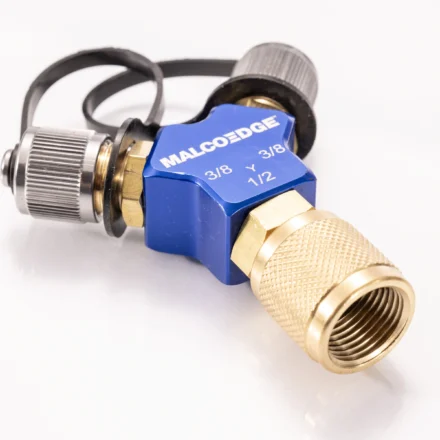

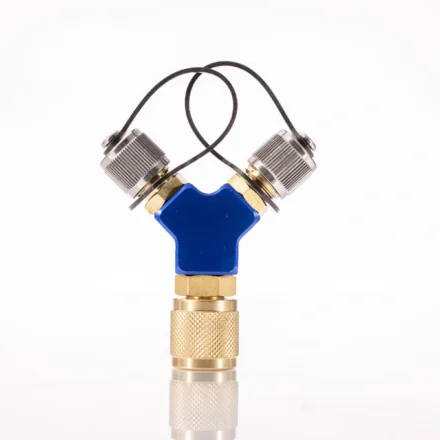

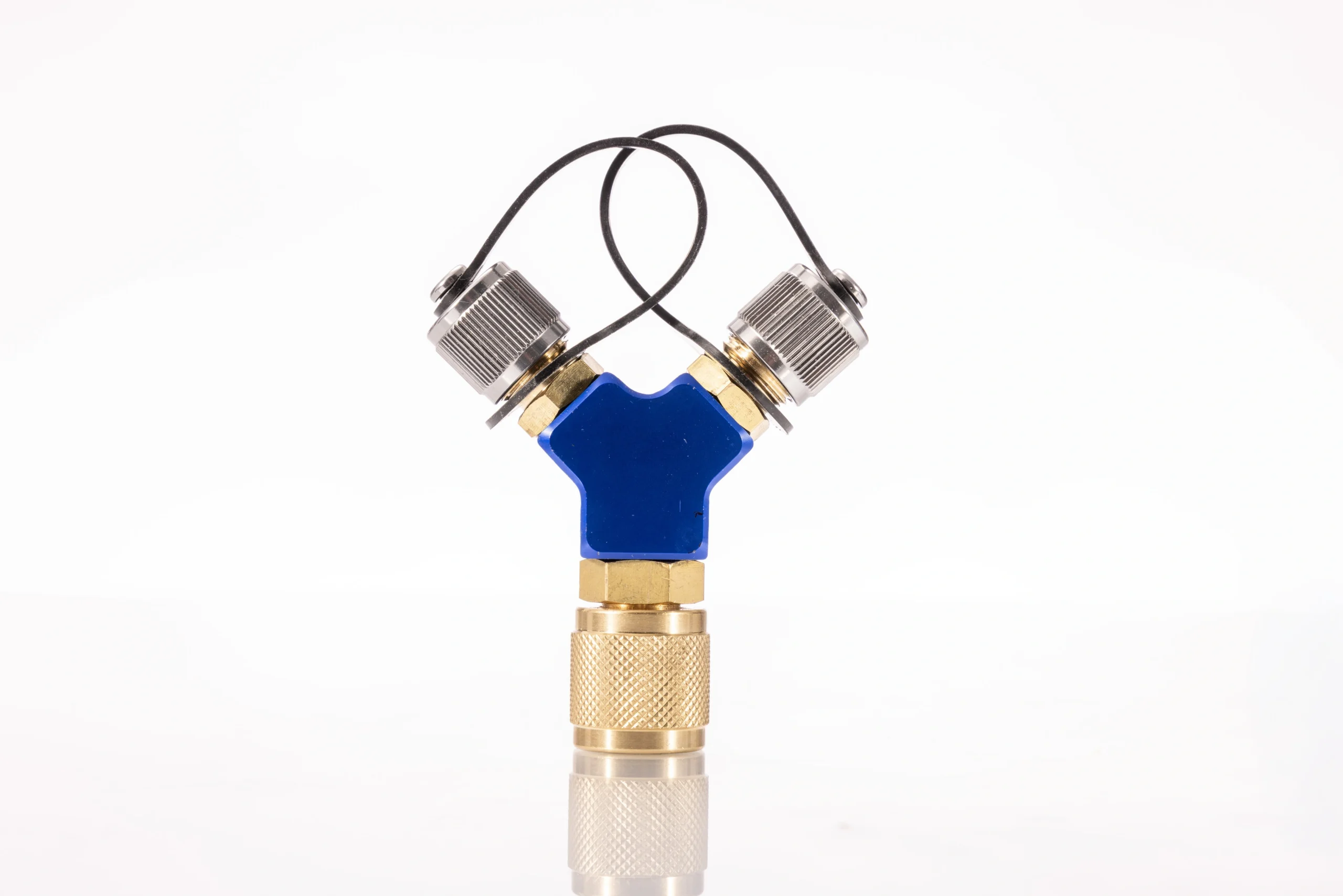

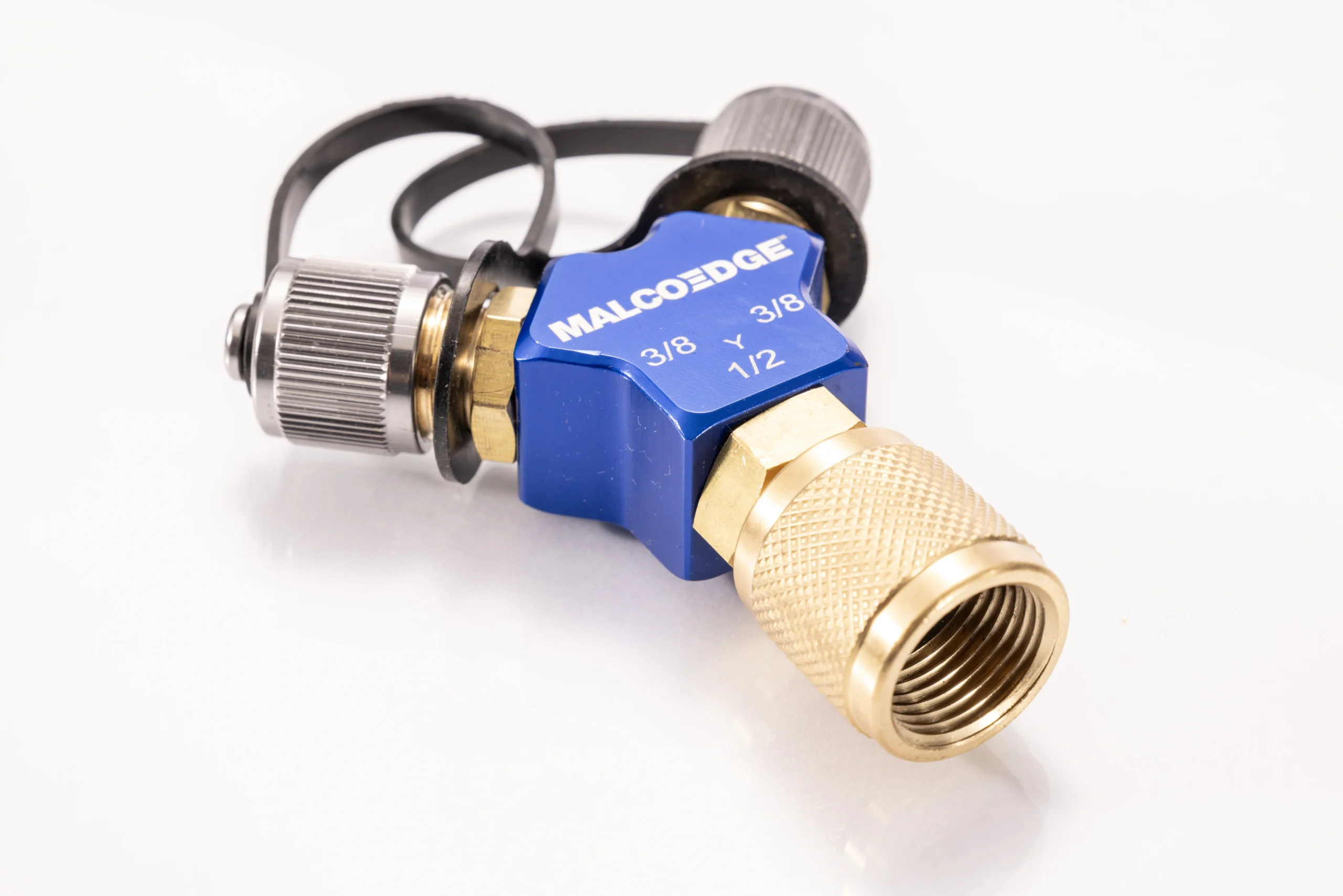

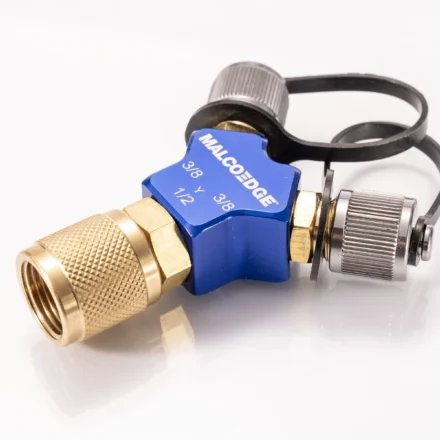

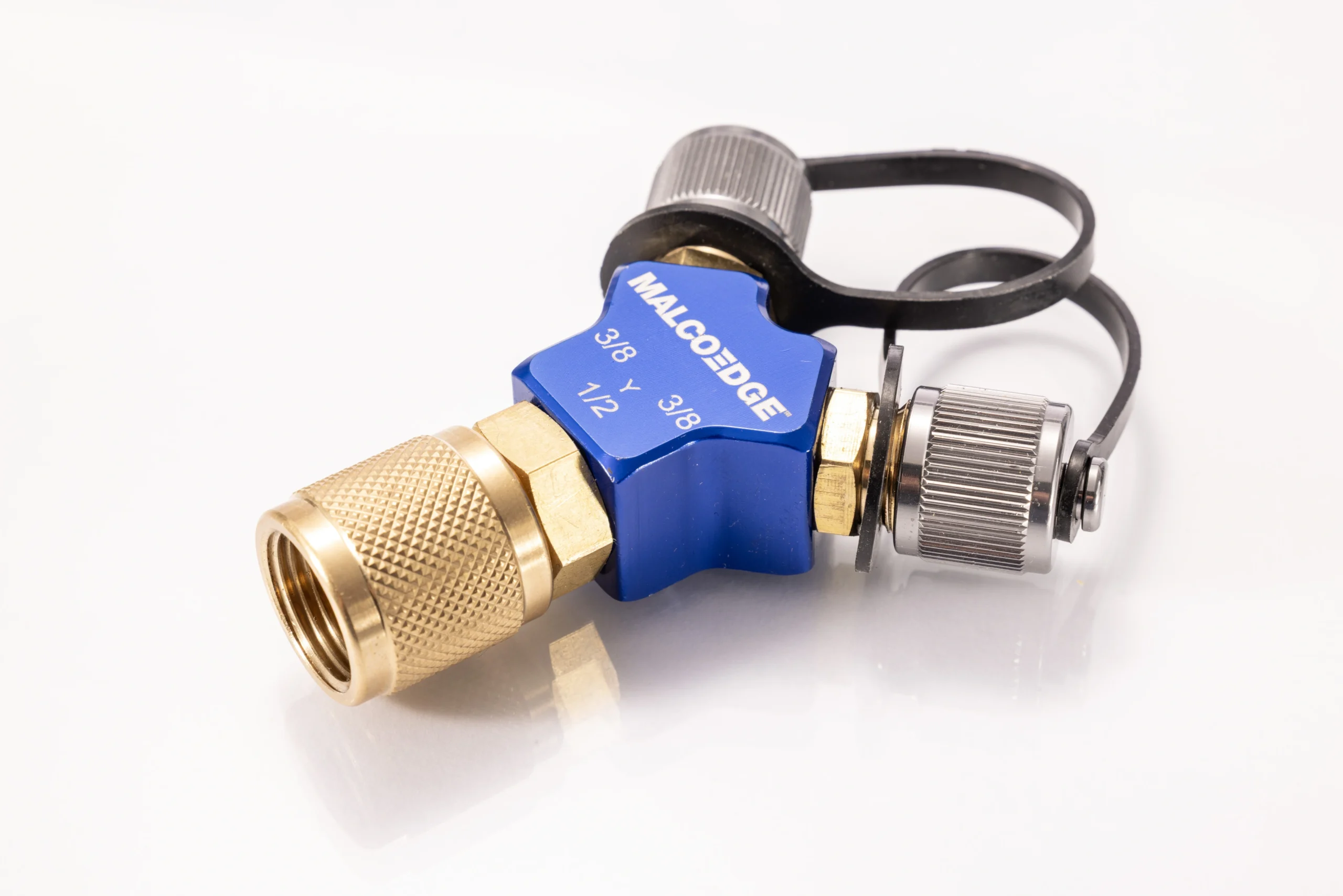

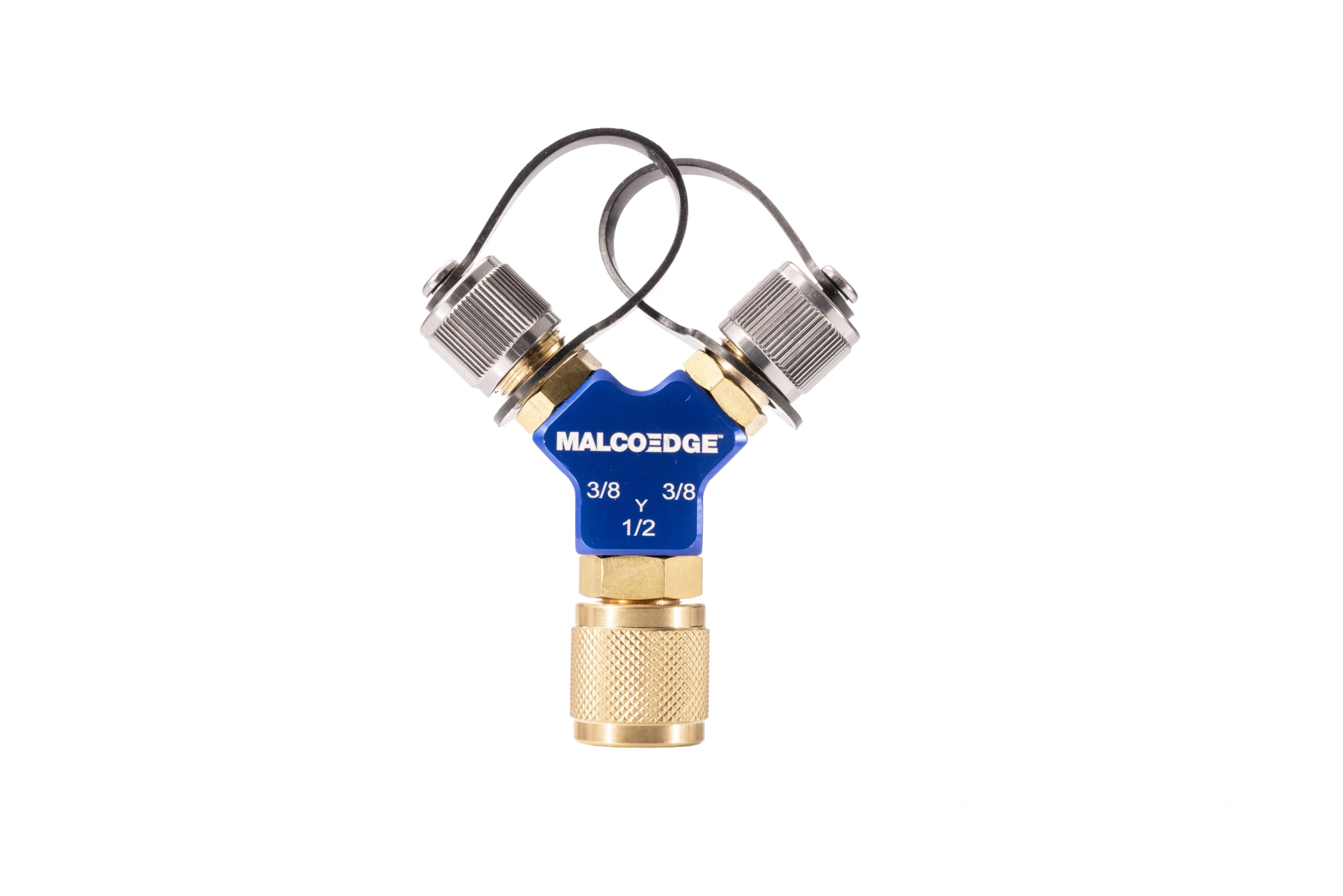

MalcoEdge Hi-Flow Y Branch 1/2″ x 3/8″ x 3/8″ (HFY12)

0 Reviews | Write a Review

The Where To Buy map requires marketing cookies to be accepted. Please change your cookie preferences by clicking here and accepting cookies.

The MalcoEdge HFY12 Hi-Flow Y Branch is designed for systems with larger 1/2″ connections, allowing technicians to split flow into dual 3/8″ hoses for balanced, controlled evacuation and recovery. Its Y-shaped design promotes efficient flow distribution while minimizing turbulence and restriction. This enables better system performance when working with larger-capacity equipment or commercial applications.

Features

1/2″ to dual 3/8″ configuration
Balanced flow distribution
Reduced restriction
Y-design Vacuum-rated to 20 microns
Built for larger systems and commercial applications

Specifications

Connection Size: 1/2″ x 3/8″ x 3/8″

Vacuum Rating: 20 microns

Maximum Working Pressure: 800 psi

Material: Anodized aluminum body with Brass fittings

FAQs

Q1: Why would I use a Hi-Flow Y instead of a manifold?

A1:MalcoEdge Hi-Flow Ys create fewer restrictions and reduce potential leak points compared to traditional manifolds.

Q2: What are the advantages of using a Hi-Flow Y?

A2: Hi-Flow Ys allow multiple hoses to connect to a single port for faster evacuation, recovery, and charging applications. Y connections generally provide improved flow compared to T fittings.

Q3: Are MalcoEdge Hi-Flow Ys vacuum rated?

A3: Yes. MalcoEdge Hi-Flow Ys are vacuum rated to 20 microns.

Q4: What is the maximum working pressure for MalcoEdge Hi-Flow Ys?

A4: MalcoEdge Hi-Flow Ys are rated for 800 psi (55 Bar).
