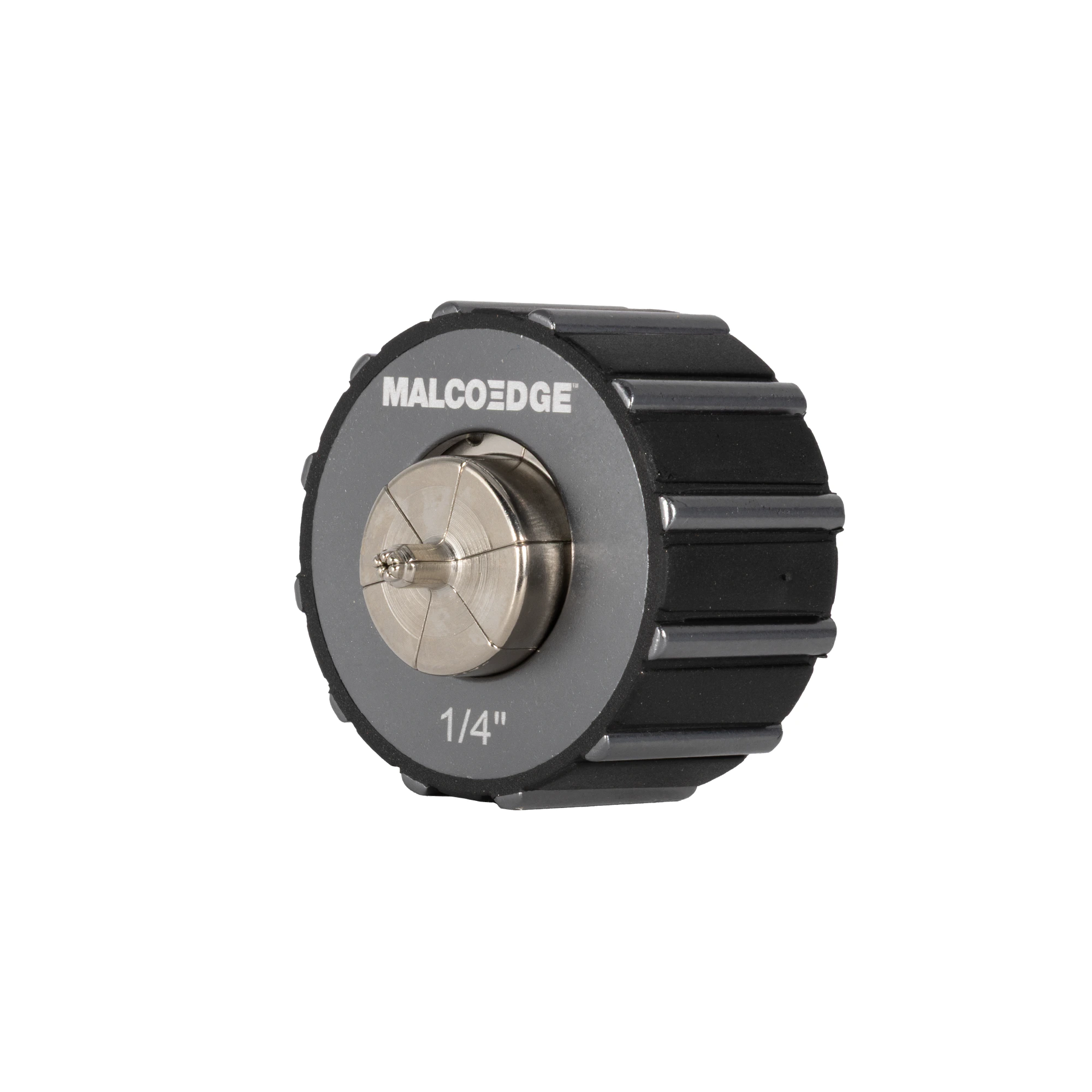

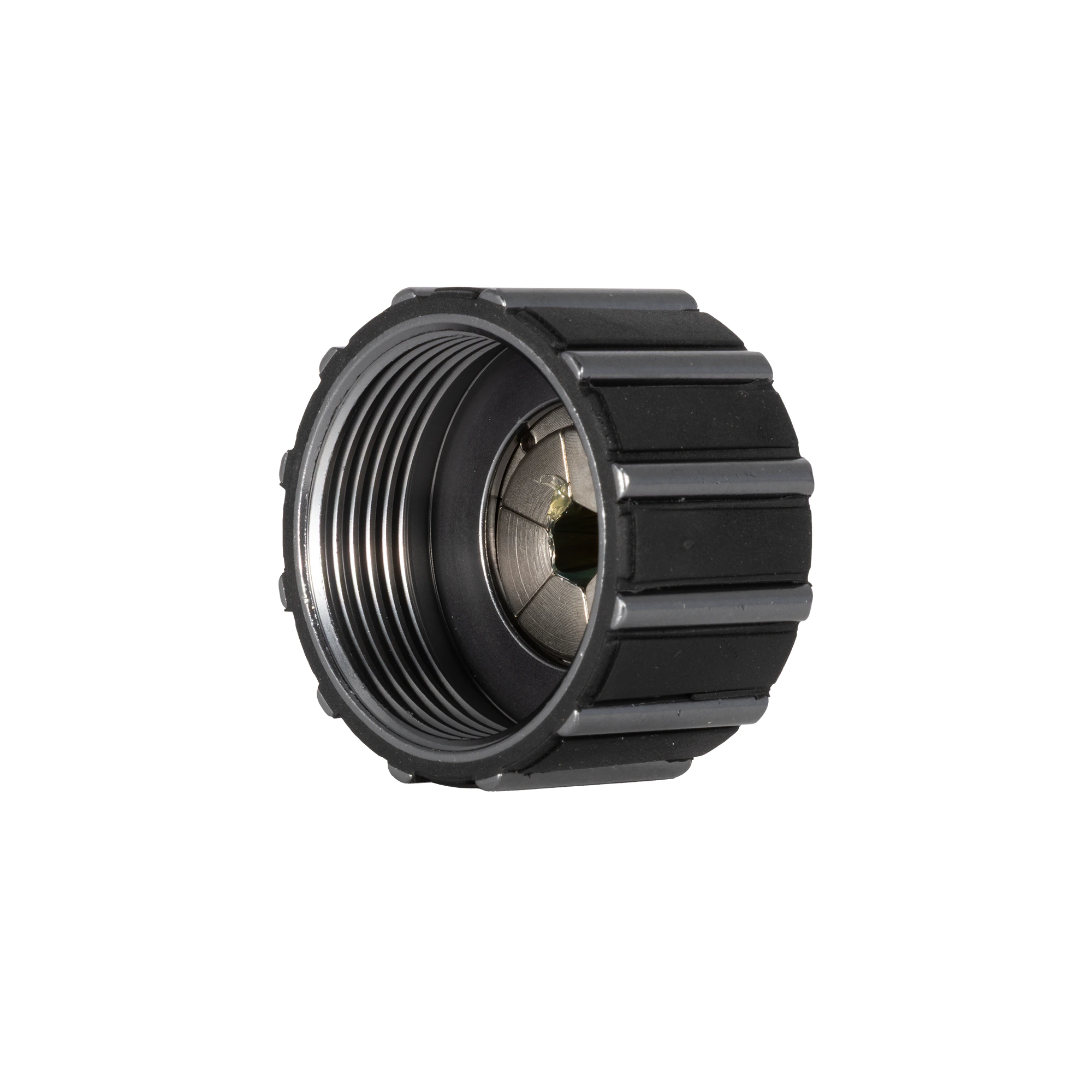

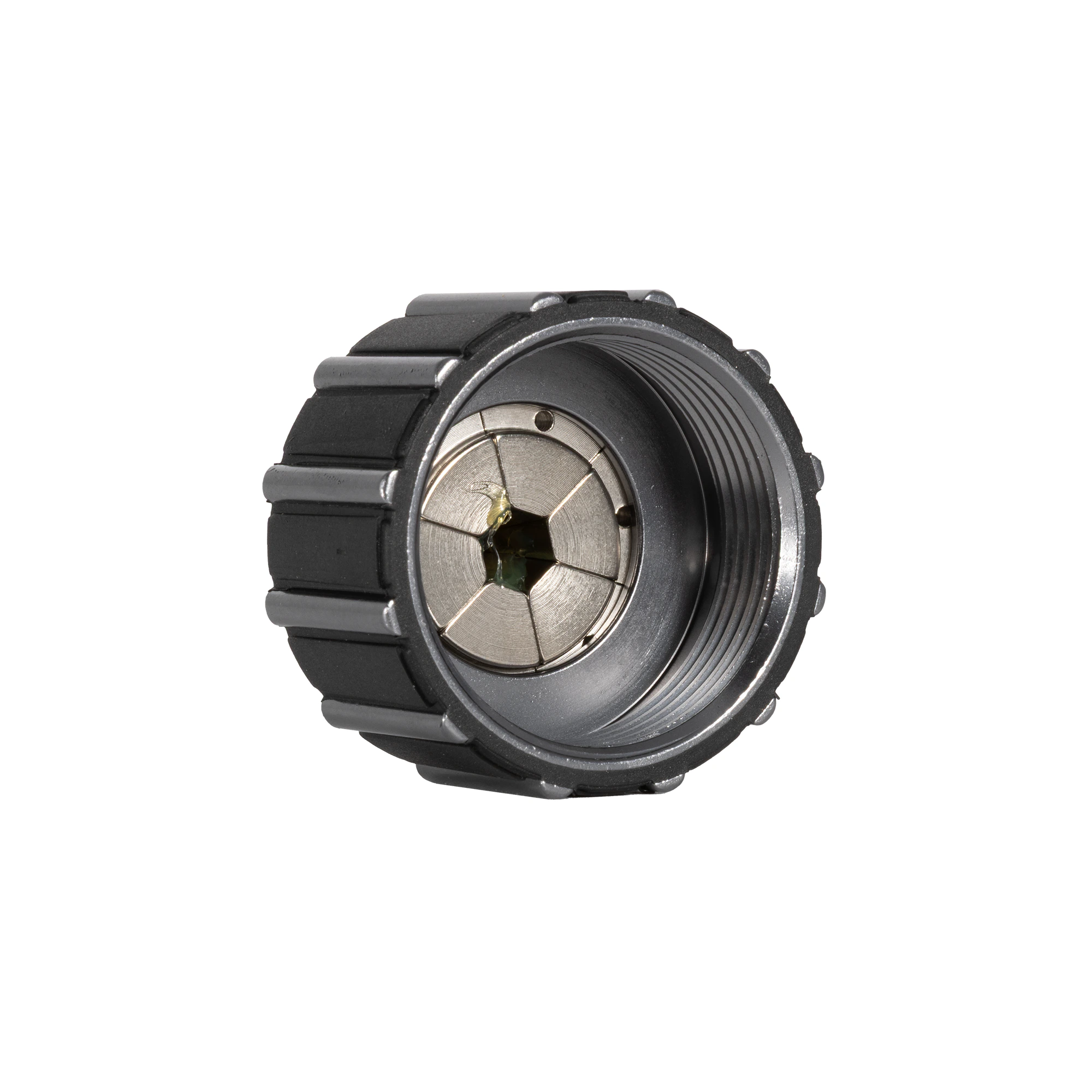

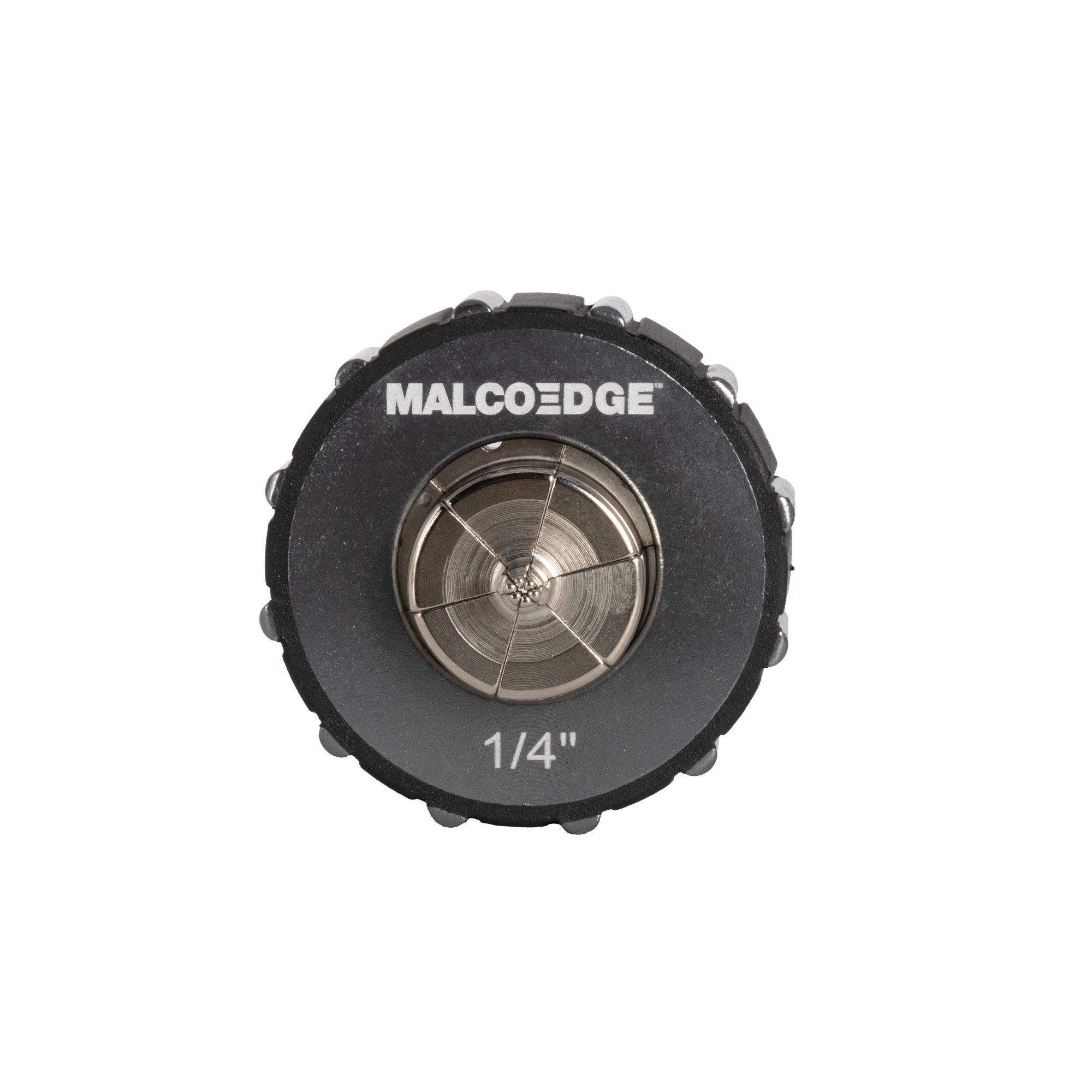

MalcoEdge™ TEH250 Tubing Expander Head
The MalcoEdge™ TEH250 Tubing Expander Head is a precision-machined 1/4-inch expanding head designed for small-diameter copper and aluminum tubing. Ideal for HVAC and refrigeration service, this expander head produces clean, uniform expansions that reduce the need for fittings and brazing. Compatible with MalcoEdge™ TEMS expander tool, it delivers tight, leak-resistant connections in compact installations.
Features
- 1/4″ Expansion Head – Perfect for smaller tubing in mini-split and low-capacity systems.
- Consistent Performance – Produces smooth, burr-free expansions every time.
- Resists wear and maintains shape under pressure.
- Compact head size for confined system access.
- Leak-Resistant Results – Expands tubing for direct connections without couplings.
FAQs
Q: Can I expand tubing without rotating the tubing when using a MalcoEdge Tube Expander? A: No, the tubing or the tool must be rotated to retain a round shape during forming. Otherwise the tubing will be hexagonal as the tubing will follow the shape of the forming head in the expanded position. Q: Can I expand my tubing in one motion? A: No, we recommend you partially expand the tubing then release, rotate, and re-apply pressure multiple times. Applying full expansion in one motion will result in hexagonal tubing and/or cracking. Q: Is tubing measured on the outside or inside diameter of the product? A: Tubing is measured on the outer diameter of the tube.
