Pipelounge® by Malco 12″ Pipe Support– Modular Multi-Pipe Support System for HVAC Line Sets (PL12)

0 Reviews | Write a Review

The Where To Buy map requires marketing cookies to be accepted. Please change your cookie preferences by clicking here and accepting cookies.

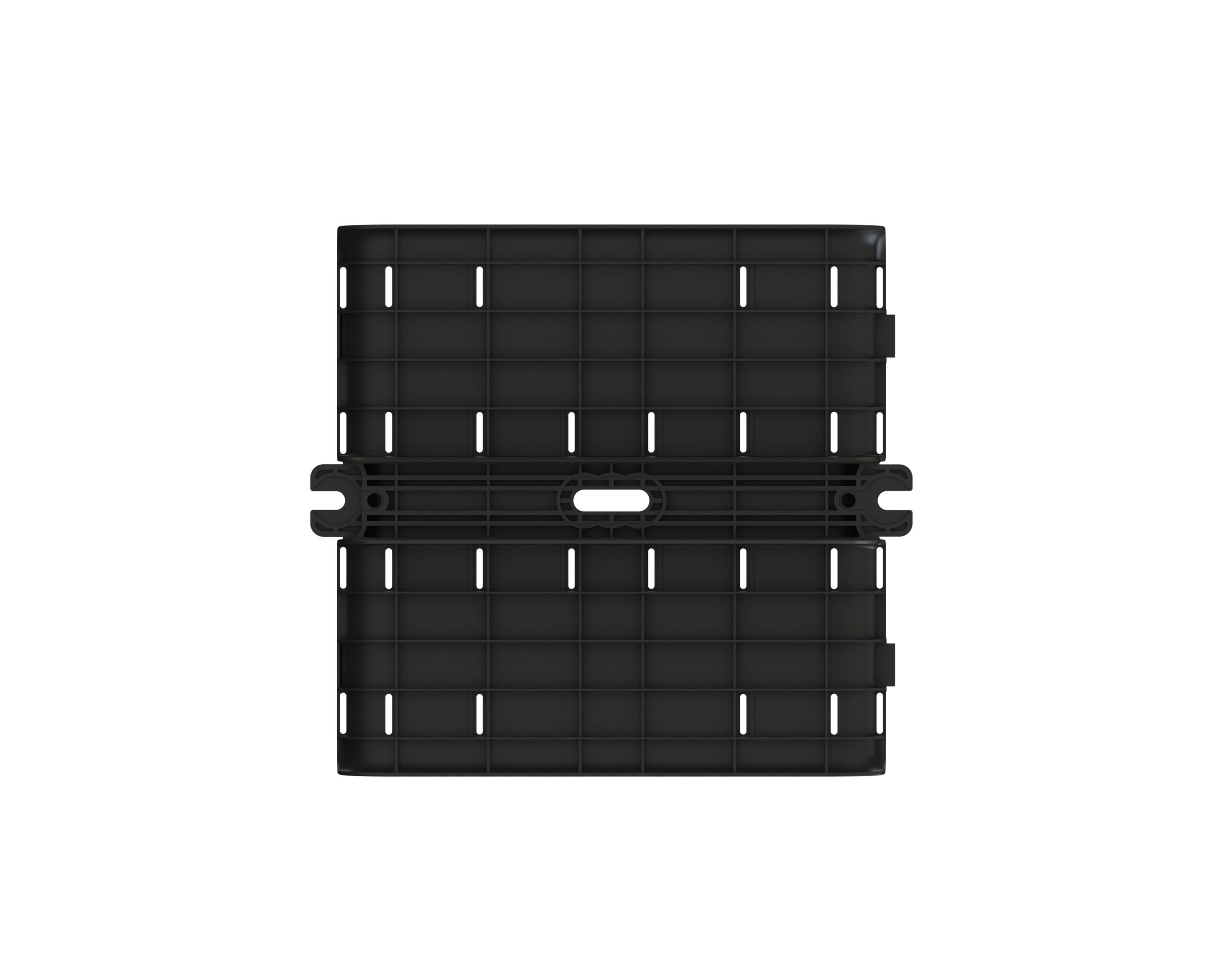

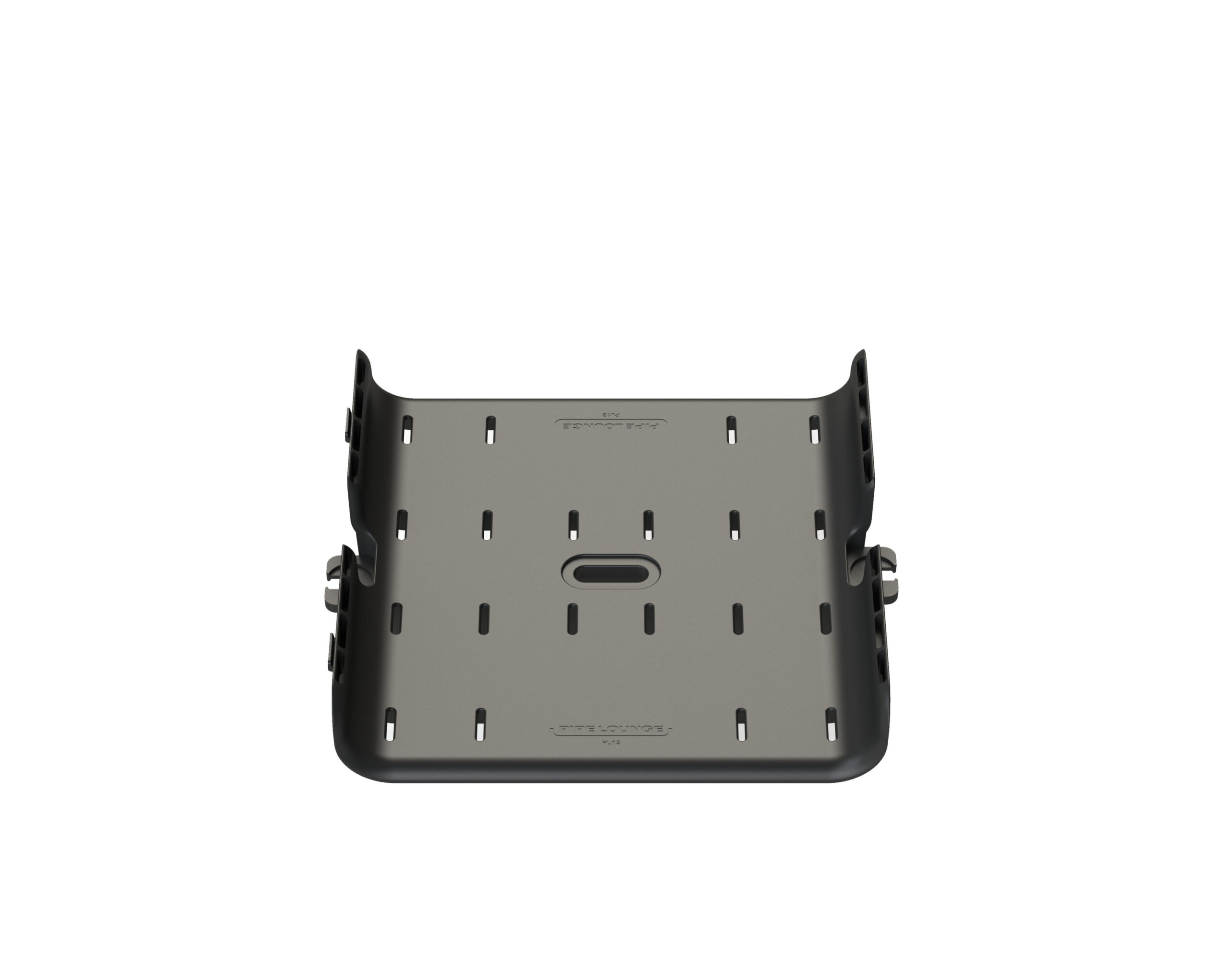

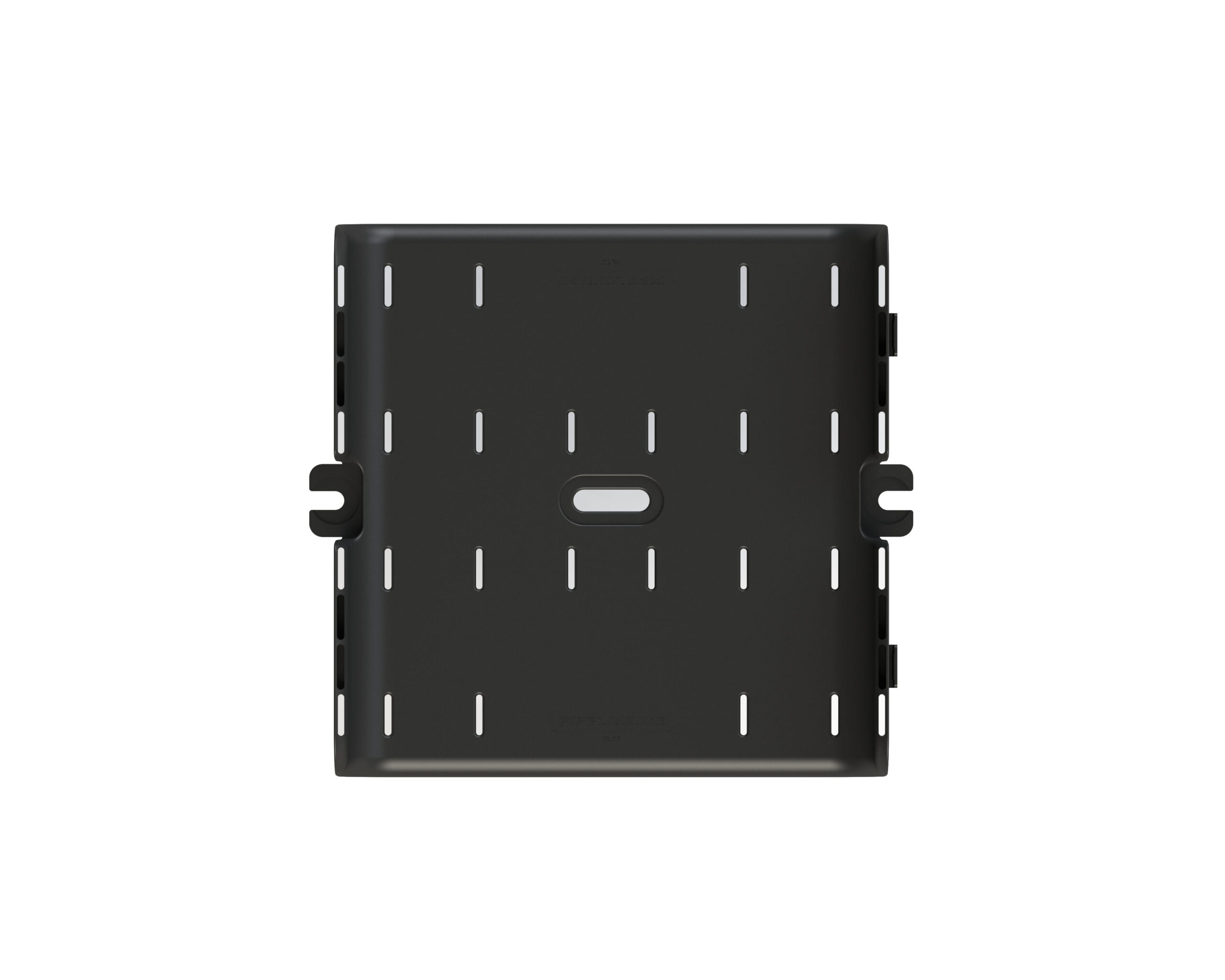

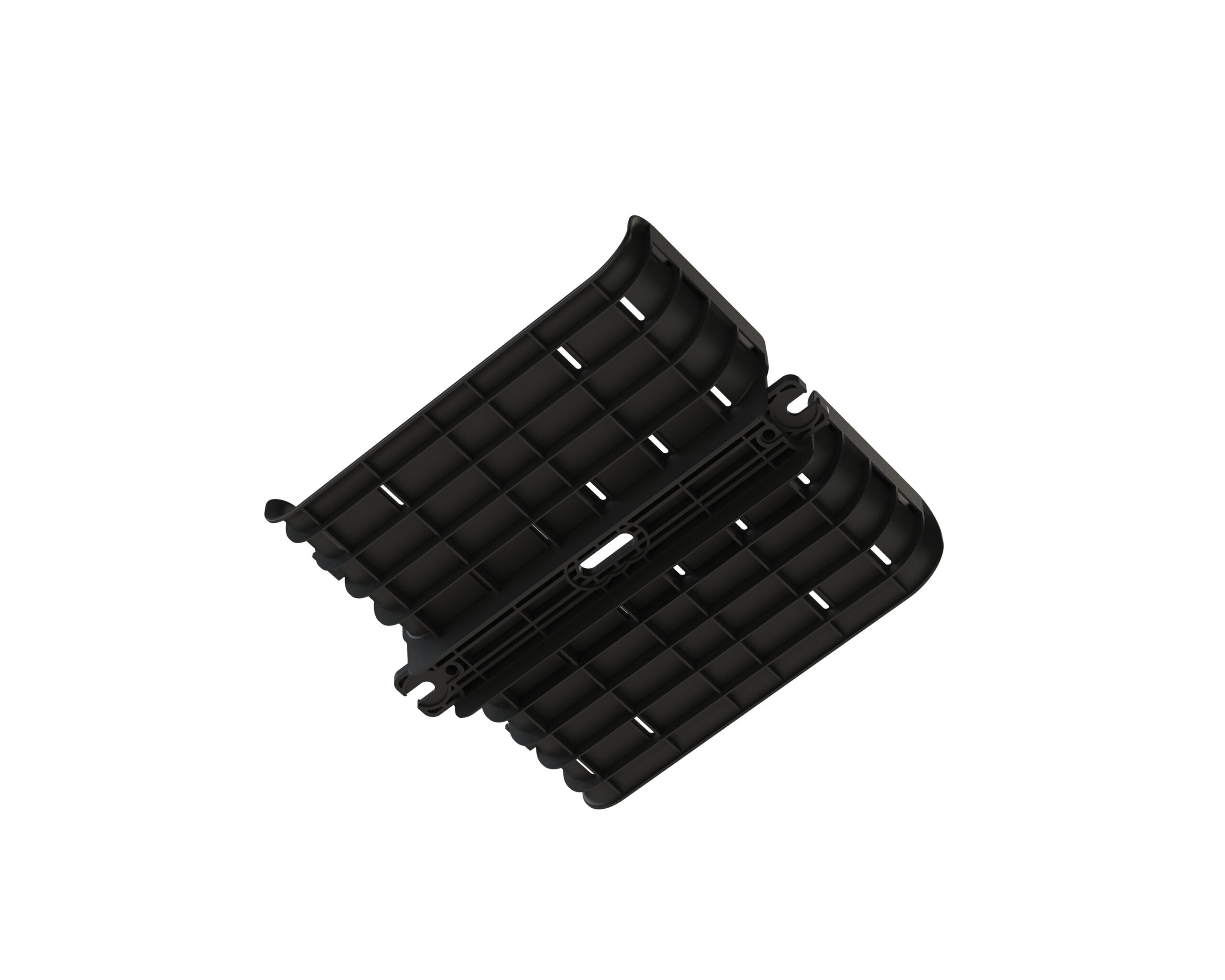

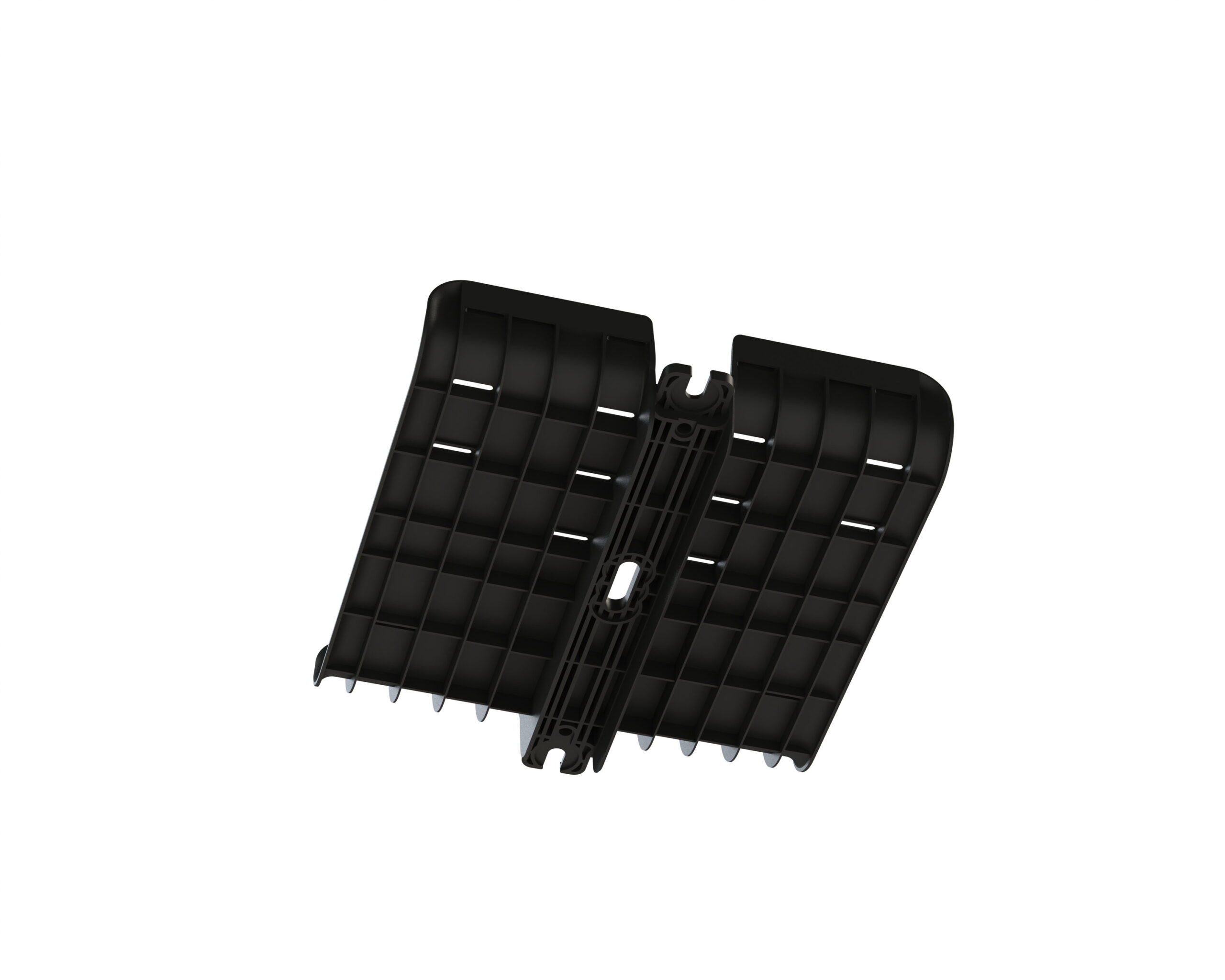

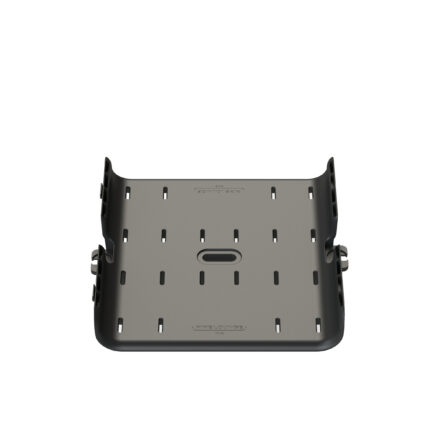

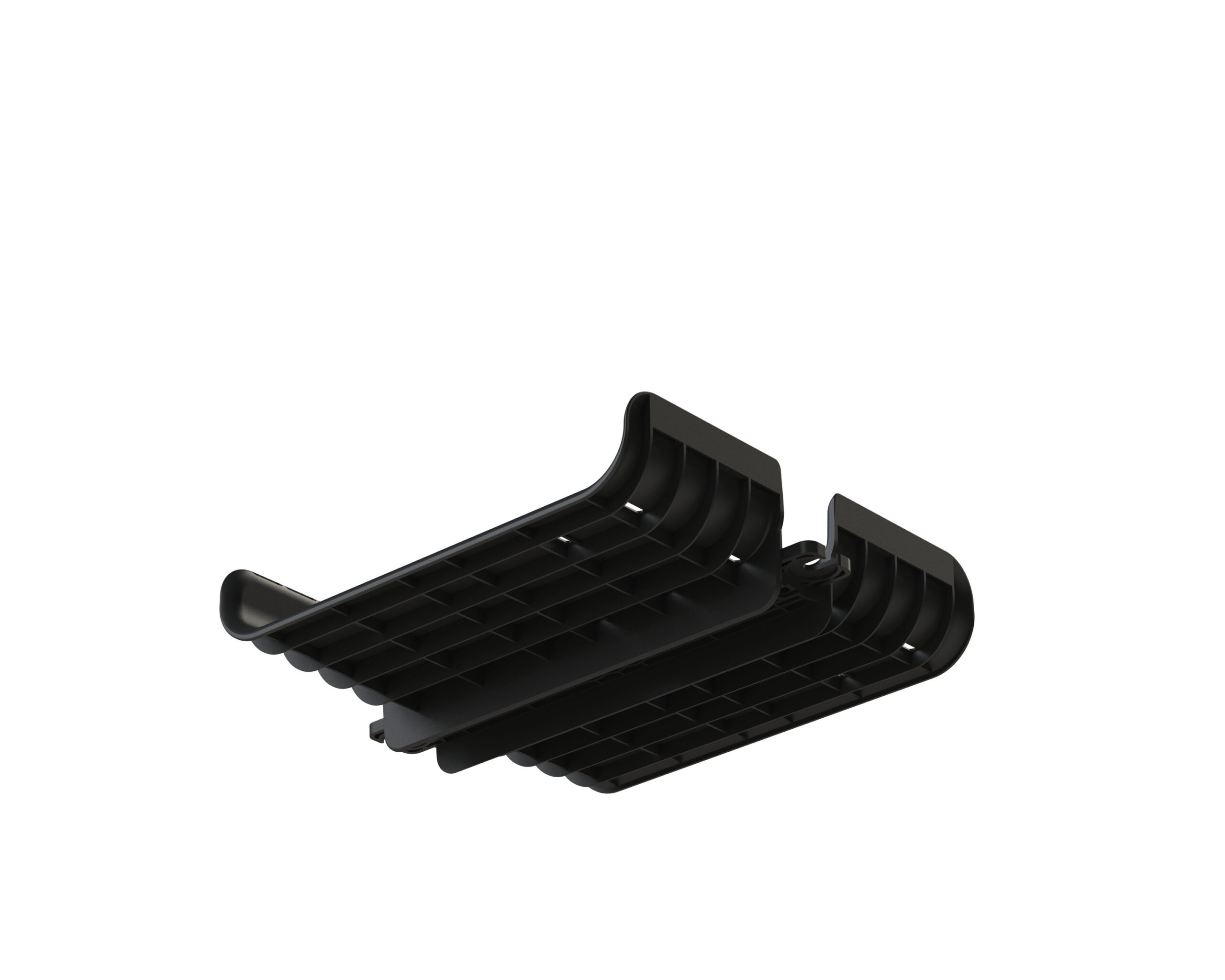

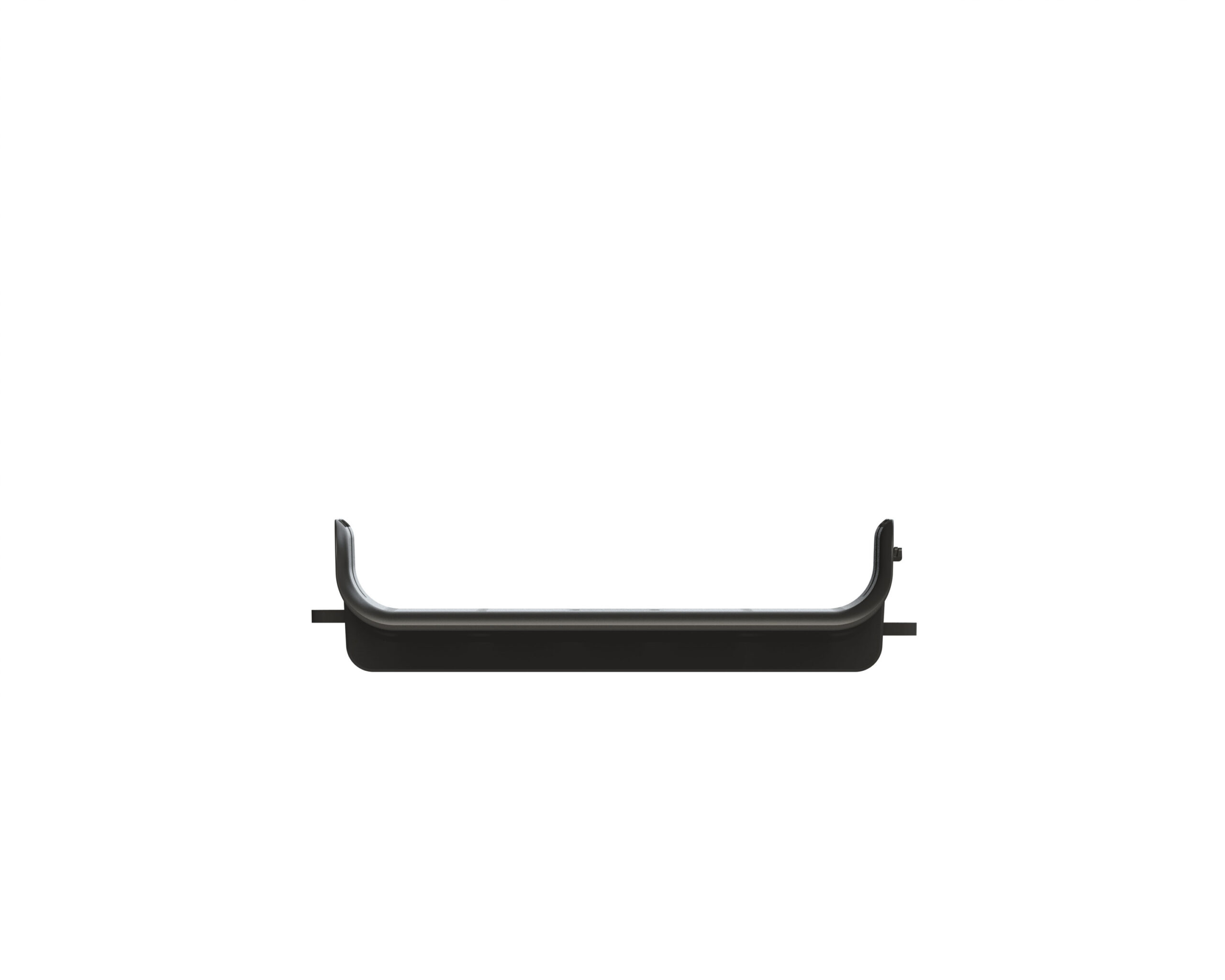

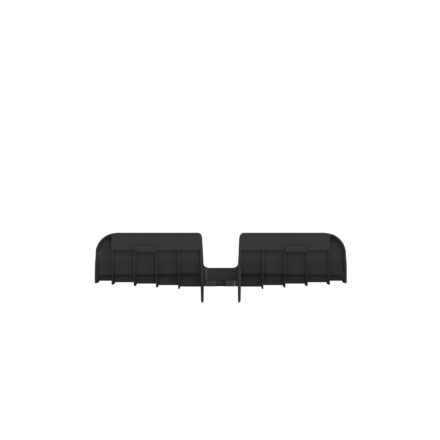

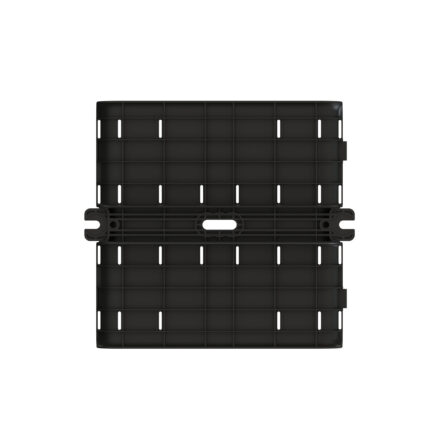

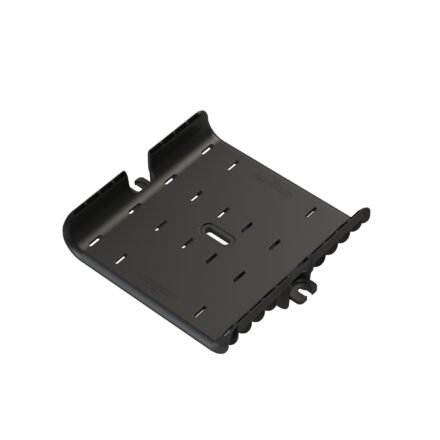

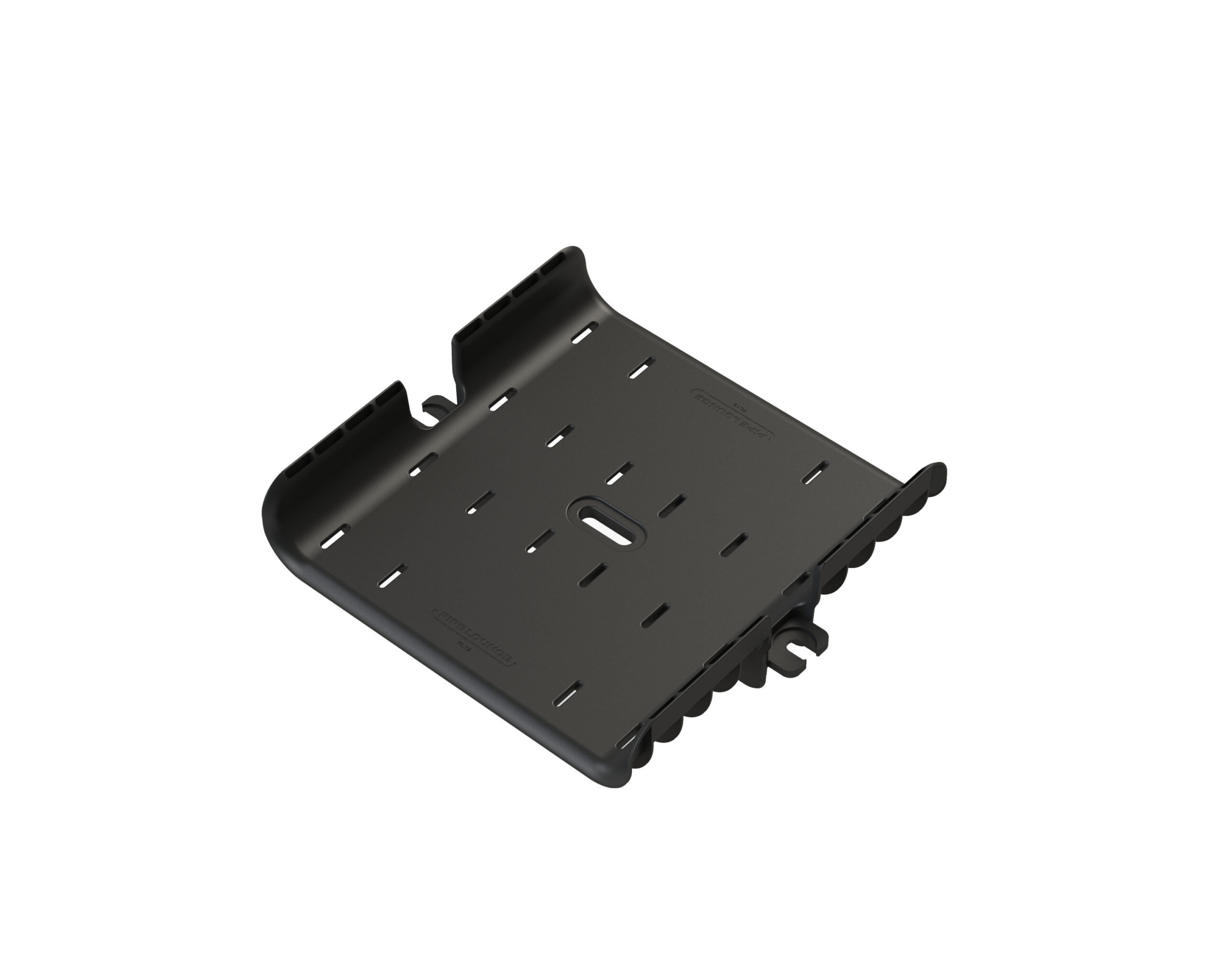

The Pipelounge® by Malco PL12 12″ Pipe Support is a modular support system designed to hold multiple insulated HVAC line sets while allowing for expansion and contraction. It cushions pipes to help protect insulation and maintain proper alignment over time.

The system reduces installation complexity by eliminating the need for multiple strut components and specialized supports. Its modular design allows supports to be stacked or joined to accommodate different pipe sizes and configurations, helping reduce material use, labor time, and inventory requirements.

Rated to support up to 110 lbs without strut. Installation uses standard 3/8″ threaded rod and mounting hardware and follows conventional mounting practices. Supports should be spaced according to applicable codes or project specifications, with weather protection added for exposed installations.

Designed for efficiency and adaptability, Pipelounge provides a practical alternative to traditional pipe support methods for HVAC and mechanical applications.

Features

Modular and stackable design
Tough, UL 94 V-0 fire-resistant construction
No need for strut
Saves time and money
Multiple size and width options to match different load requirements and project conditions
Space-saving installation
Retro-fit applications

FAQs

Q1
What is PipeLounge?
⌄

PipeLounge is an innovative multiple pipe support system that requires no strut. It has been designed to cushion pipes and accommodate the natural expansion and contraction of insulated pipe.

Q2
Can PipeLounge support more than insulated refrigerant lines?
⌄

PipeLounge was developed specifically for HVACR insulated refrigerant lines. Malco has not evaluated this product for other applications.

Q3
How do PipeLounge pieces connect together?
⌄

PipeLounge pieces can be connected horizontally using Joining Clips for additional width. They can also stack vertically when space is limited.

Q4
What loads can PipeLounge support?
⌄

The maximum load without metal section support is 110 lbs. For loads exceeding 110 lbs., a standard metal section must be fitted on the underside of PipeLounge. A metal section is also required when joining units horizontally.

Q5
When should I use packers and joining clips?
⌄

Packers: Used when installing PipeLounge on strut. They sit between the strut and the PipeLounge high side mounting tab to ensure a secure mount. Their bright color helps installers confirm the installation is complete.

Joining Clips: Used when joining two or more PipeLounge brackets horizontally on strut. They help keep the brackets aligned while positioning them into their final location.

Q6
How far apart should I mount PipeLounge along the length of my install?
⌄

PipeLounge should be placed at maximum intervals of 5′ (60″) along the length of the supported pipework, and no more than 8″ from each change in direction.

Q7
Are specific nuts required to install PipeLounge?
⌄

Flange nuts, or a nut and washer combination, are recommended above and below the installed PipeLounge.

Q8
What size threaded rod is required to install PipeLounge?
⌄

3/8″ threaded rod is required.

Q9
What material is PipeLounge made of?
⌄

PipeLounge is made of PC/ABS, a non-halogenated, flame-resistant material.

Q10
Are PipeLounge products plenum rated for the 25/50 smoke rating requirement in return air spaces?
⌄

No, PipeLounge products are not currently plenum rated. However, they are made of non-halogenated (non-toxic) PC+ABS material and meet UL94 classification.
