Nail Hole Punch, Vinyl

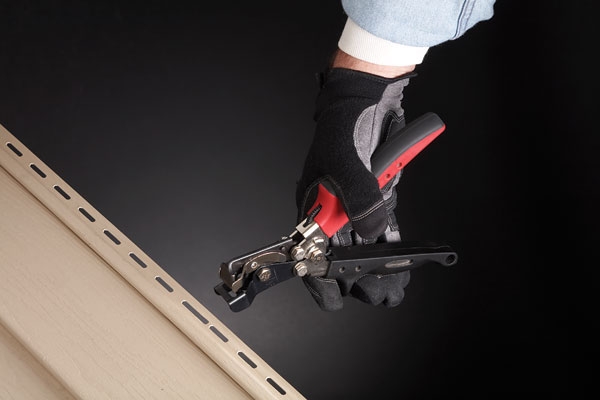

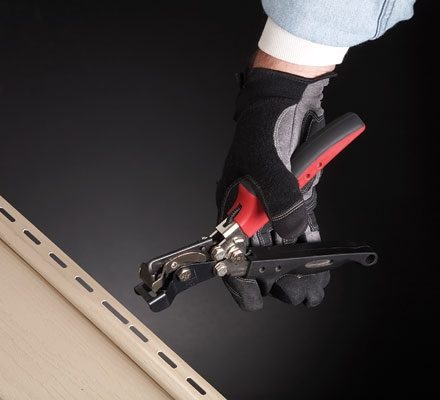

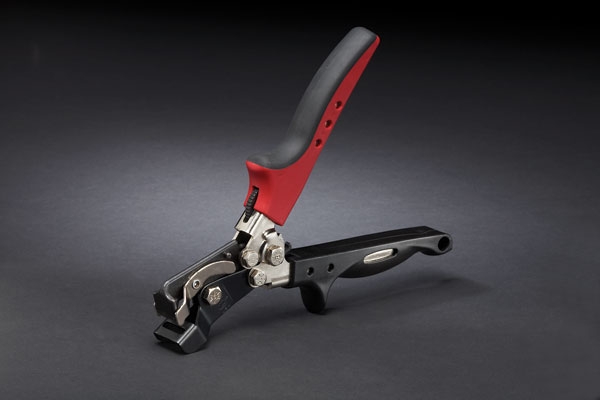

The NHP1R Punch makes a generous 5/32 x 3/4 in. (4.0 x 19.1 mm) horizontal slot for adding or elongating nail holes in vinyl and .019 in. (0.48 mm) aluminum siding to accommodate irregular stud spacing.  Constructed of hardened steel stampings and rugged investment cast alloy steel jaws with rust-resistant nickel plate and black oxide finishes to ensure long service life.

The Malco NHP1R Nail Hole Slot Punch also features ergonomic RedLine Handle technology.  An Engineered handle opening compliments the natural power stroke of any user’s hand and maximizes the powerful 7:1 mechanical advantage of compound-leverage head to handle linkage.  Comfortable handle grip contours, a non-slip grip insert, spring handle actuation and a thumb-operated handle latch ensure a natural fit and feel for comfortable one hand operation anywhere on the job.


  • Add or elongate nail holes in vinyl siding to accommodate stud spacing.
  • Generous horizontal 5/32 x 3/4 in. (4.0 x 19.1 mm) nail slot.
  • Compound leverage produces 7 to 1 mechanical advantage.
  • Ergonomic Redline Handles won’t wear you down.




My Review for Nail Hole Punch, Vinyl

  • This field is for validation purposes and should be left unchanged.



works like it should

Didn't use as much I I thought I would, but I'll keep it for other projects with .045 and thinner plastic.

Ryan Devusser


Got the job done. Was using a different size that wasn't working too well. Found these and that was the trick.
