Malco® Duct Board Square, 90° Locking HVAC Layout Square – DTSQ

0 Reviews | Write a Review

The Where To Buy map requires marketing cookies to be accepted. Please change your cookie preferences by clicking here and accepting cookies.

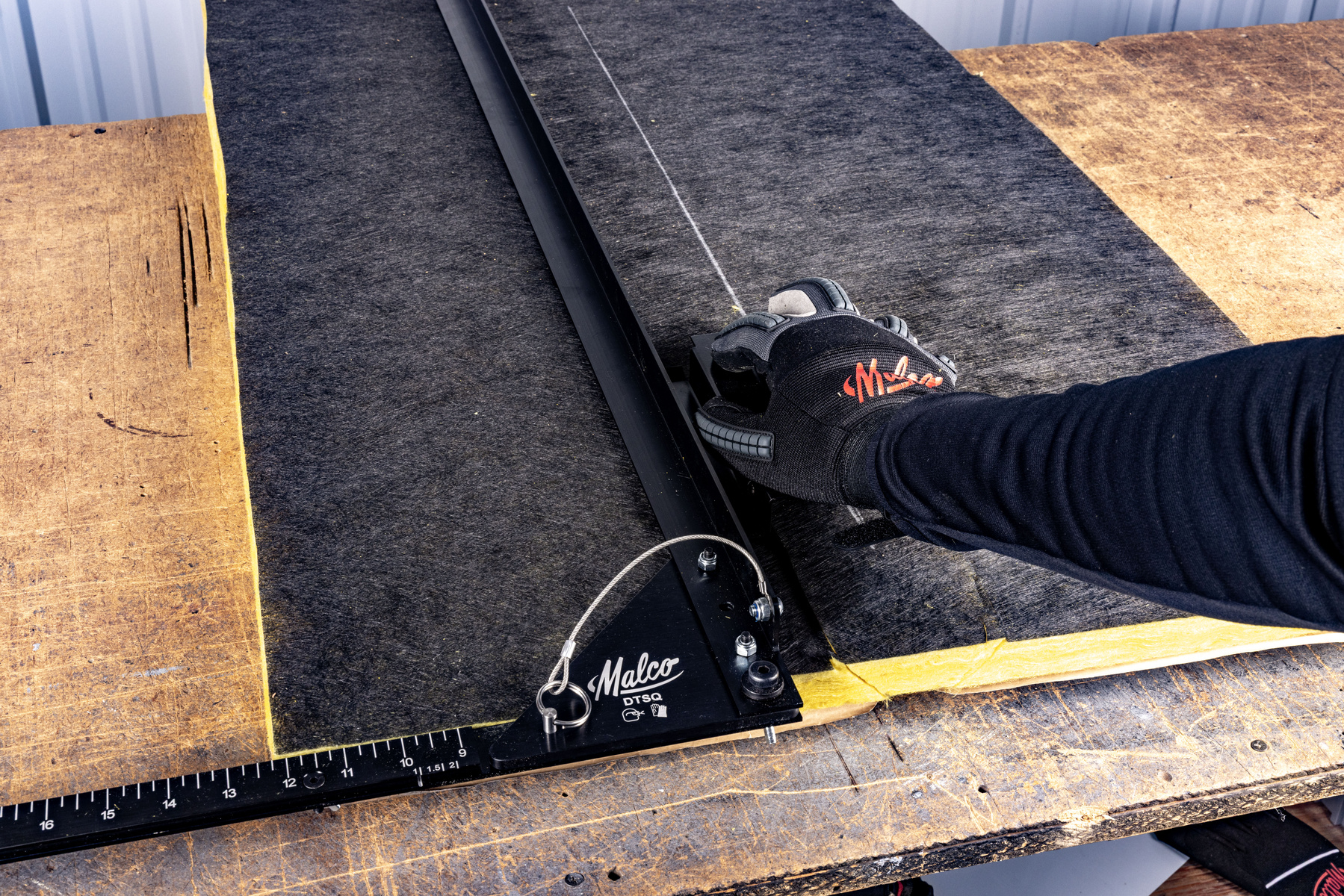

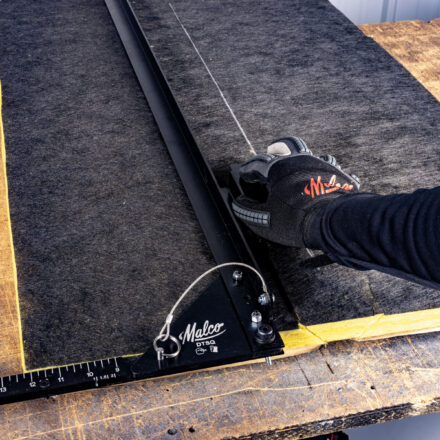

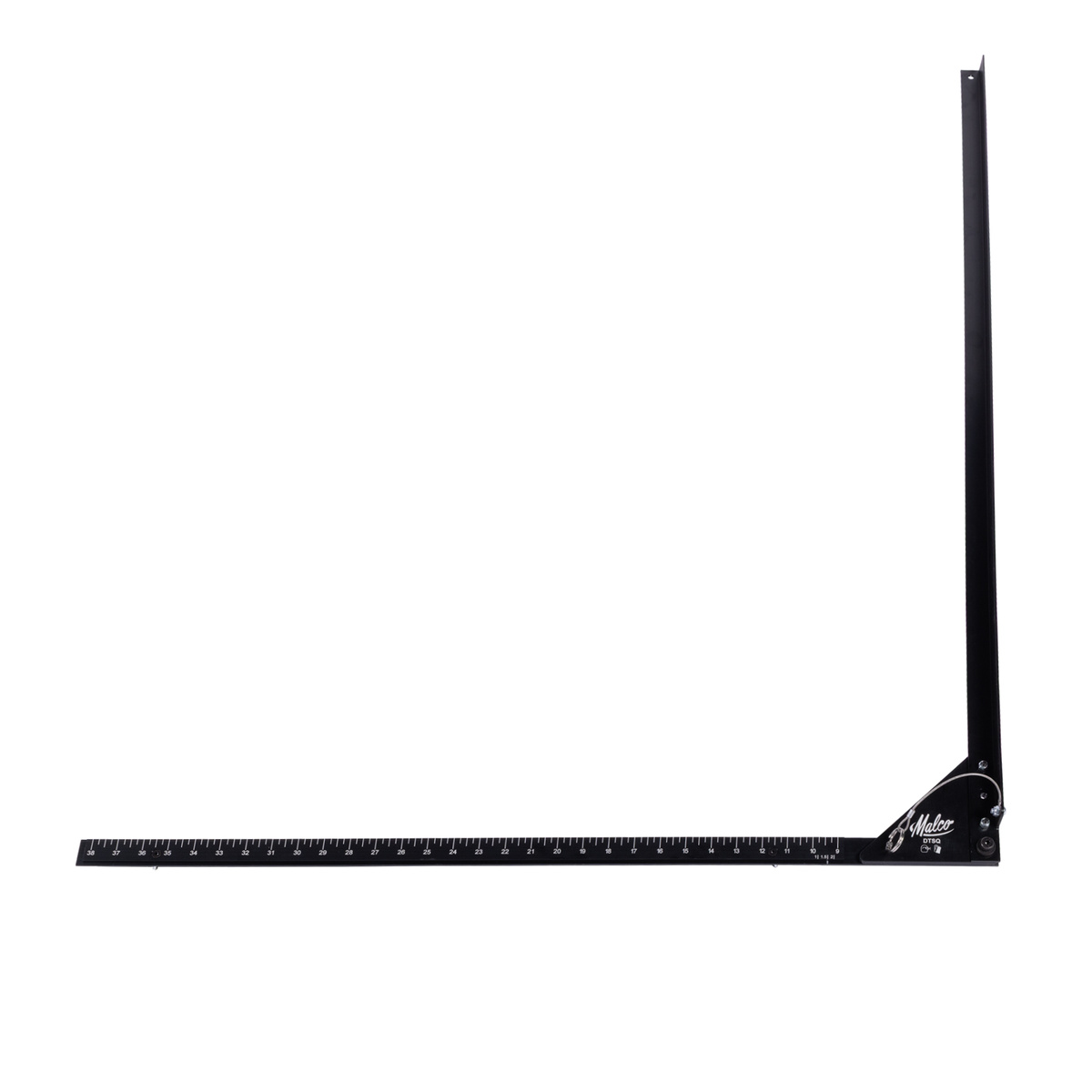

The Malco Duct Board Square is purpose-built to help HVAC professionals measure, mark, and cut duct board with precision and confidence. Designed to work seamlessly with Malco duct board cutting tools, this layout square simplifies setup and improves consistency—so you can move faster without sacrificing accuracy.

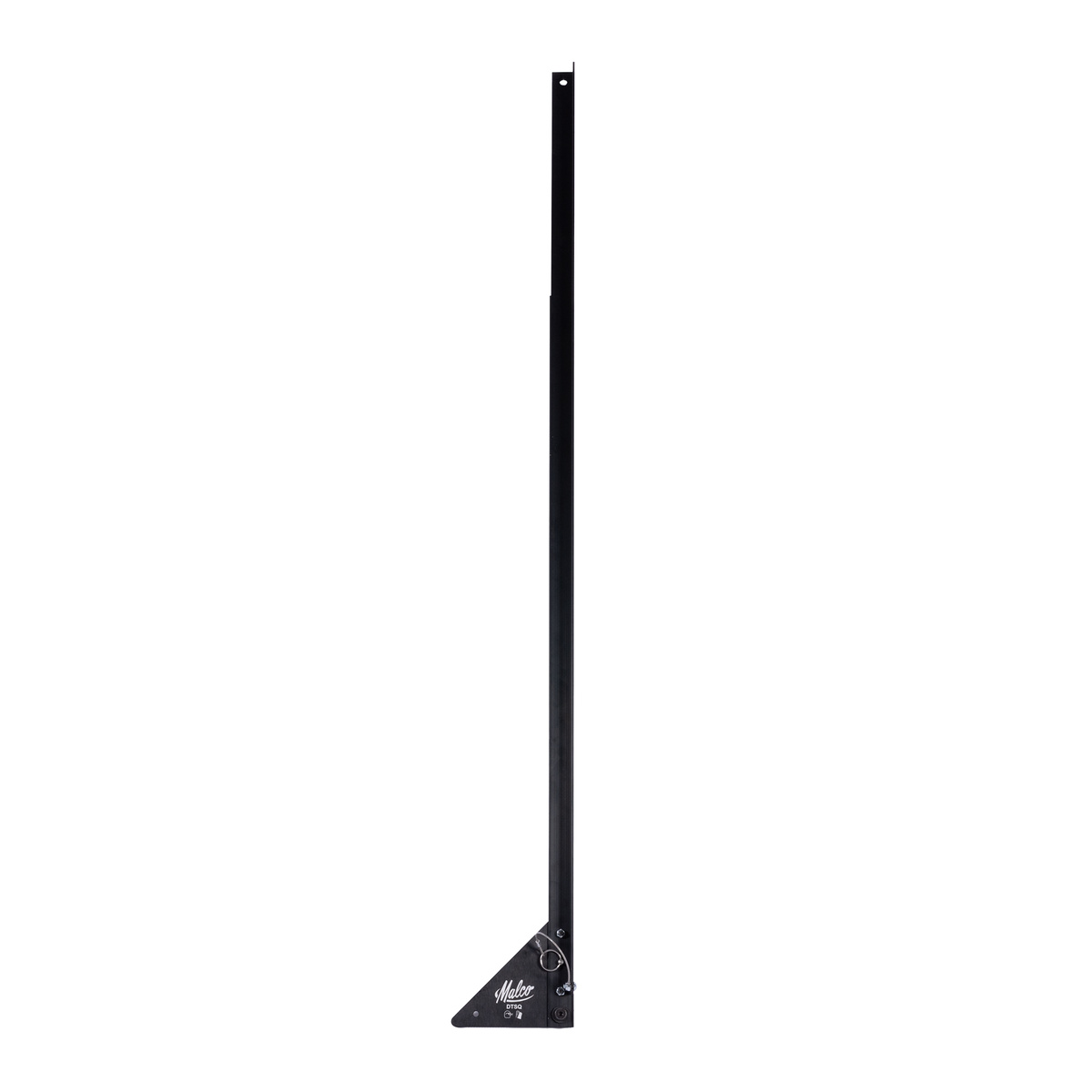

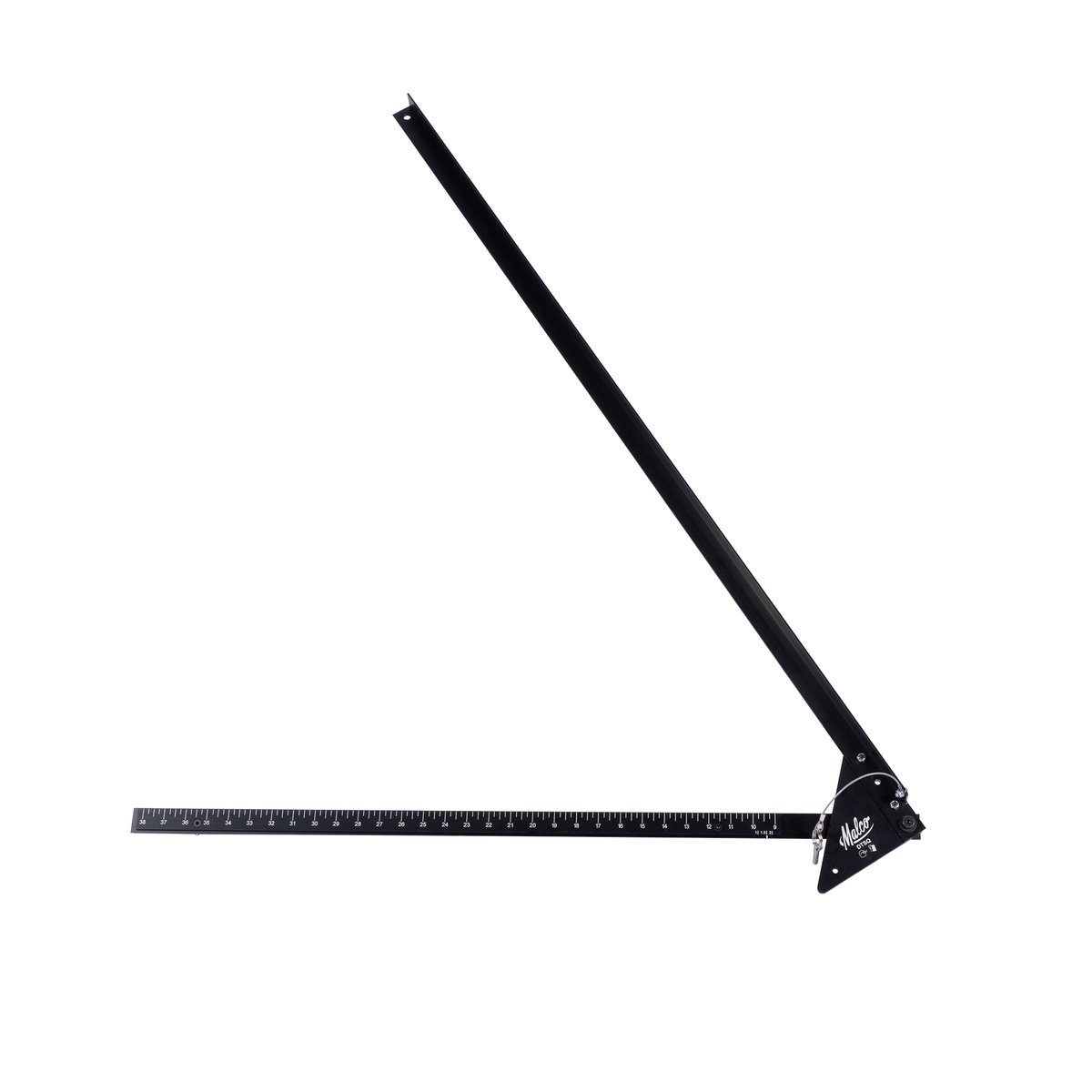

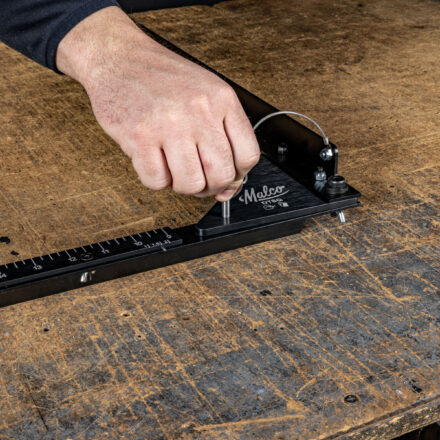

The DTSQ locks securely into a 90° open position for quick, reliable layout. When the job is done, it folds closed for compact storage in your bag or van. An integrated adjustable material thickness scale aligns with Malco’s three duct board cutting tool sizes, making it easy to match layout marks to your material thickness for clean, professional cuts.

Constructed from rigid, lightweight aluminum, the DTSQ withstands jobsite conditions without adding unnecessary weight to your kit. Whether you’re fabricating in the shop or cutting on-site, this tool helps reduce guesswork and improve efficiency, keeping your installations clean and consistent from start to finish.

Built for the trades. Designed for real HVAC performance.

Features

Features

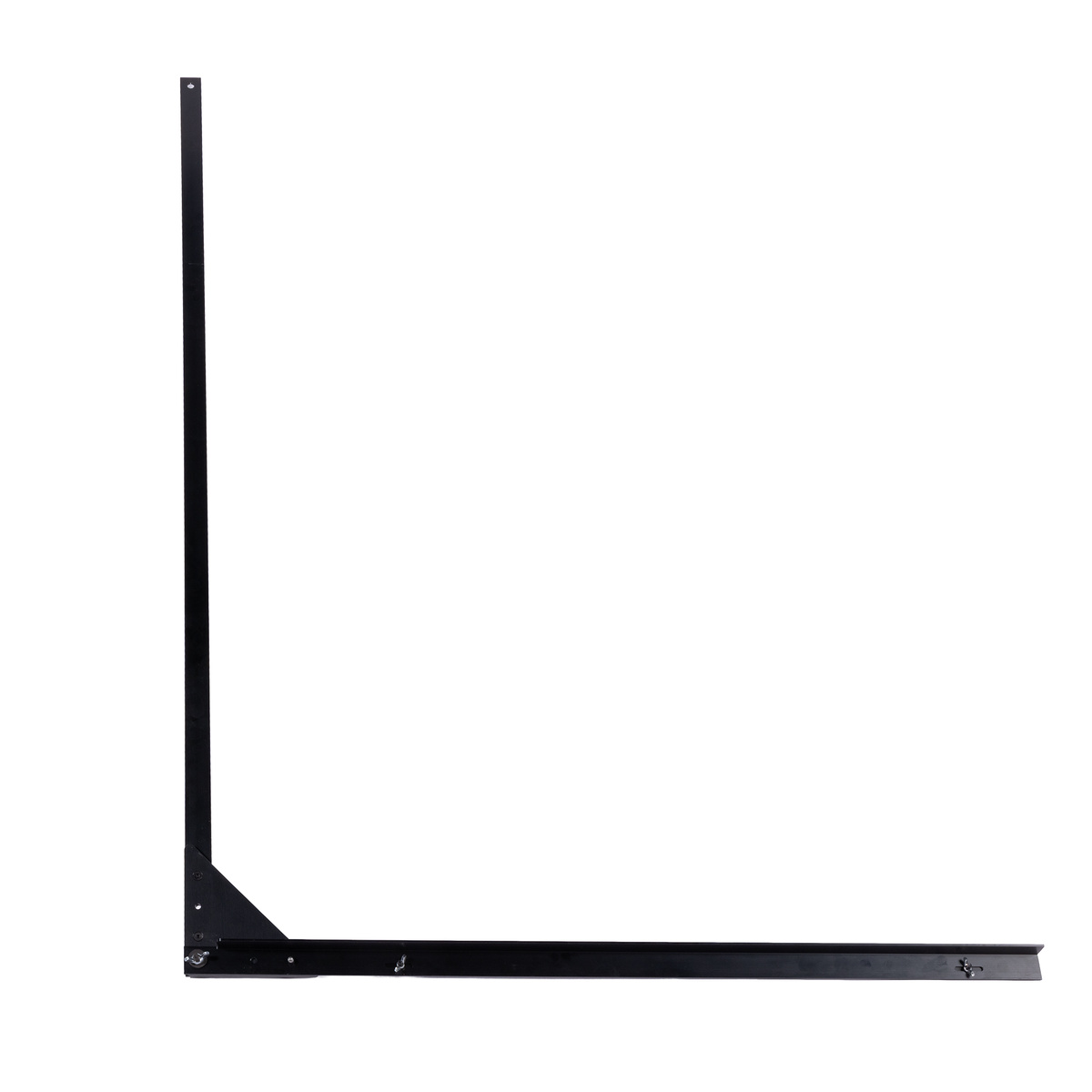

  • 90° locking square for fast, accurate setup

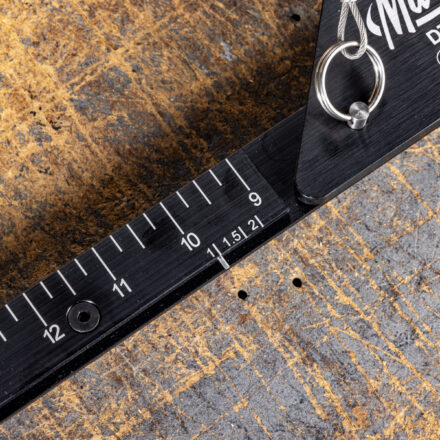

  • Adjustable material thickness scale for precise layout
  • Designed to work with Malco duct board cutting tools
  • Lightweight aluminum build
  • Folds closed for compact stoarage

FAQs

Q: Why do I need to adjust the scale on the DTSQ?
A: Adjusting the scale to the correct setting based on the Malco duct
board cutting tool you are using simplifies the offsets required to layout
the duct work.
Q: Can I layout lines for the side of the duct board cutting tools with the DTSQ?
A: If you prefer to layout the side of the tool, you will need to use the offsets
advertised with the duct board cutting tools, using a tape measure rather than
the scale at the base of the tool.
Q: Can the DTSQ and offset table work with competitor tools?
A: No, the scale and offset table for the DTSQ are engineered to work with the
Malco Duct Board Tools. We would recommend using the tool as a square only
in this situation using a tape measure to layout cut lines.

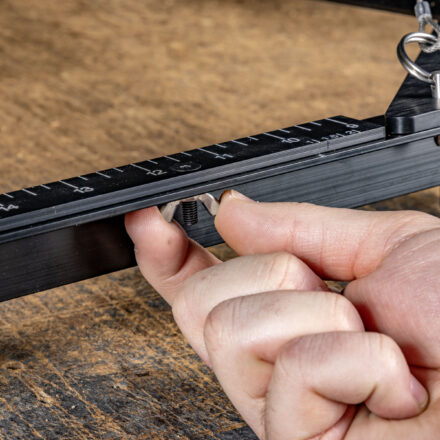

Q: I lost the wing nuts for my DTSQ, what size wing nuts do I need to replace them with?
A: We recommend locally sourcing replacement wing nuts with a 10-24 thread.
