Power Assisted Metal Seamer, 2″ FSXS2

0 Reviews | Write a Review

The Where To Buy map requires marketing cookies to be accepted. Please change your cookie preferences by clicking here and accepting cookies.

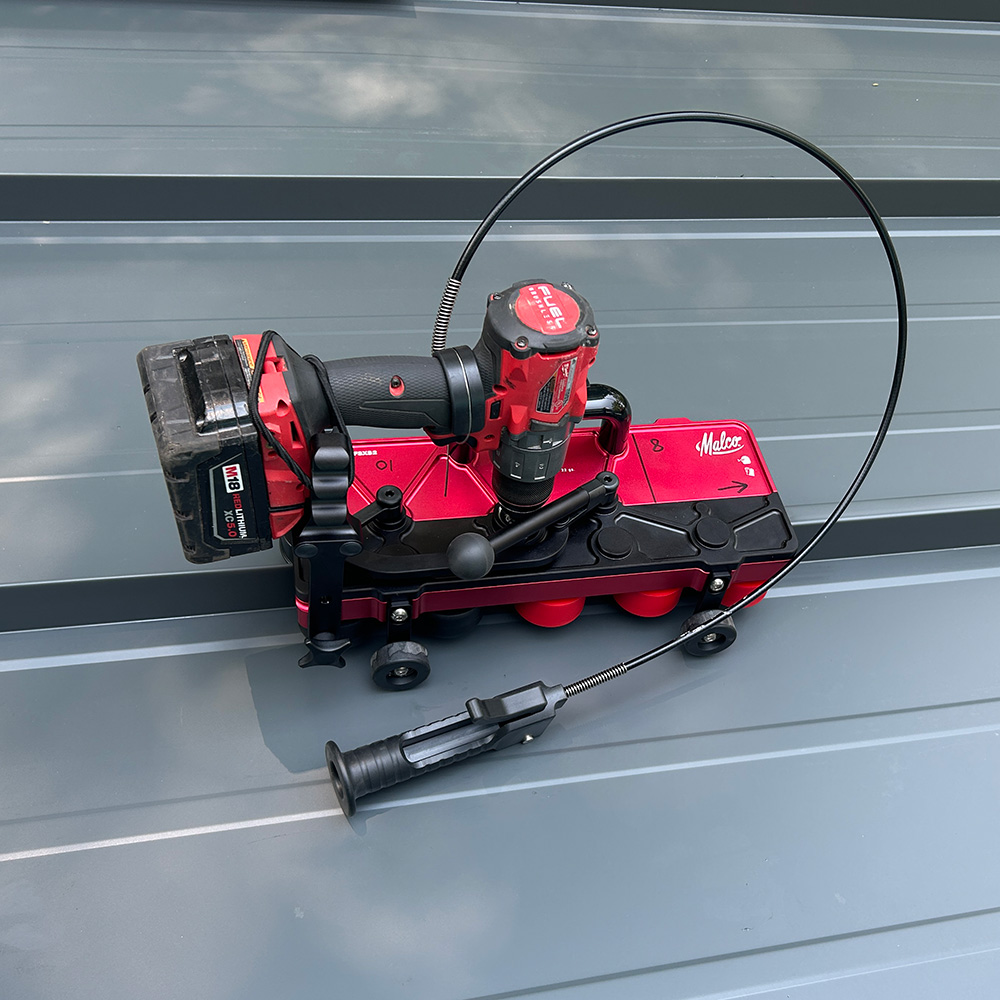

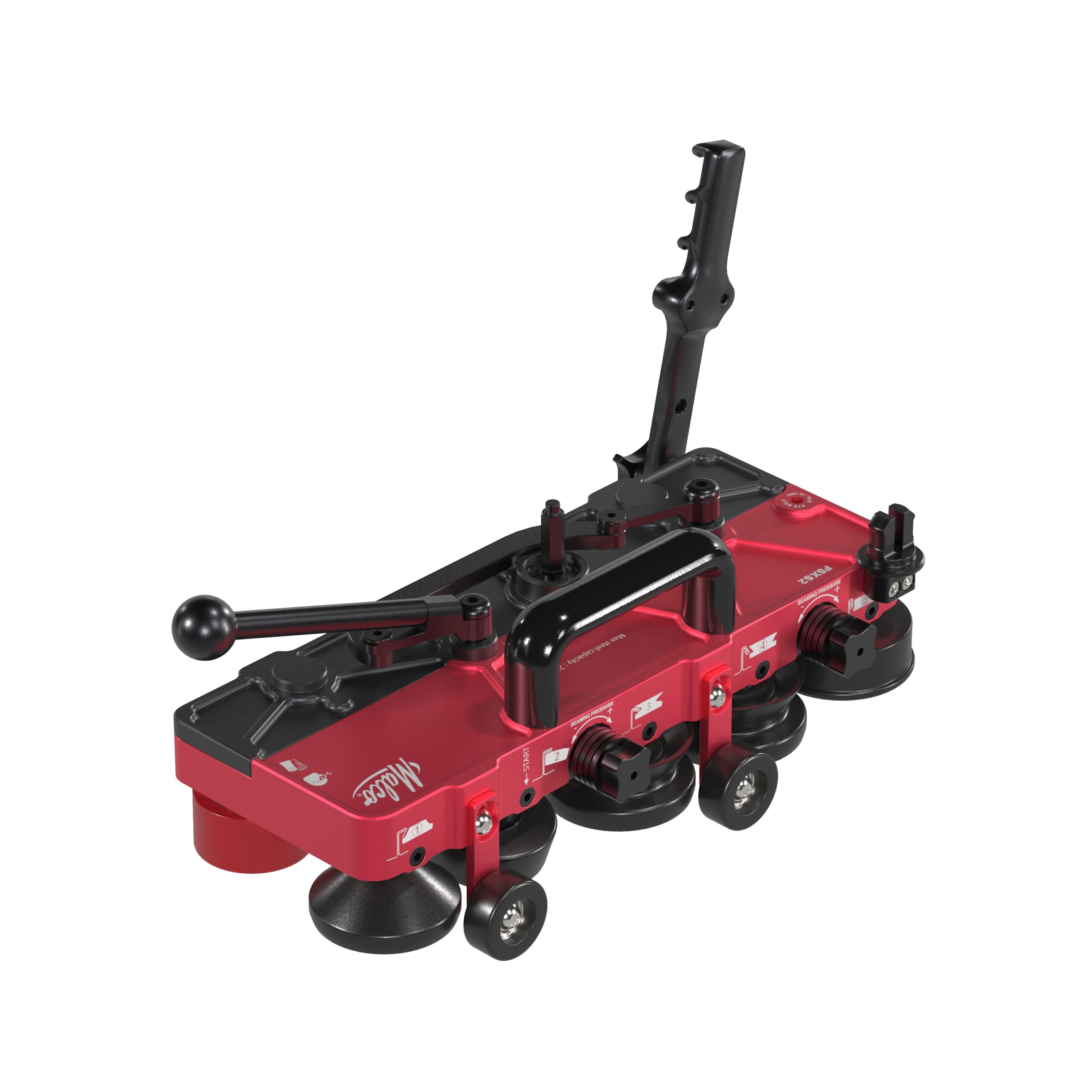

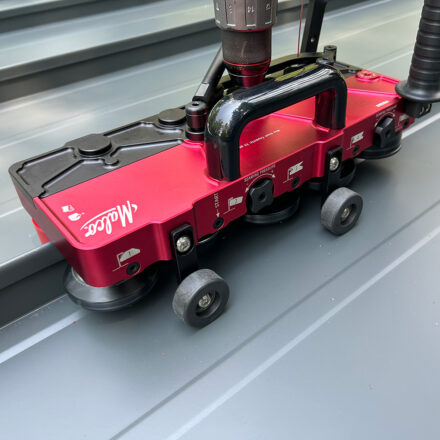

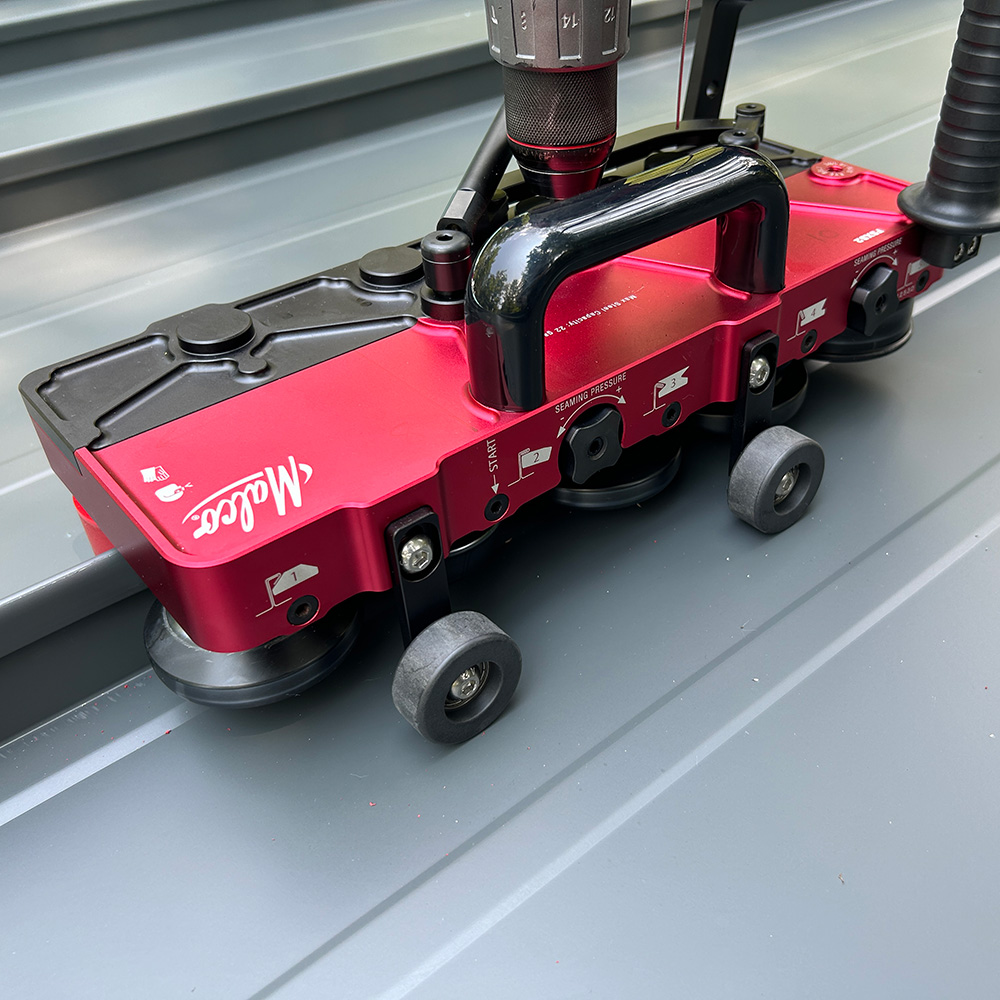

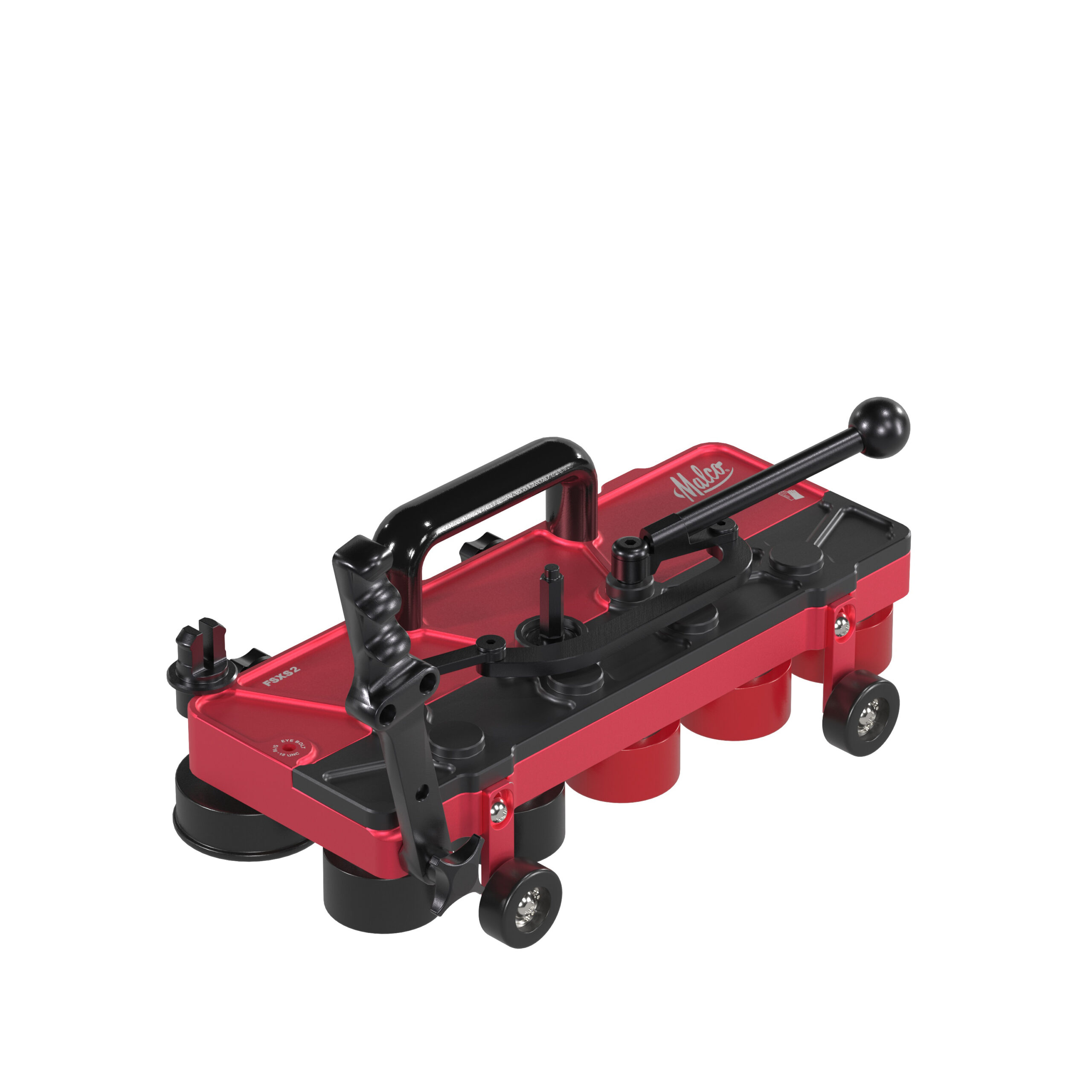

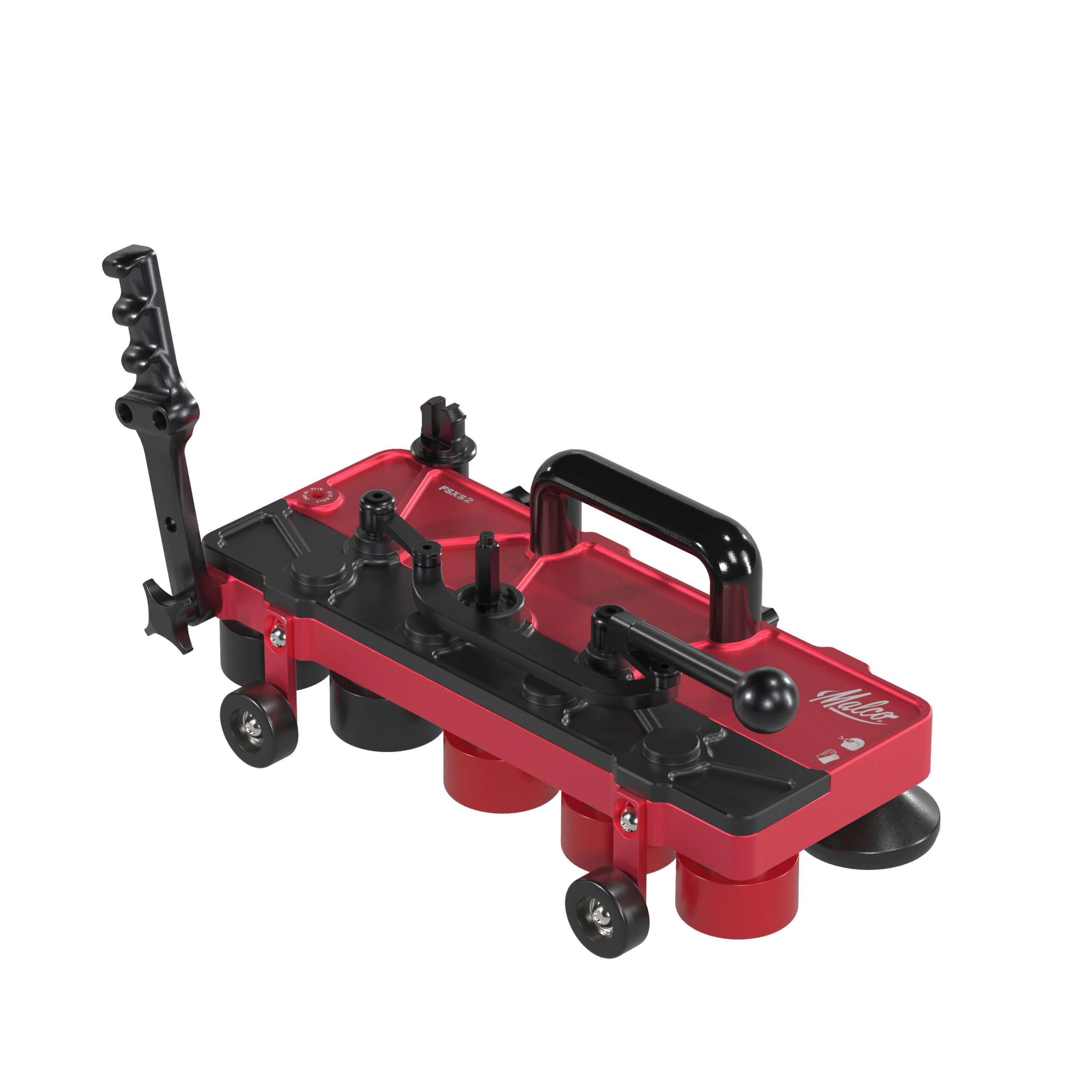

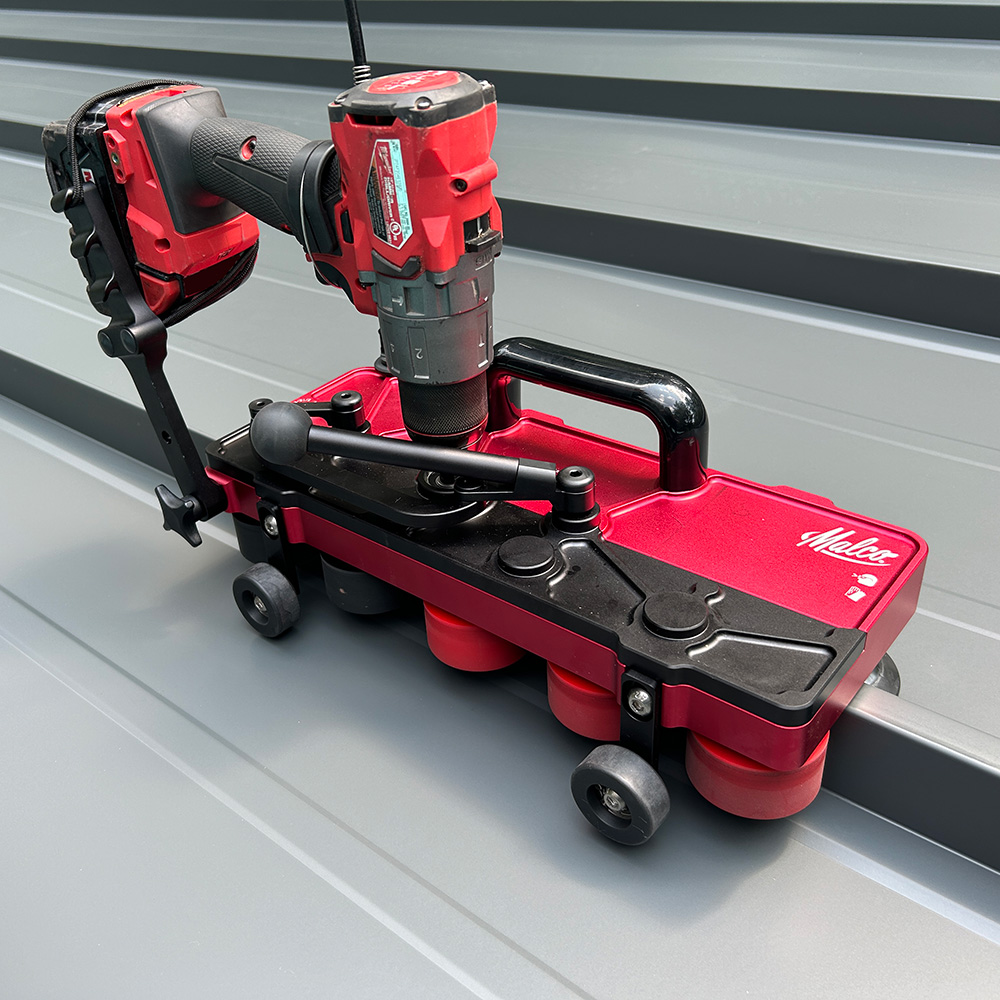

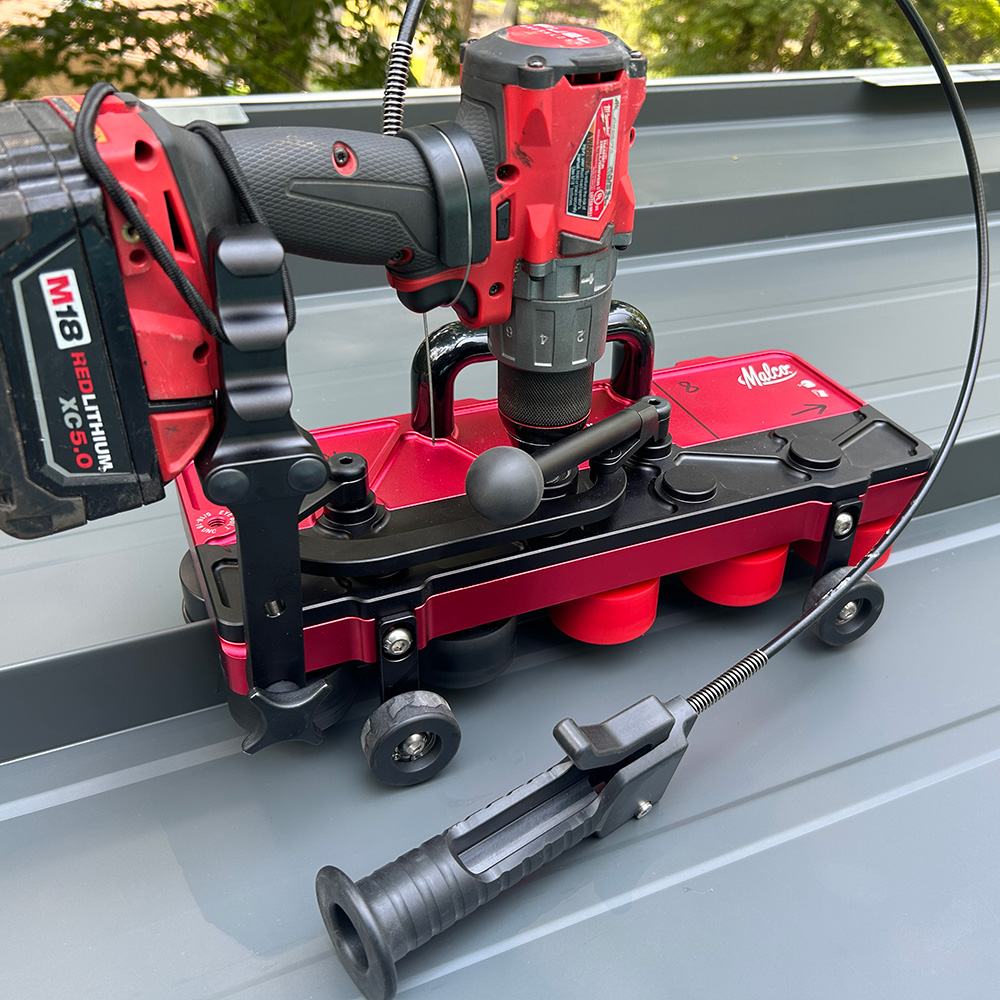

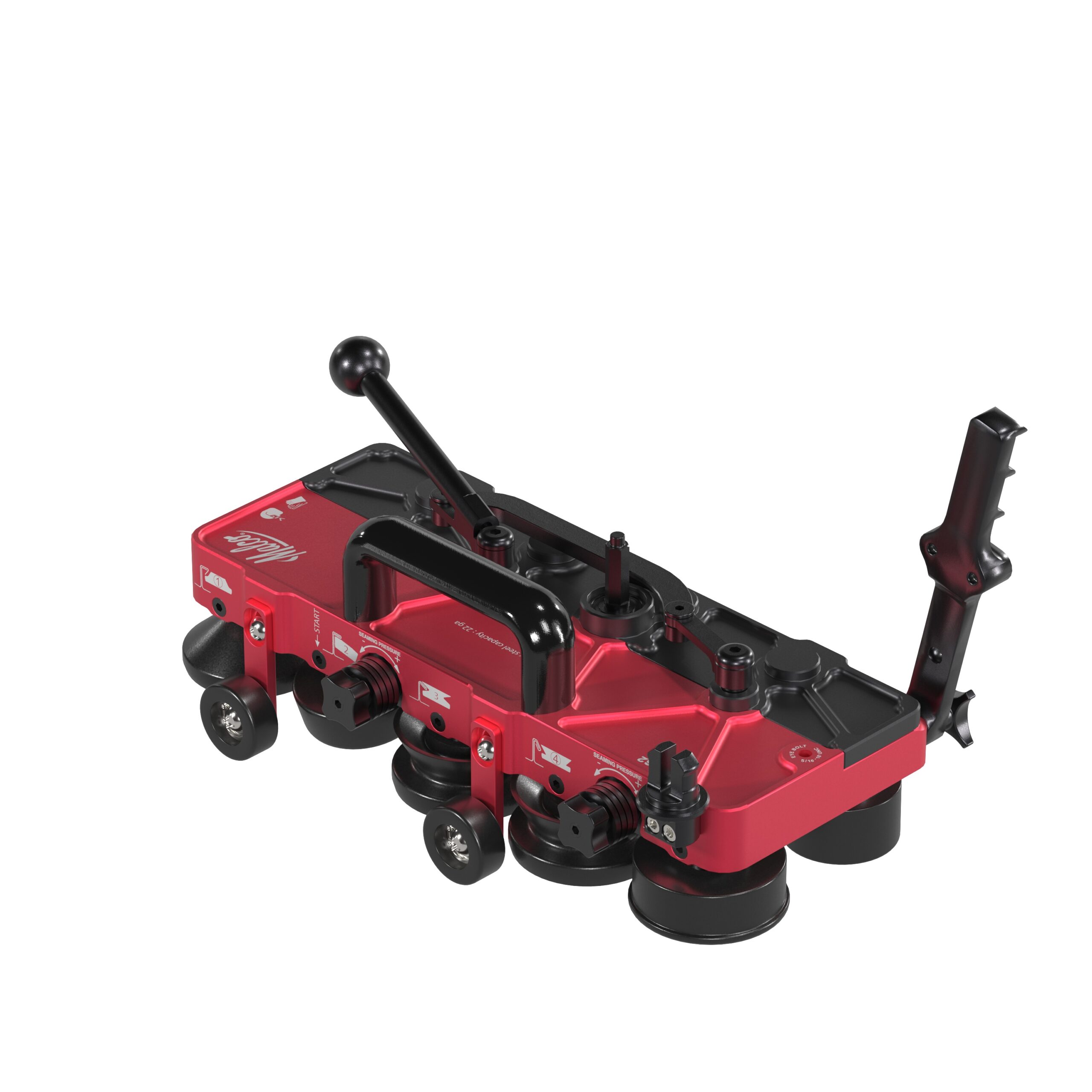

Malco’s power-assisted seamers are the fastest seaming machines on the market, making them the perfect hand-held equipment for effortless seaming. Similar to the FSXS, the FSXS2 is used to mechanically seam panels on standing seam installs. Please note that the 2 inch seamer will only do a 2-stage lock. Users will also notice a blind hole for a tether, which allows users to tie off the tool as a precaution. Simply attach the power-assisted seamer to your cordless drill and go.

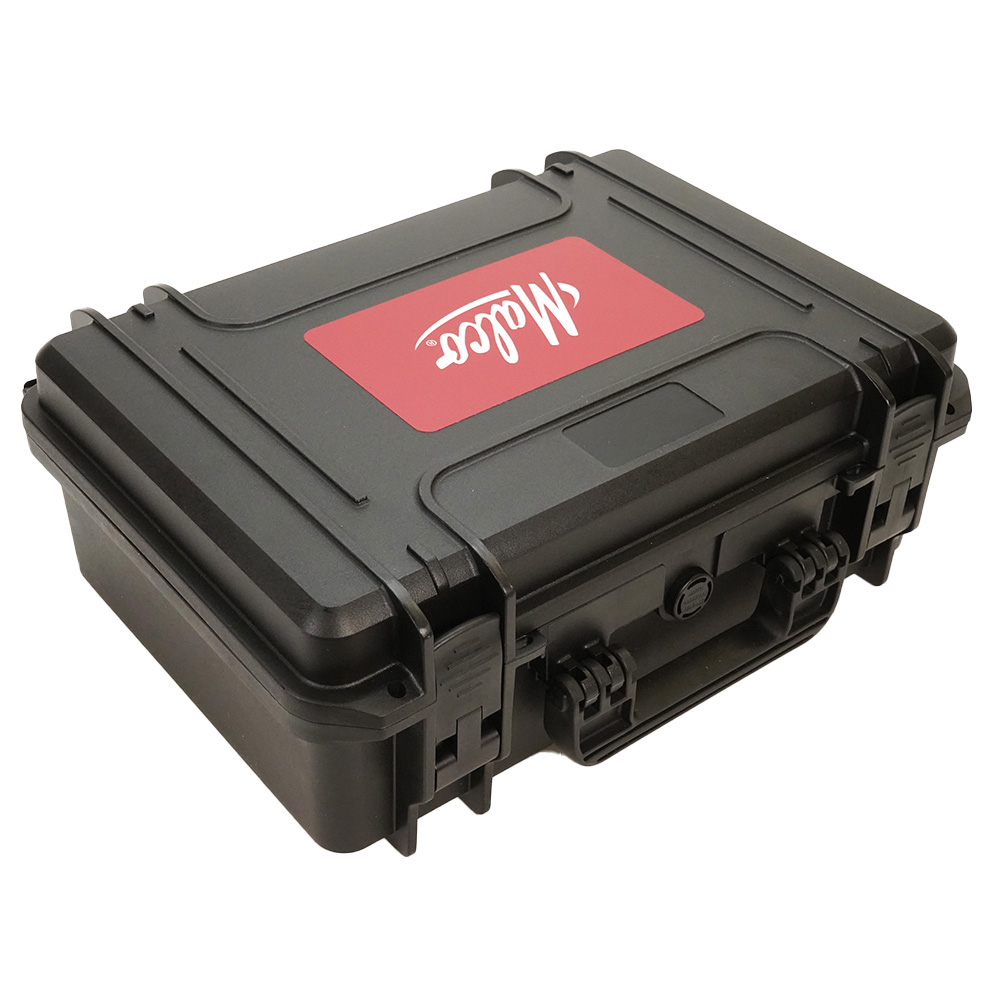

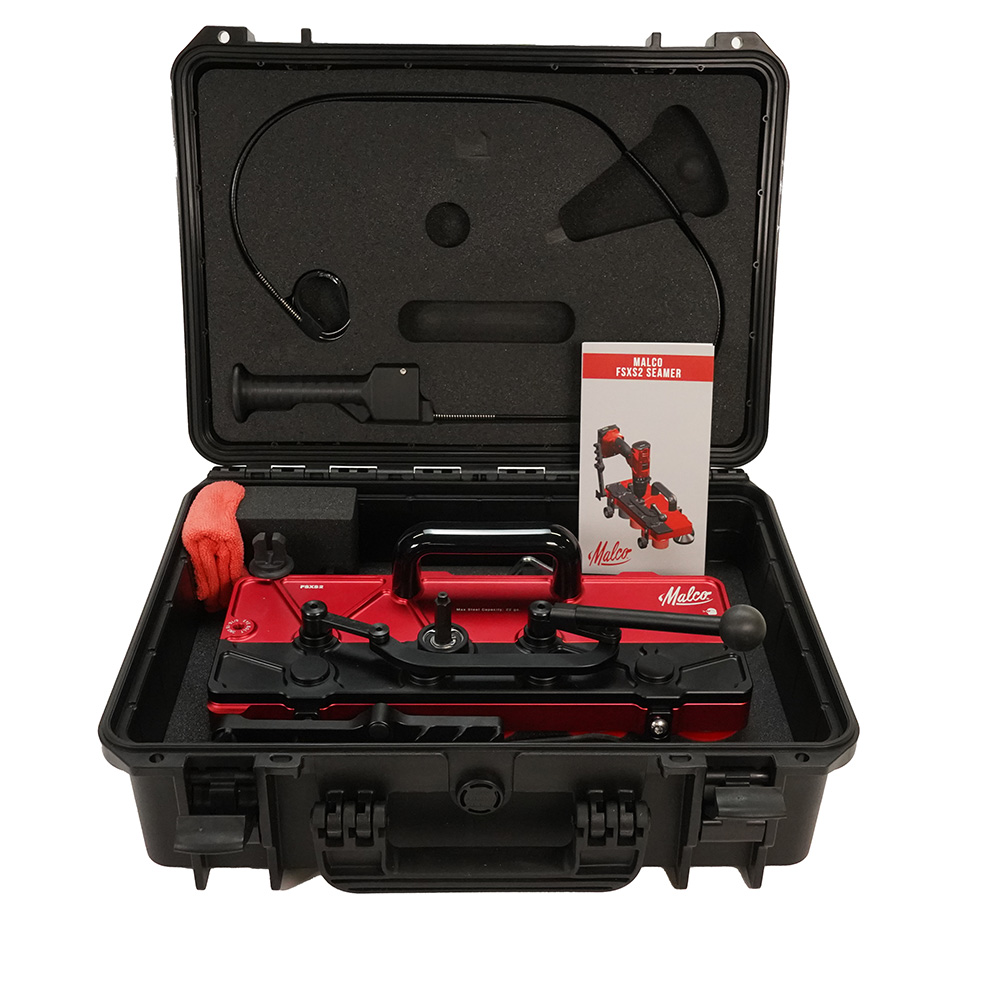

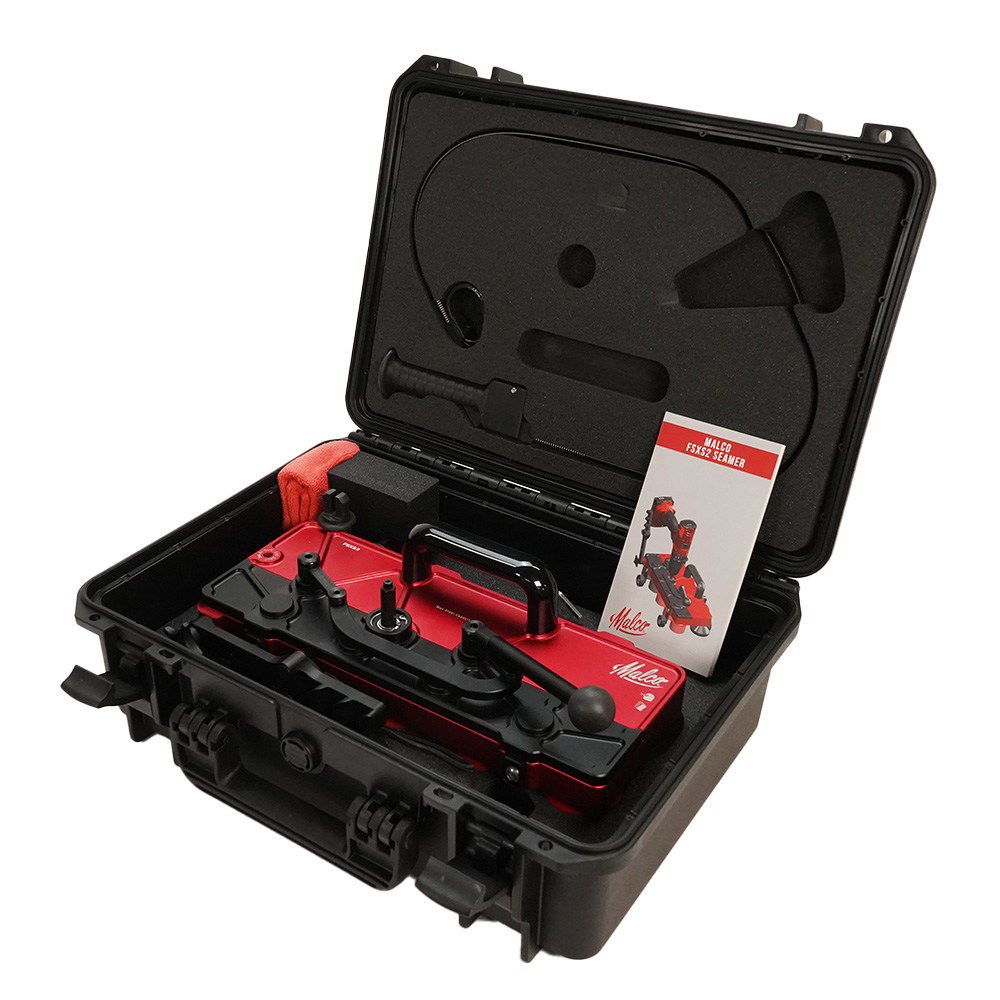

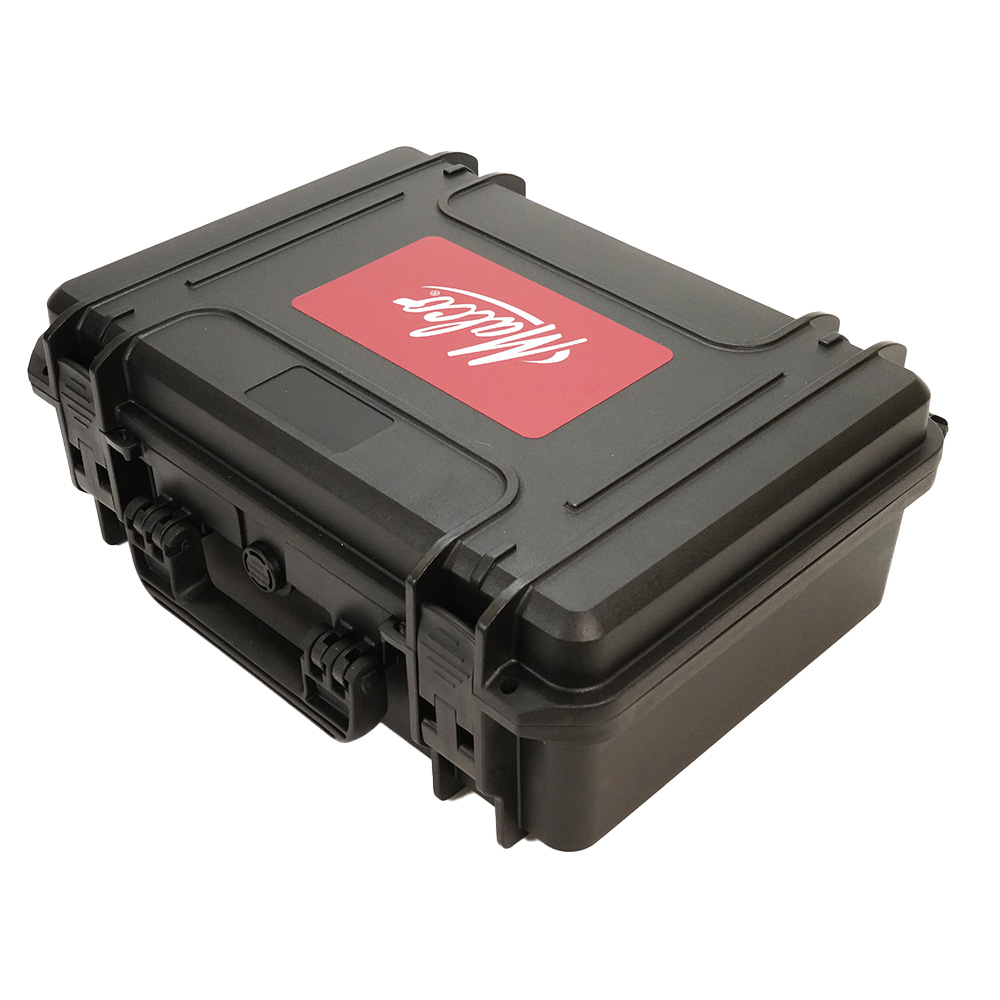

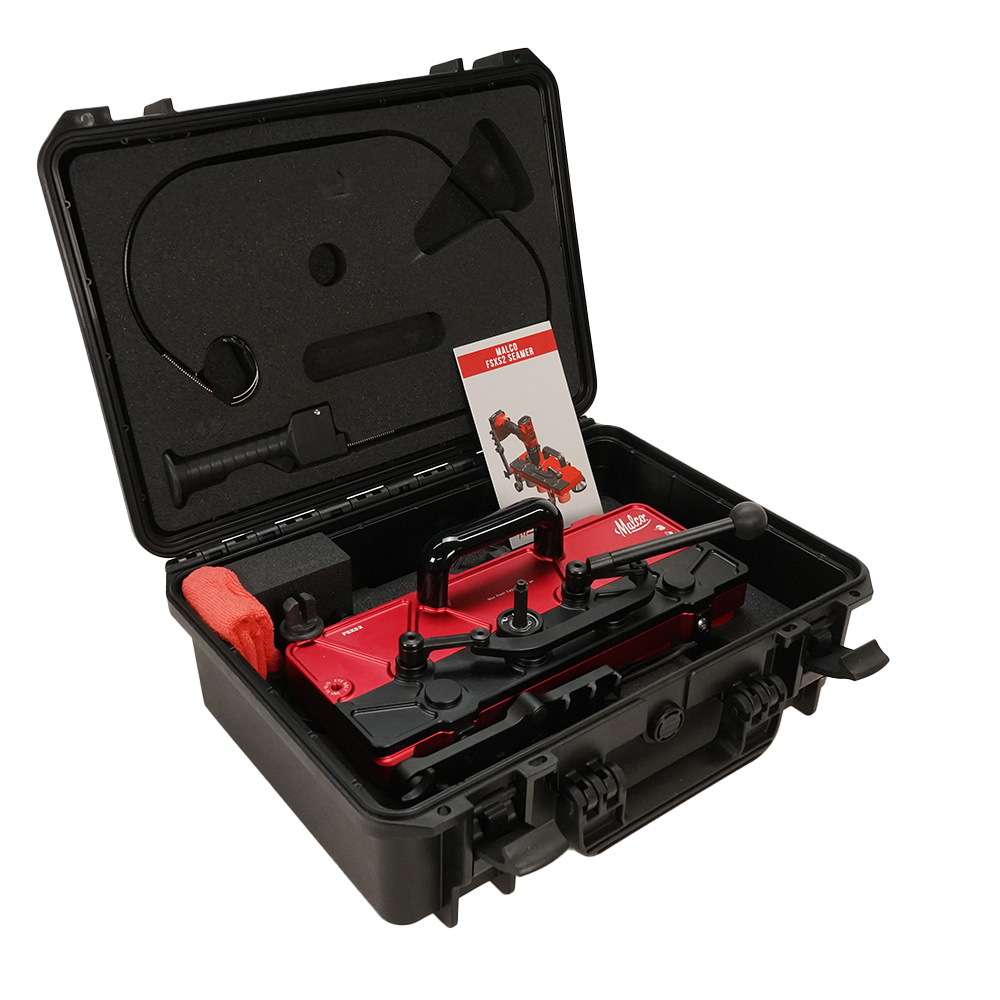

The Malco Power Assisted seamer comes packaged in a premium IP 67 case with custom foam inserts to ensure the safe storage of your seamer. Designed for roofing professionals working with Stainless Steel, Steel, Aluminum, Copper, and Zinc materials.

You can confidently quote repair and retrofit jobs, knowing that the material your customers want on their roof is something you can install.

To see the replacement part FSXS2RPDW, click here!

Features

Mechanically lock standing seam panels in less time, while working safer, and offering your customers more profiles.
Seam 2 inch standing seam panels on a 2-stage lock.
Closes 2-stage mechanical lock panels.
FSXS2 Seamer is equipped with safety lanyard hook up point using 5/16-18 UNC thread.
Black housing to differentiate from FSXS.

Specifications

Catalog Number	Description	Profile Size in. (mm)	Steel Capacity	Aluminum Capacity (mm)	Copper Capacity (mm)	Stainless Steel	Zinc
FSXS2	Standing Seam Seamer, 2″	2″ Double Lock (50.8mm)	22 ga.	.040″ (1 mm)	20 oz. (591 cm)	26 ga.	.040″ (1mm)
FSXS2RPDW	Wheel Replacements	—	—	—	—	—	—

FAQs

Please refer to the Troubleshooting Guide if you are having any issues operating your product.

Q1
What do I do if I am having trouble getting the tool to drive itself forward?
⌄

If the roof is wet, the tool will not drive consistently — the roof must be dry before seaming panels. Other common issues are related to seaming pressure: too little pressure will cause the tool to fail to feed, while too much pressure will result in deformed or crushed finished seams.

Q2
What should I look at if the drive wheels wore out after only a short time?
⌄

Verify that the seaming pressure knobs are adjusted properly to achieve the desired finished seam. Over-tightening these knobs creates unnecessary contact forces on the drive wheels, leading to premature wear.

Premature drive wheel failures are also often caused by seaming panels in the incorrect direction. The drive wheels must ride along the vertical leg of the panel, and the form wheels must be positioned to close the open seam.

We recommend using factory original replacement drive wheels.

Q3
Will the FSXS or FSXS2 seam panels with pre-applied sealant?
⌄

Yes. The FSXS and FSXS2 will seam panels with pre-applied manufacturer sealant, provided the panels match the profile shown in the instructions.

Q4
Will the FSXS2 work with profiles that have a drop leg on the male side of the panel?
⌄

No. The seamer is only compatible with the 2″ panel male and female profiles shown in the instruction sheet. The male leg must be a single 90-degree leg at 11/16″, and the female leg must be 13/16″ wide with a drop leg of 9/16″.
