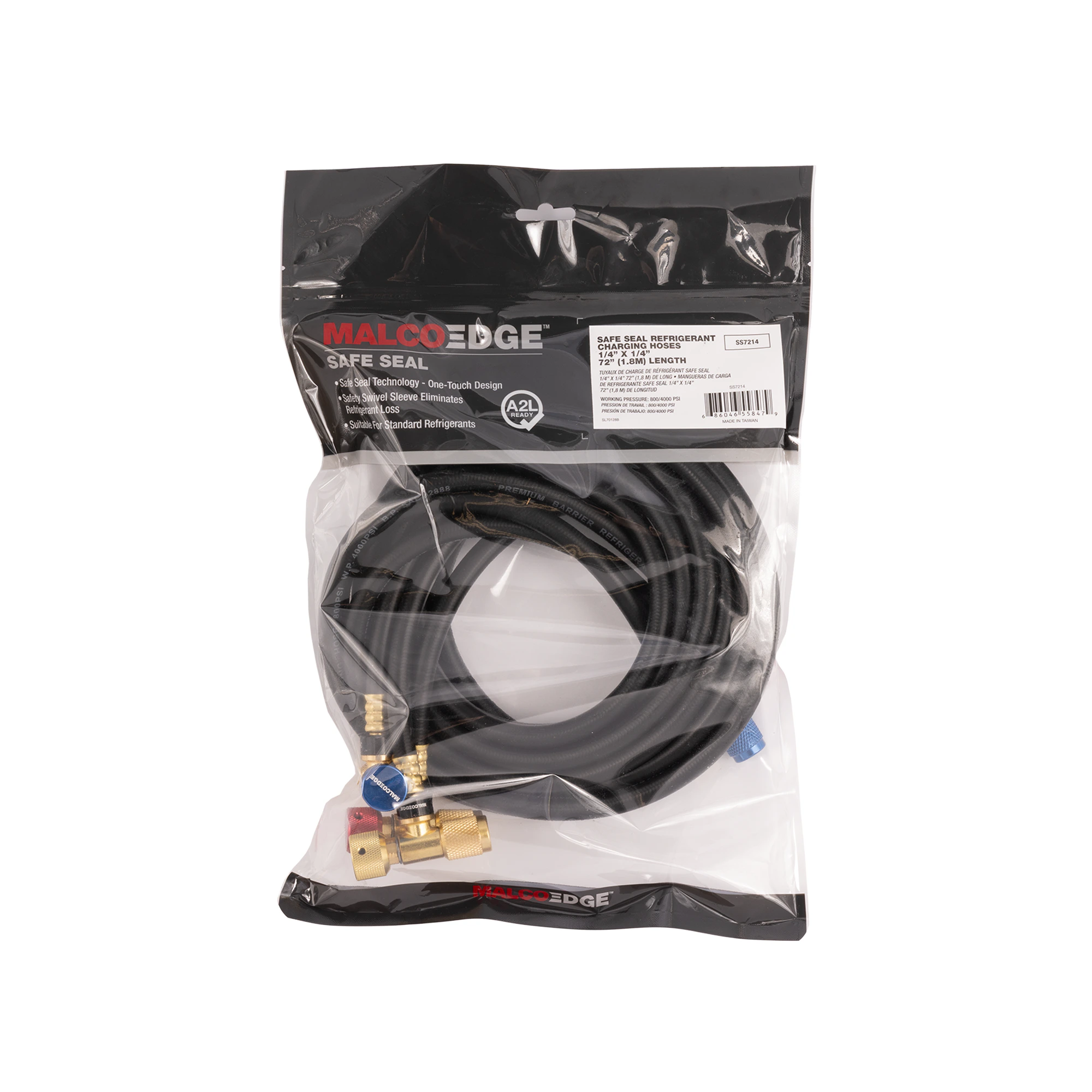

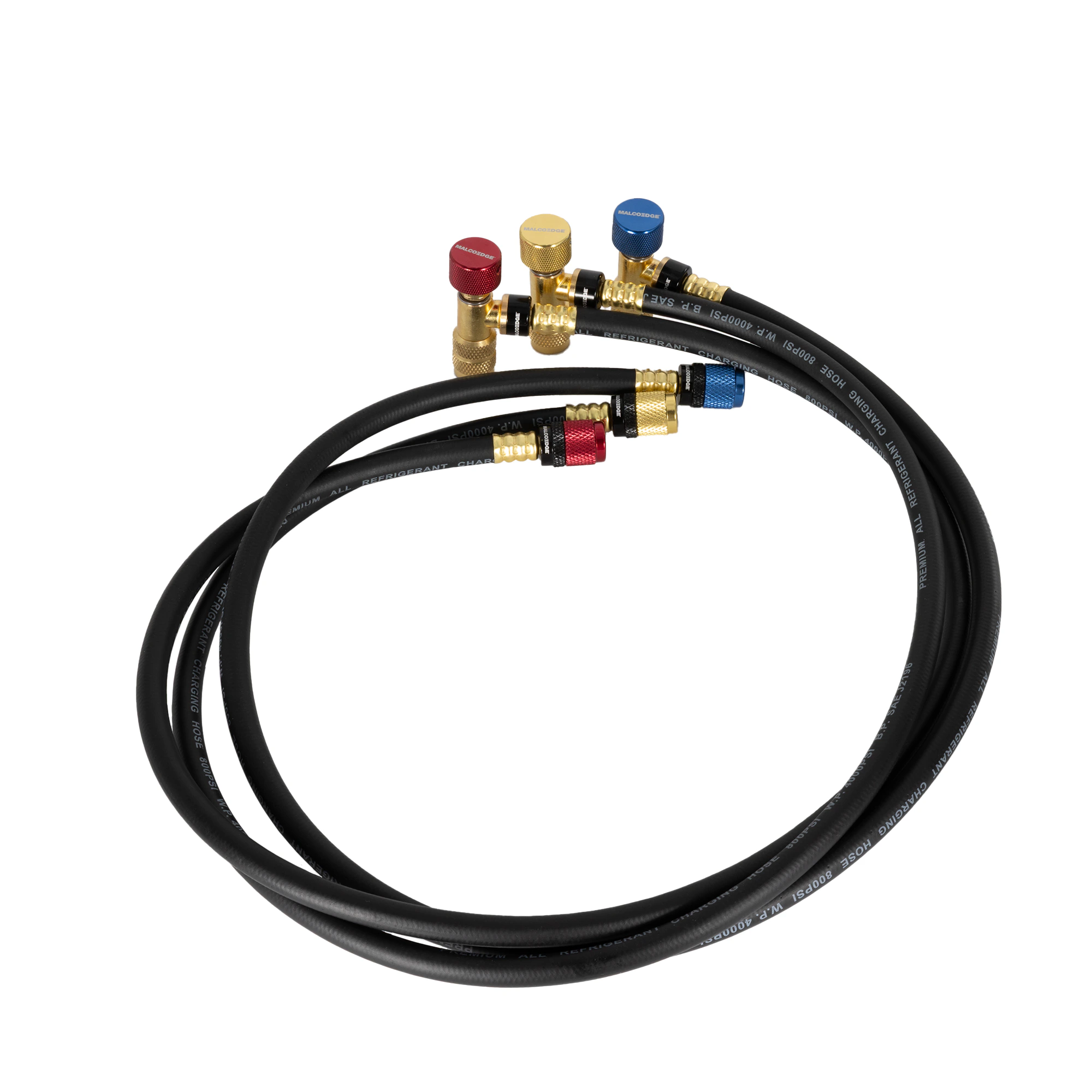

MalcoEdge™ SS7214 Safe Seal 3-Piece Refrigerant Hose Set – 72 Inch x 1/4 SAE Hoses with Anti-Blowback Fittings

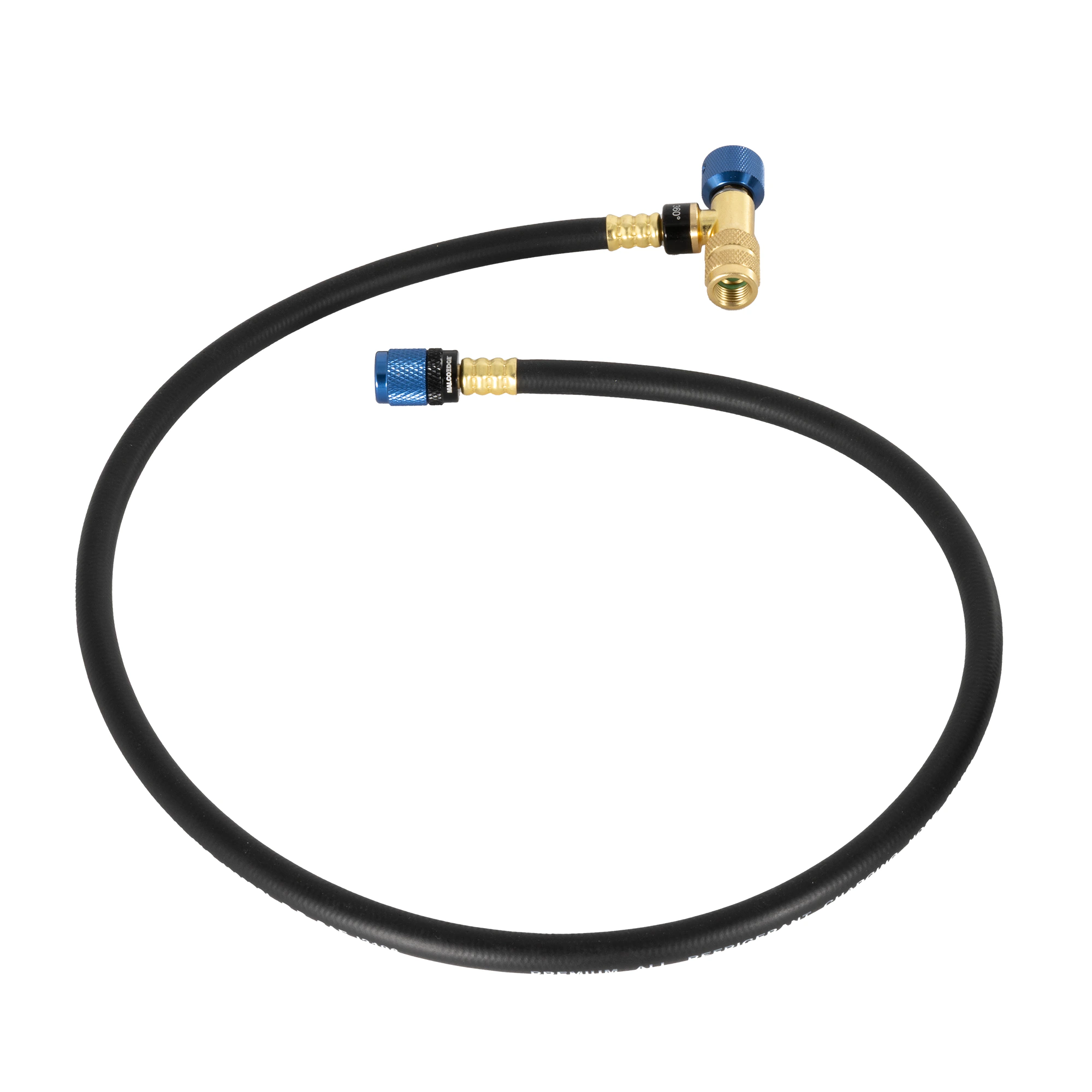

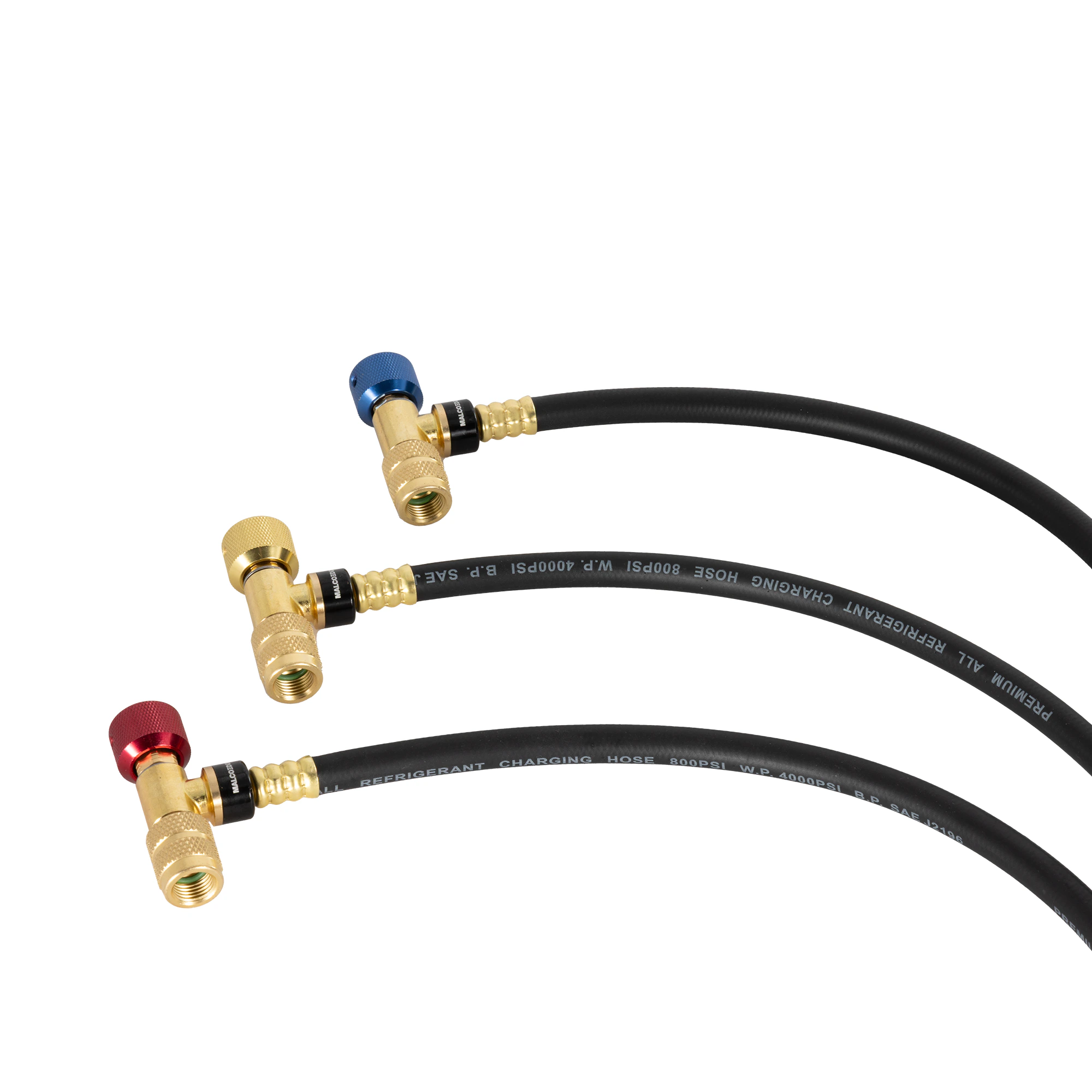

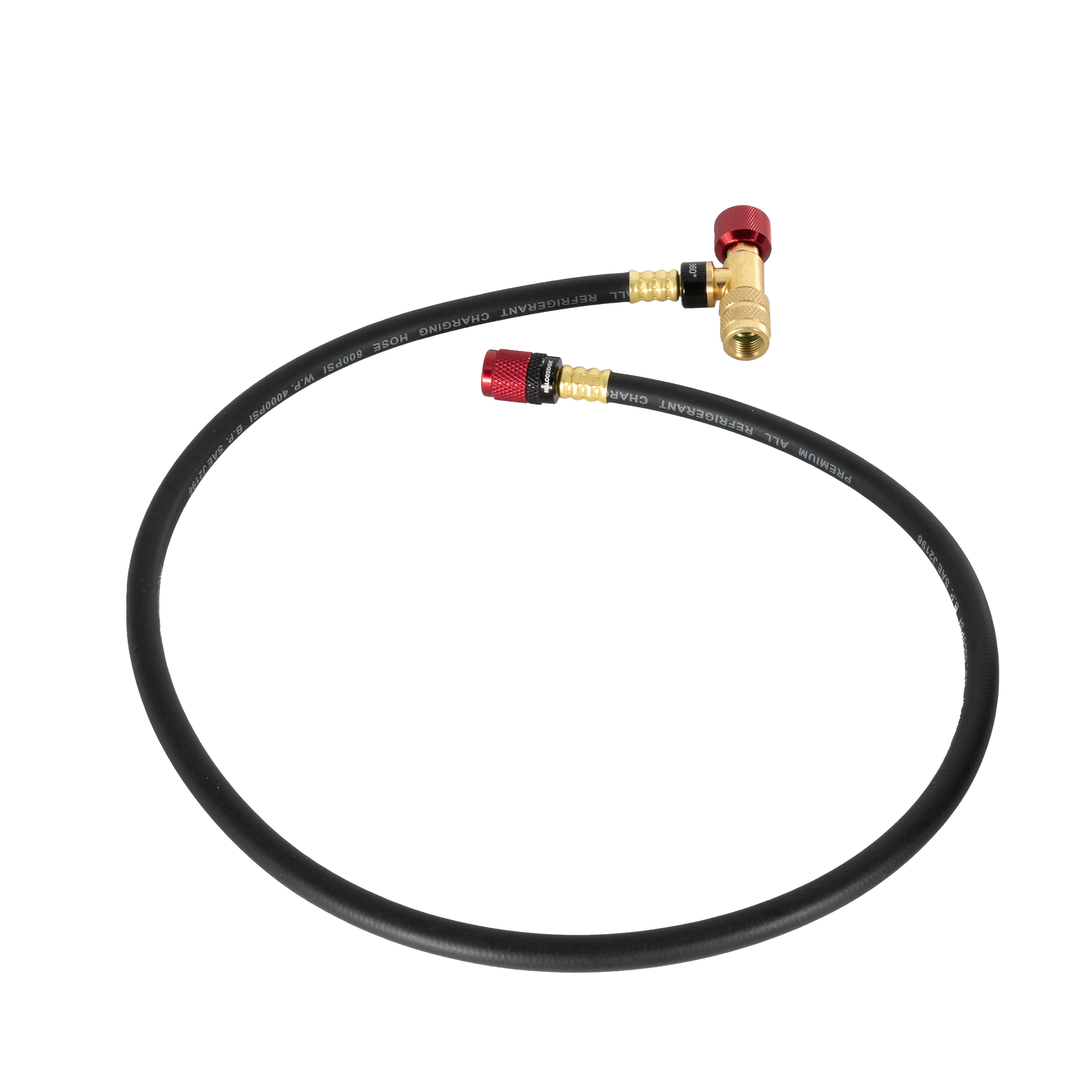

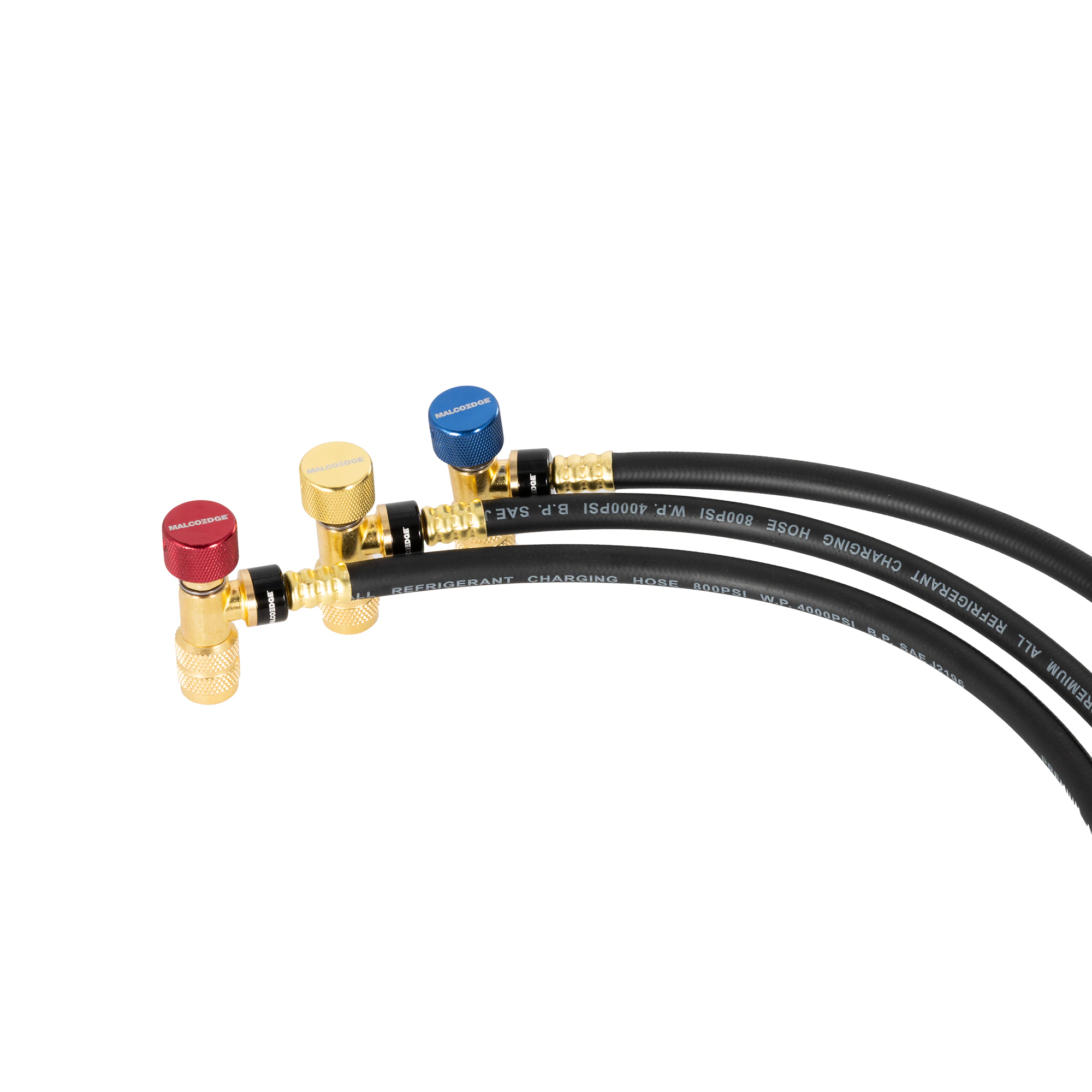

The MalcoEdge™ SS7214 Safe Seal 3-Piece Hose Set is engineered to maximize technician safety and system efficiency during HVAC charging and recovery. Each 72-inch x 1/4 SAE high-pressure hose is vacuum-rated and features a Safe Seal anti-blowback design that eliminates the risk of refrigerant spray or loss when disconnecting, helping to protect both the technician and the environment. The swiveling fittings ensure a secure connection that won’t loosen during use, while the smooth one-handed operation improves speed and control. Constructed with a high-quality barrier hose, this set also offers superior refrigerant retention during storage.
Features
- Prevents refrigerant loss and protects against refrigerant burns
- Designed for fast, efficient use in the field
- Vacuum-Rated High-Pressure Hoses: Leak-free performance during evacuation and charging

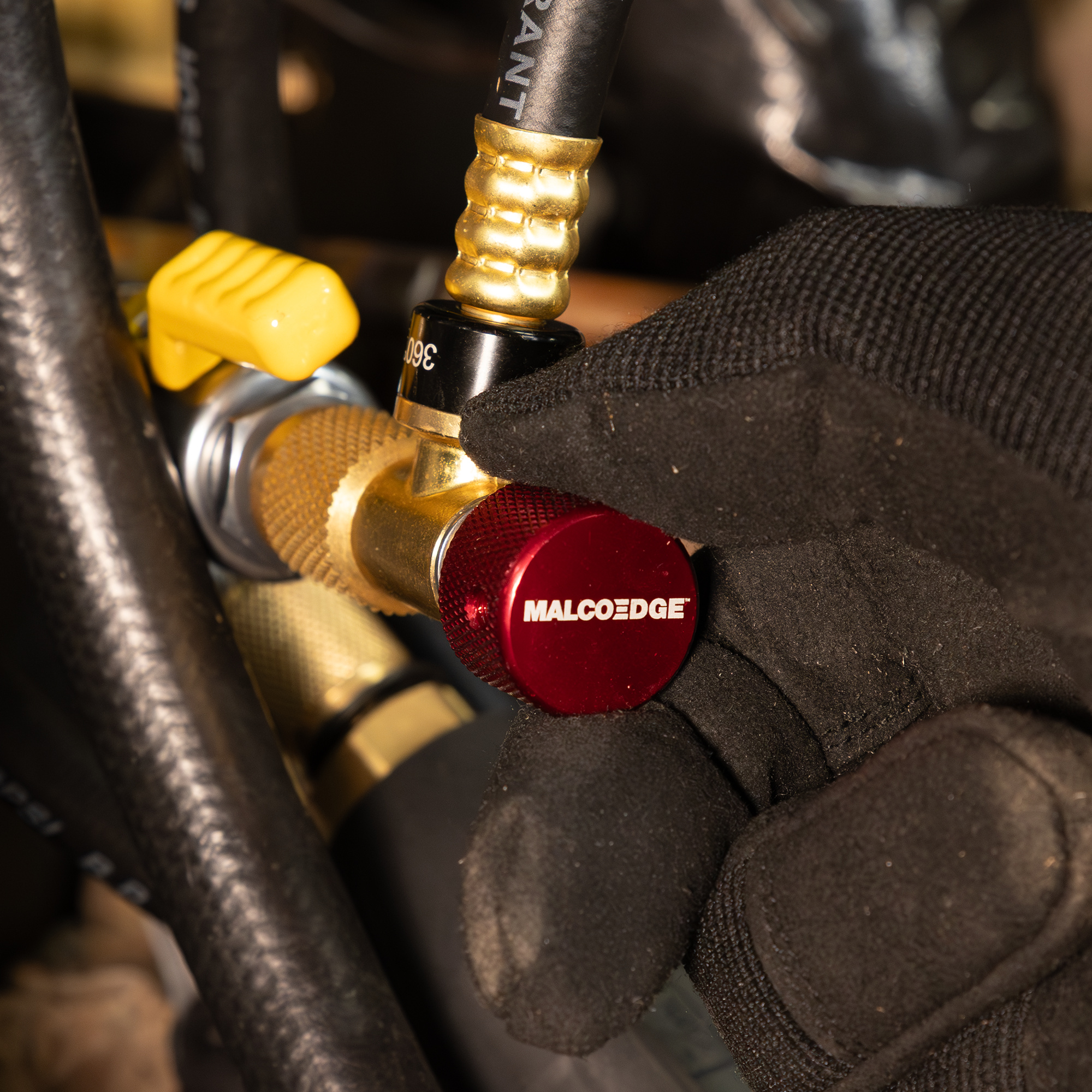

- Smooth, one-handed operation
- High quality barrier hose for improved refrigerant retention during storage
Specifications
- Product Specifications:
Length (L): 13.75 in. (34.93 cm)
Width (W): 8.50 in. (21.59 cm)
Height (H): 2.50 in. (6.35 cm)
Weight: 2.00 lbs. (0.91 kg)Packaged Dimensions:
Length (L): 12.00 in. (30.48 cm)
Width (W): 9.75 in. (24.77 cm)
Height (H): 2.00 in. (5.08 cm)
Weight: 2.00 lbs. (0.91 kg)
Volume: 234 cu. in.
FAQs
Q1: What do I do if the seals on my Easy Seal hoses leak?
A1: Malco sells replacement seals so you can replace them in the field and extend the life of your hoses.
Q2: Does hose length matter when pulling a vacuum?
A2: Yes. Shorter hoses with a larger diameter — such as a 3/8″ MalcoEdge Turbo Flow hose — are more efficient when pulling a vacuum.
Q3: Can I use the same hoses with a variety of refrigerants?
A3: MalcoEdge hoses are compatible with popular refrigerants. However, we do not recommend using multiple refrigerants in the same hoses unless you flush them first using a product like ACE Powerflush. To prevent cross-contamination from oils left in the hoses, we recommend dedicating separate hoses to specific refrigerants.
Q4: Do I need to flush and clean my equipment when switching between refrigerants?
A4: Yes. Some refrigerants use different lubricants and cannot be mixed. As a best practice, flush hoses, manifolds, and other components between services to prevent cross-contamination. We recommend using ACE Powerflush when switching refrigerants.
Q5: What are the working and burst pressures for these hoses?
A5: Working pressure is 800 PSI. Burst pressure is 4,000 PSI.
Q6: What do I do if my hoses engage a Schrader valve too early or not enough?
A6: The core depressors are threaded. Simply adjust the height by screwing the core depressor further in or out to get the right engagement depth.
Q7: Do MalcoEdge Safe Seal hoses vent to atmosphere when disconnecting from the service port?
A7: No. When the core depressor is retracted, it seals the refrigerant inside the hose.
Q8: Are the threads on the refrigerant hose right-hand or left-hand threads?
A8: The hoses use right-hand threads. An adapter is required when working with left-hand thread refrigerant tanks.
