MalcoEdge™ SS6014516 Safe Seal HVAC Hose Set

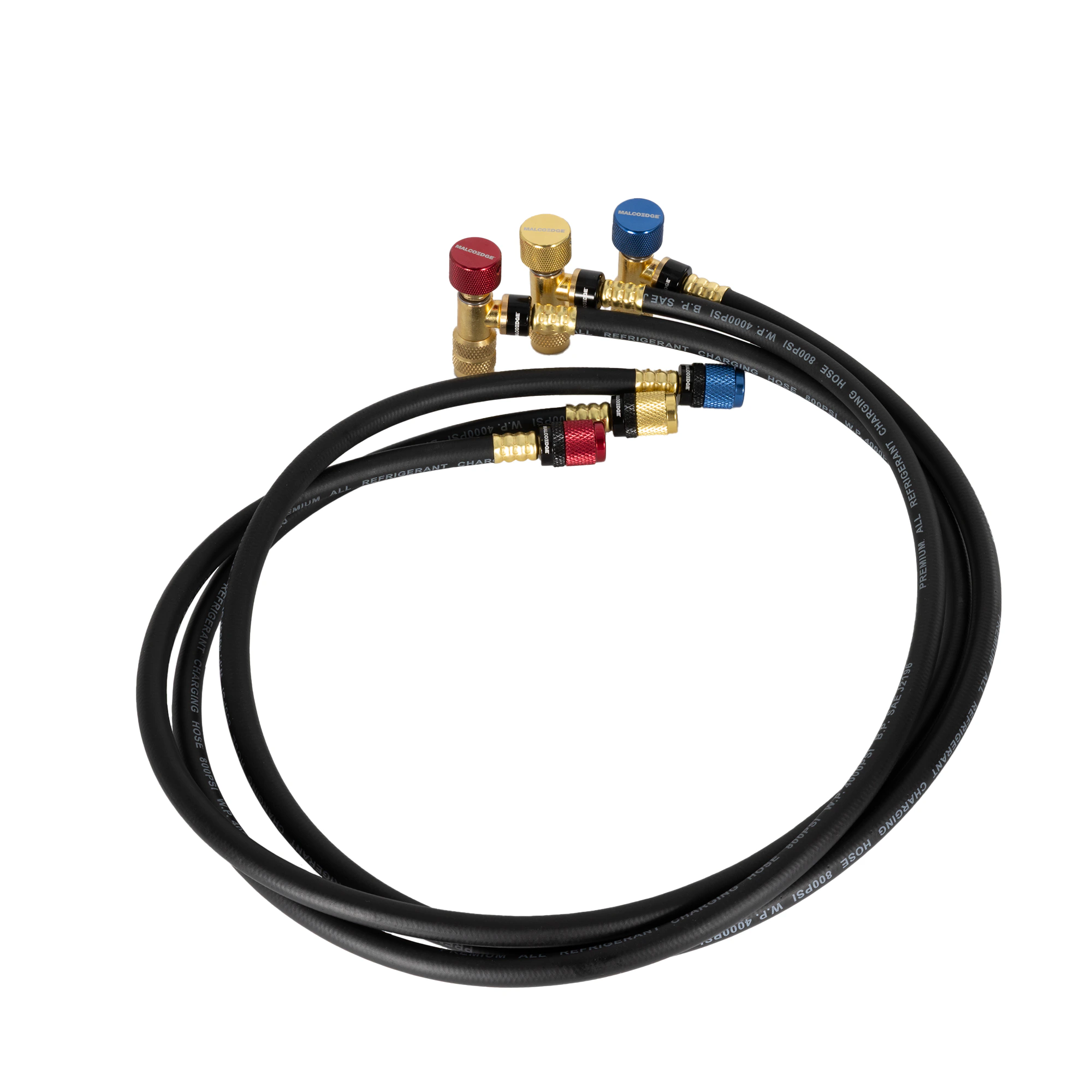

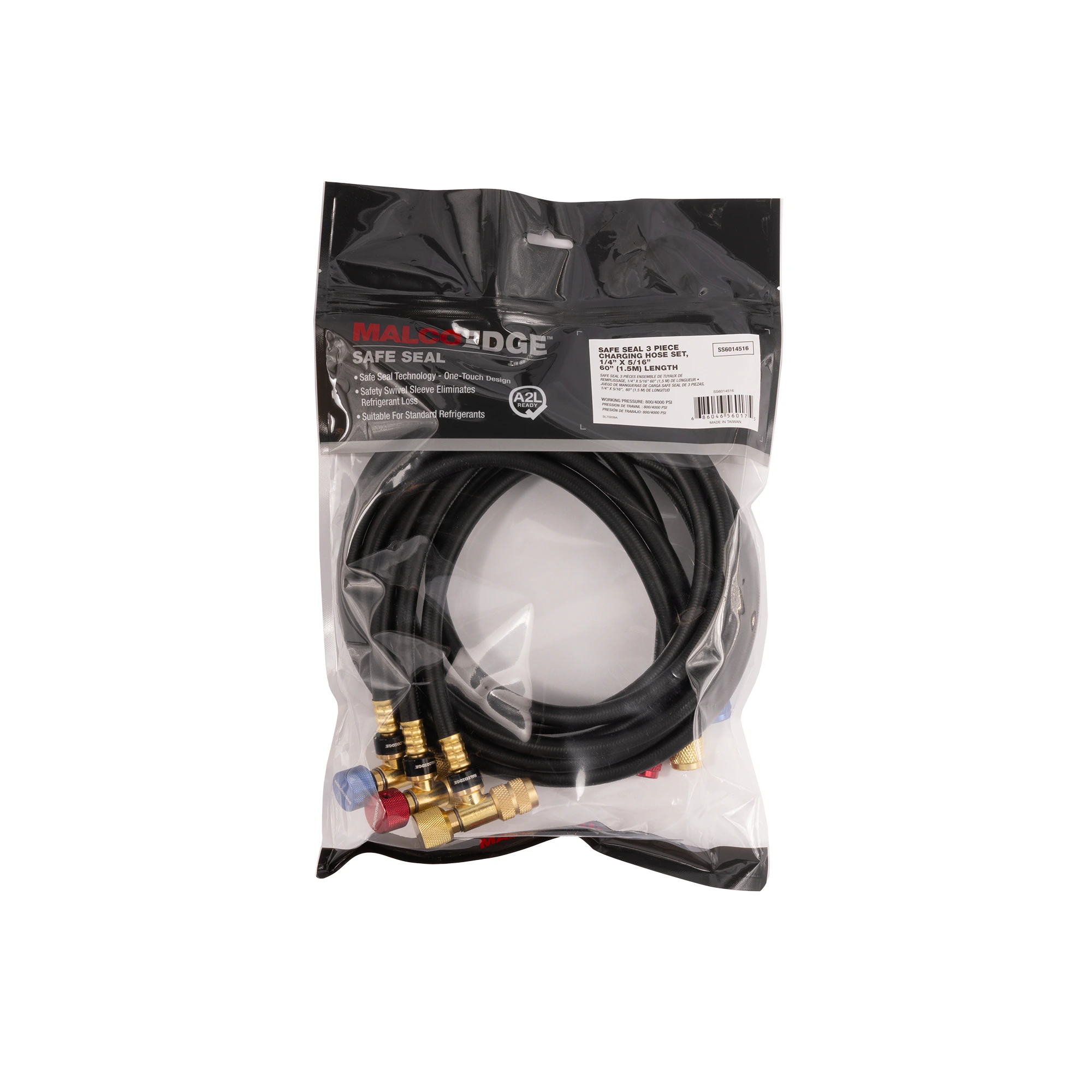

The MalcoEdge™ SS6014516 Safe Seal 3-Piece Hose Set is specially designed for mini-split and residential HVAC systems requiring mixed-port sizes. Each 60″ hose includes 1/4 SAE x 5/16 SAE fittings and is equipped with Safe Seal technology to minimize refrigerant leakage during charging, recovery, and evacuation. Built for high-pressure performance and long-term durability, this color-coded set is perfect for technicians who service ductless, split, or hybrid systems.
Features

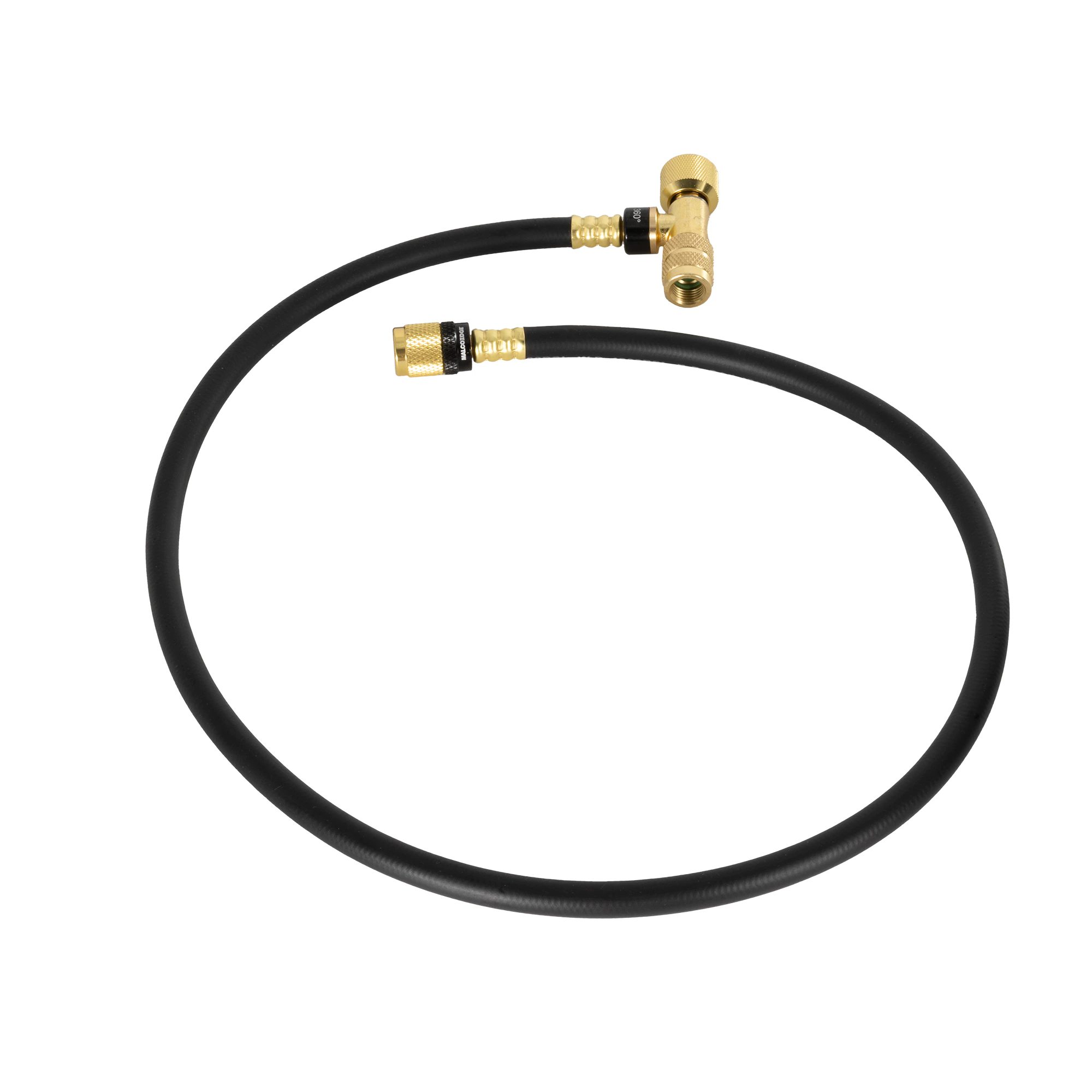

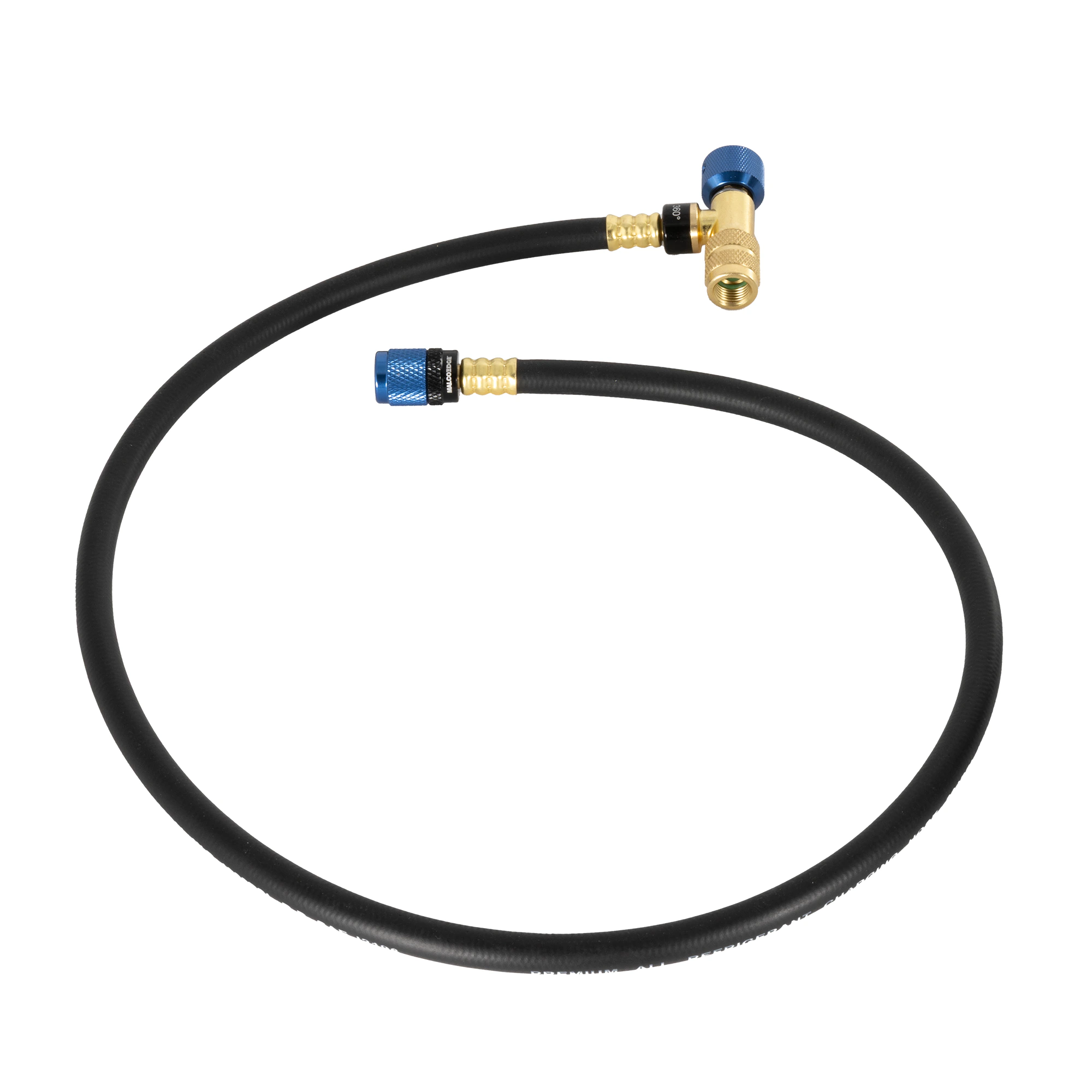

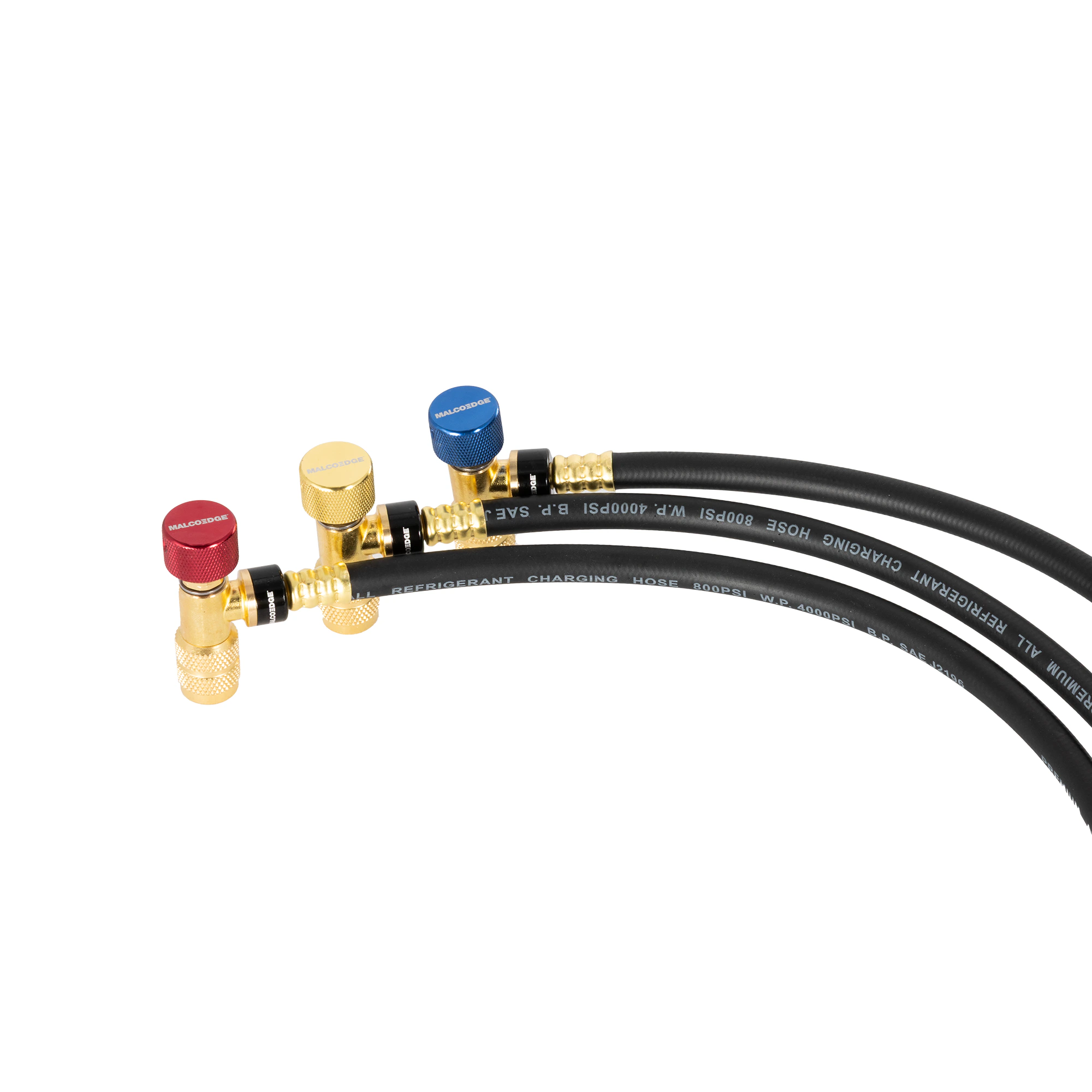

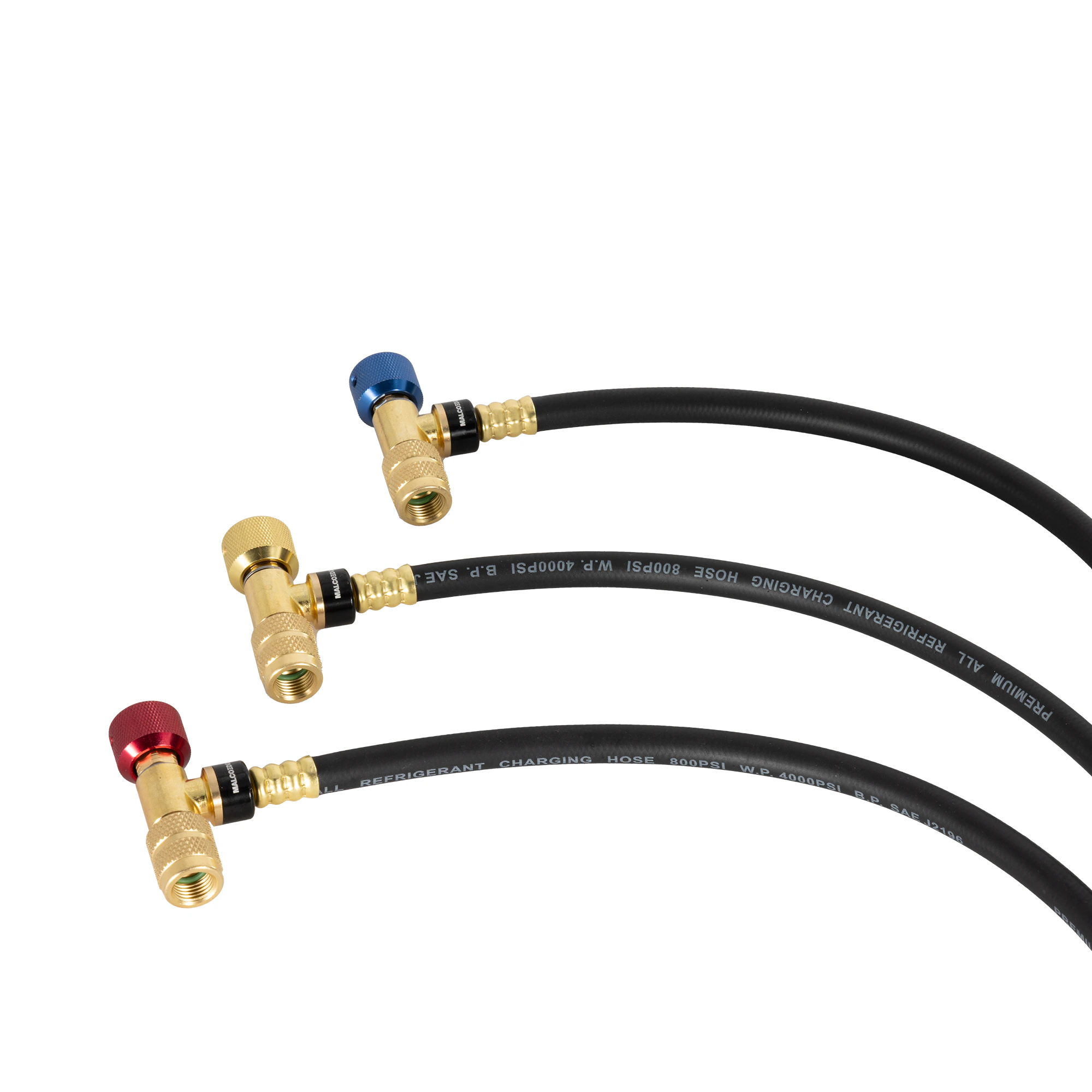

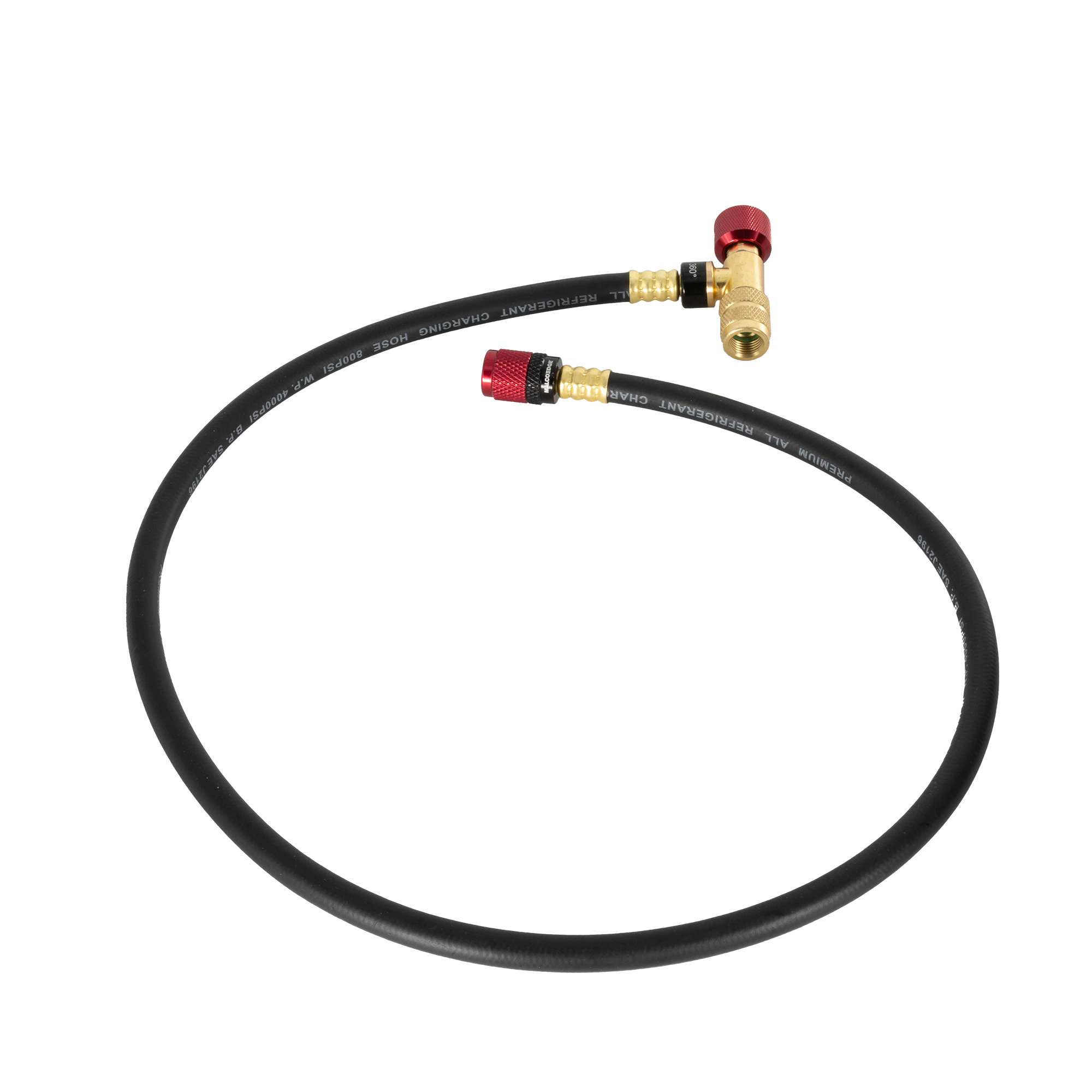

- Complete 3-Hose Set – Includes red, blue, and yellow fittings for clear system identification.
- 60″ Hose Lengths – Offers ample reach for most AC and refrigeration service configurations.
- Safe Seal Technology – Minimizes refrigerant loss and cross-contamination during connection.
- Barrier 4-layer hose meets SAE J2196 and withstands A2L high-pressure use in tough environments.
- 1/4 SAE x 5/16 SAE Fittings – Compatible with mini-split units and systems using mixed-size ports.
FAQs
Q1: What do I do if the seals on my Easy Seal hoses leak?
A1: Malco sells replacement seals so you can replace them in the field and extend the life of your hoses.
Q2: Does hose length matter when pulling a vacuum?
A2: Yes. Shorter hoses with a larger diameter — such as a 3/8″ MalcoEdge Turbo Flow hose — are more efficient when pulling a vacuum.
Q3: Can I use the same hoses with a variety of refrigerants?
A3: MalcoEdge hoses are compatible with popular refrigerants. However, we do not recommend using multiple refrigerants in the same hoses unless you flush them first using a product like ACE Powerflush. To prevent cross-contamination from oils left in the hoses, we recommend dedicating separate hoses to specific refrigerants.
Q4: Do I need to flush and clean my equipment when switching between refrigerants?
A4: Yes. Some refrigerants use different lubricants and cannot be mixed. As a best practice, flush hoses, manifolds, and other components between services to prevent cross-contamination. We recommend using ACE Powerflush when switching refrigerants.
Q5: What are the working and burst pressures for these hoses?
A5: Working pressure is 800 PSI. Burst pressure is 4,000 PSI.
Q6: What do I do if my hoses engage a Schrader valve too early or not enough?
A6: The core depressors are threaded. Simply adjust the height by screwing the core depressor further in or out to get the right engagement depth.

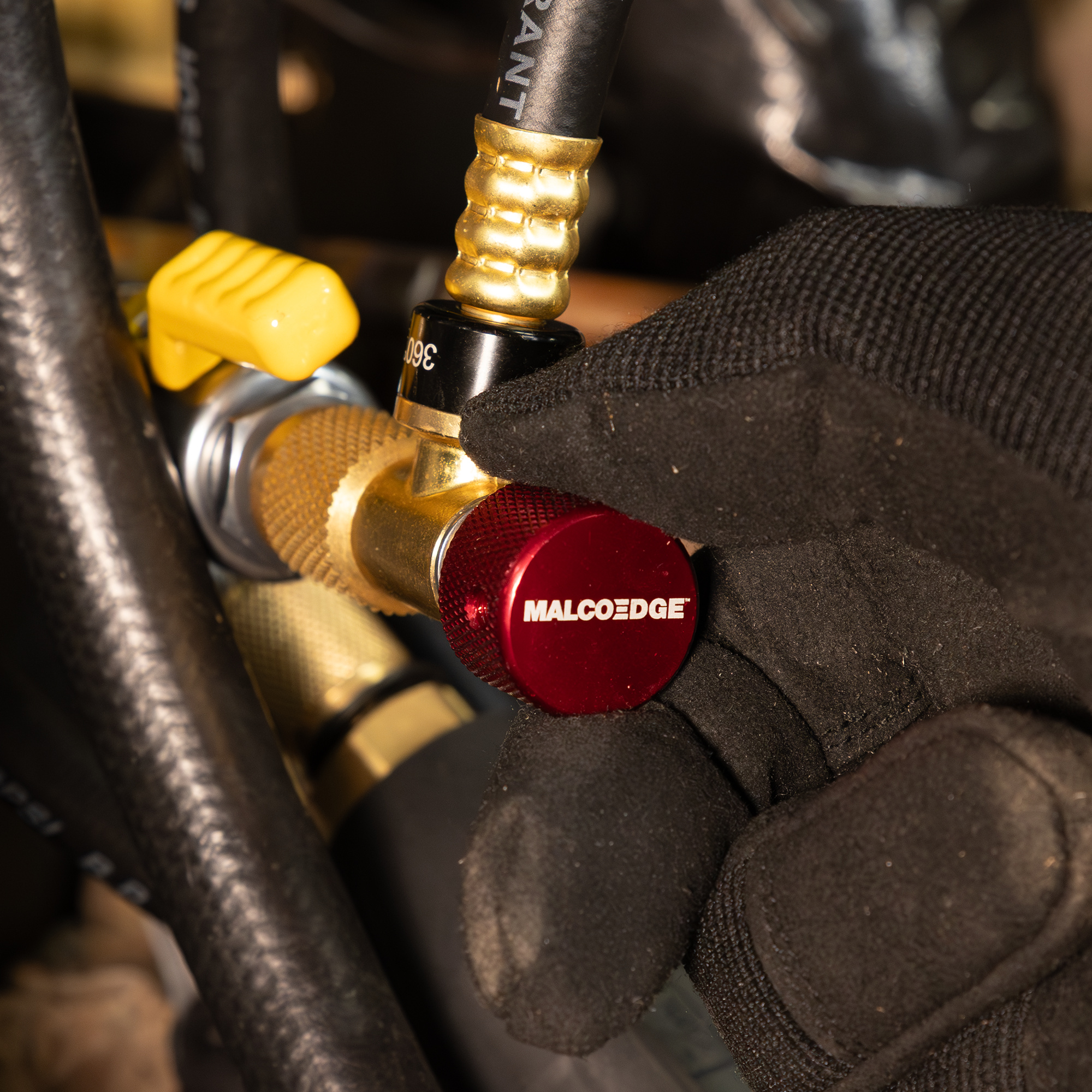

Q7: Do MalcoEdge Safe Seal hoses vent to atmosphere when disconnecting from the service port?
A7: No. When the core depressor is retracted, it seals the refrigerant inside the hose.
Q8: Are the threads on the refrigerant hose right-hand or left-hand threads?
A8: The hoses use right-hand threads. An adapter is required when working with left-hand thread refrigerant tanks.
