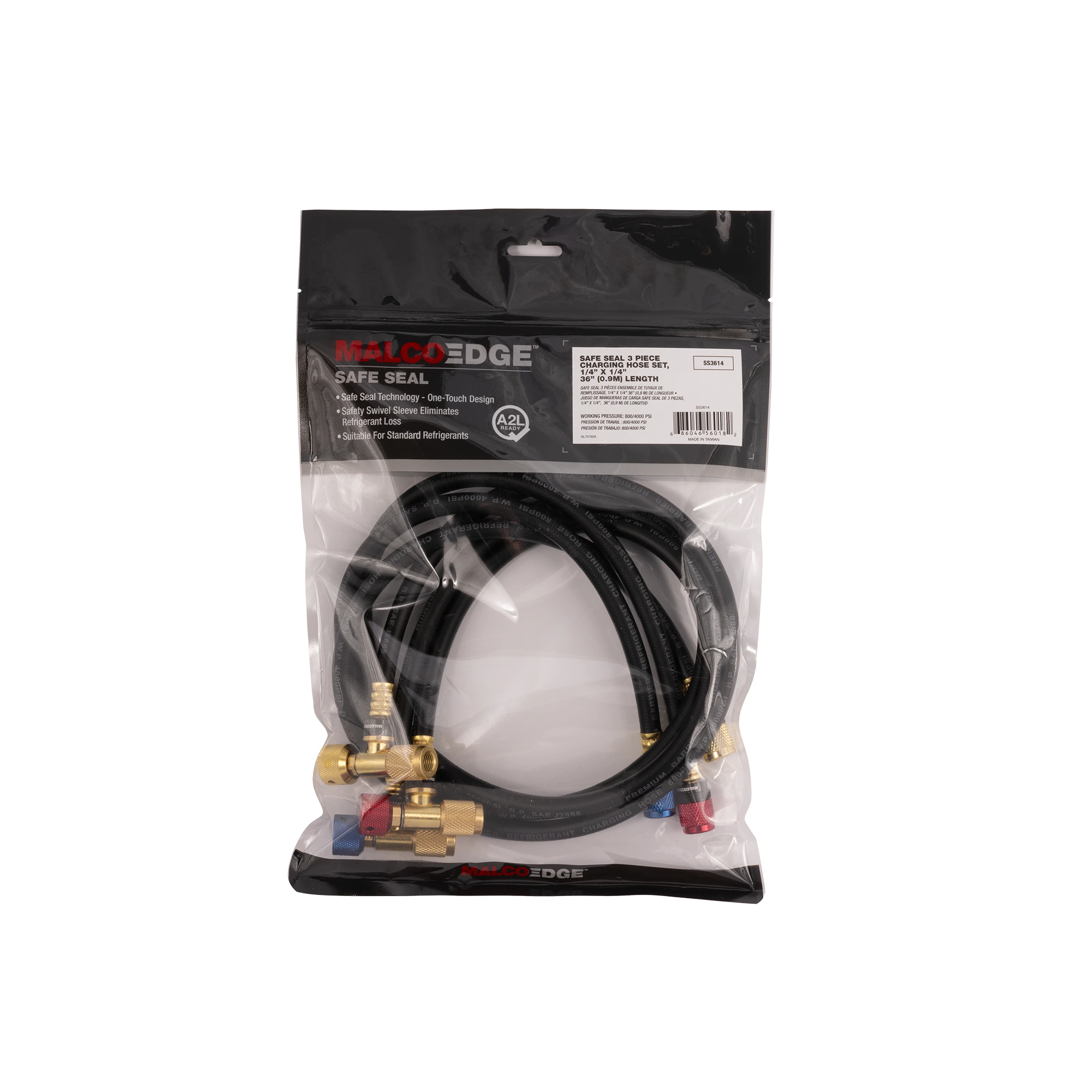

MalcoEdge™ SS3614 Safe Seal HVAC Hose Set
The MalcoEdge™ SS3614 Safe Seal 3-Piece Hose Set is designed for HVAC technicians who need reliability, control, and compact flexibility when servicing AC and refrigeration systems. Each 36″ hose features 1/4 SAE x 1/4 SAE standard fittings and Safe Seal technology to minimize refrigerant loss during connection and disconnection. This short-length, high-performance set is ideal for tight spaces, making it a go-to solution for efficient, leak-resistant service in residential or light commercial systems.
Features

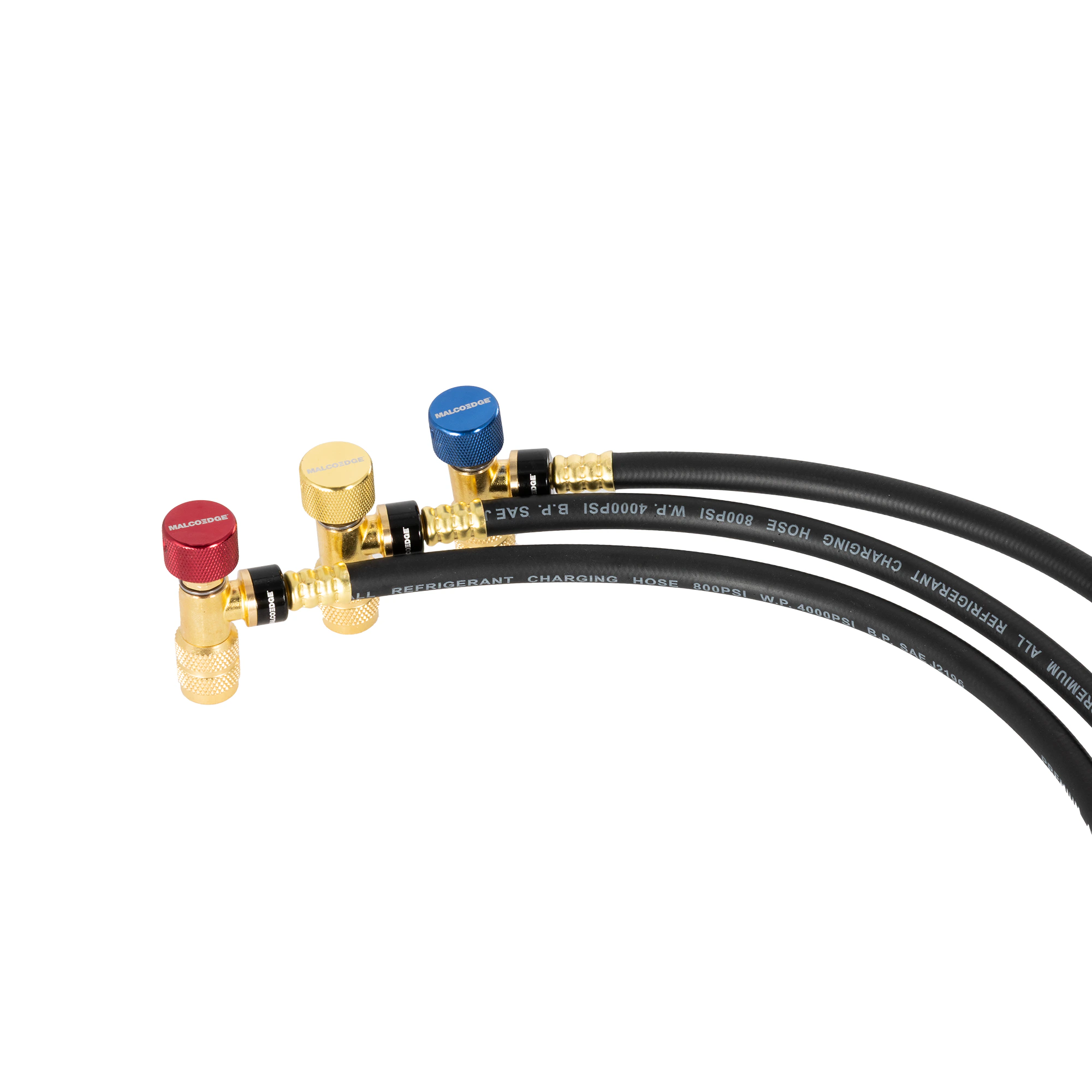

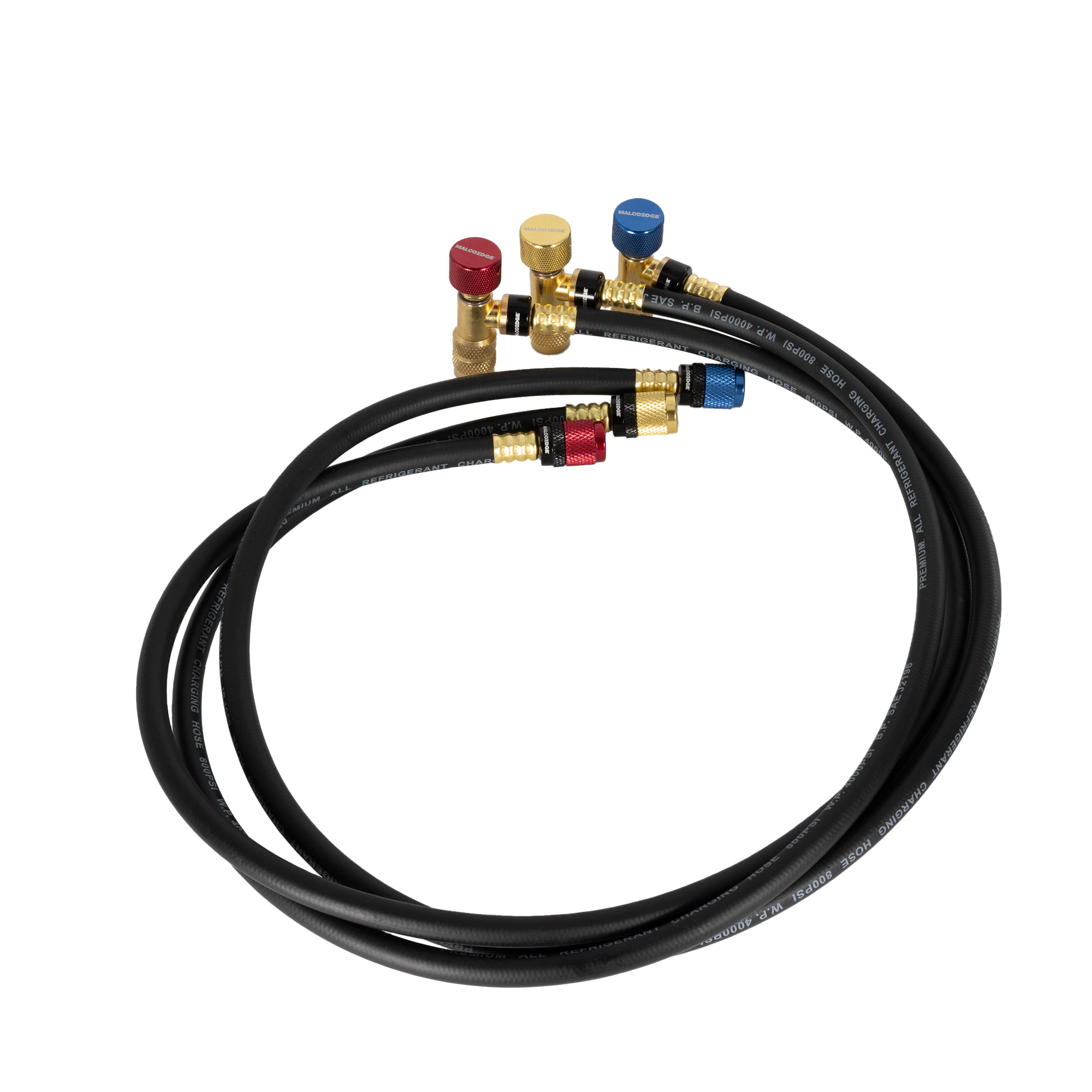

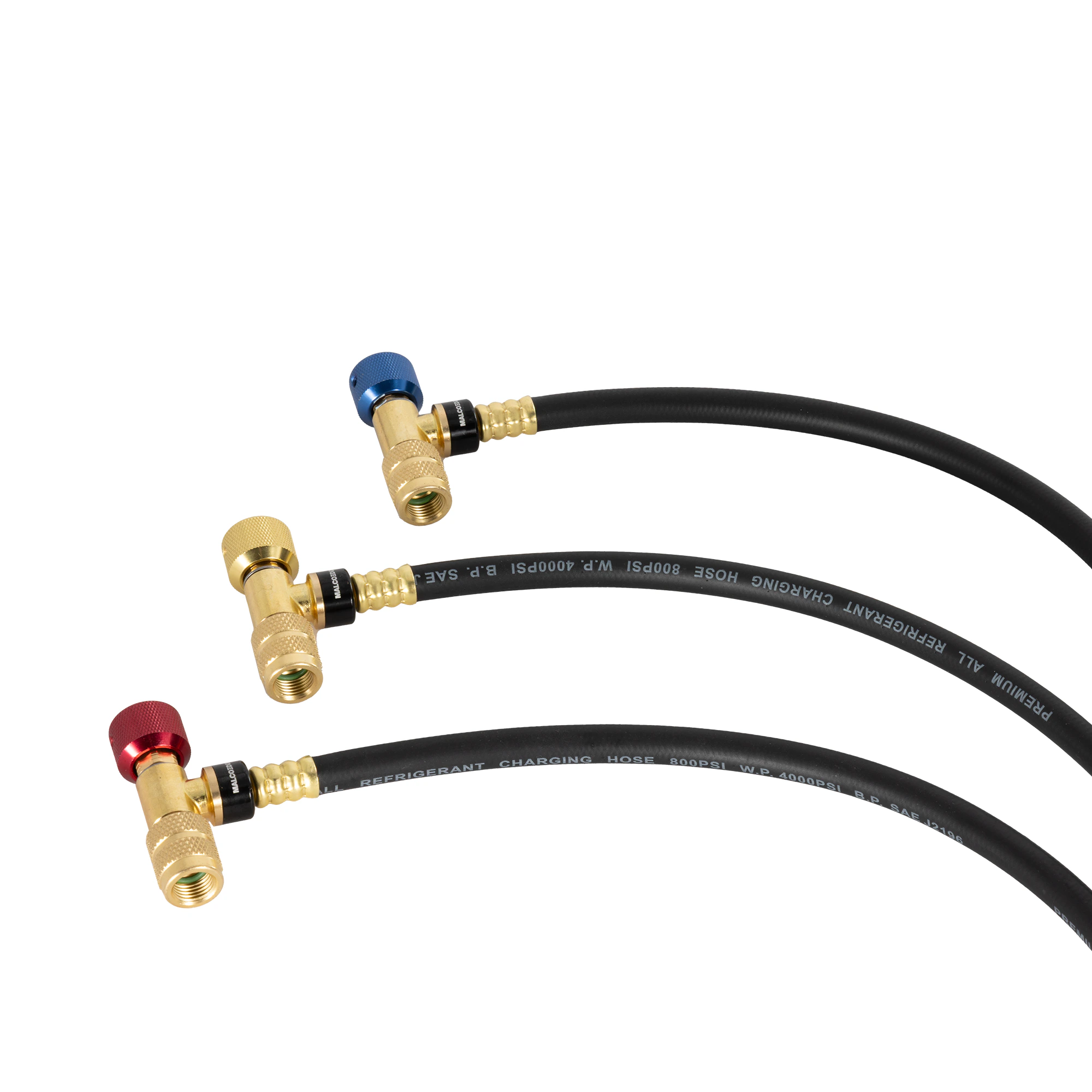

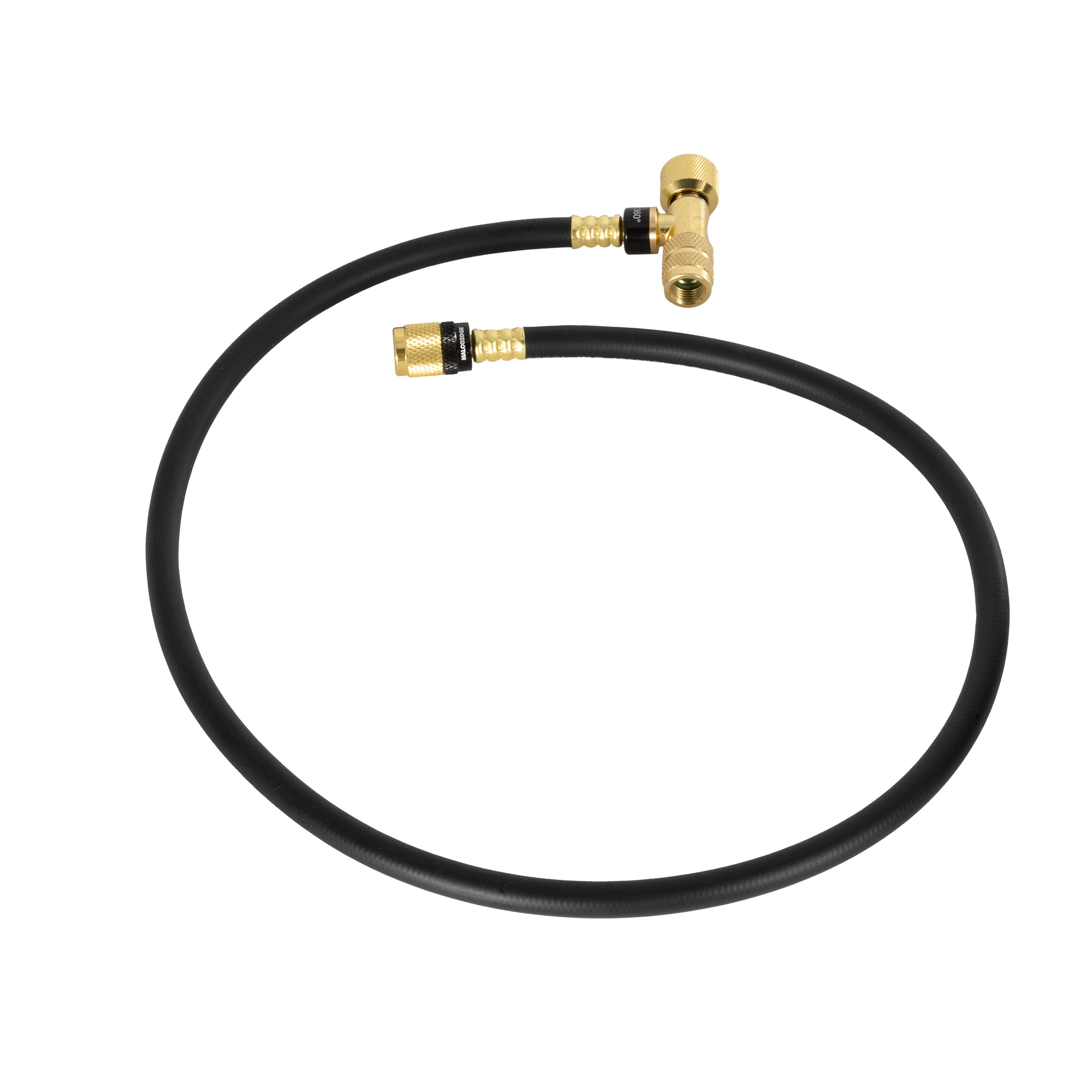

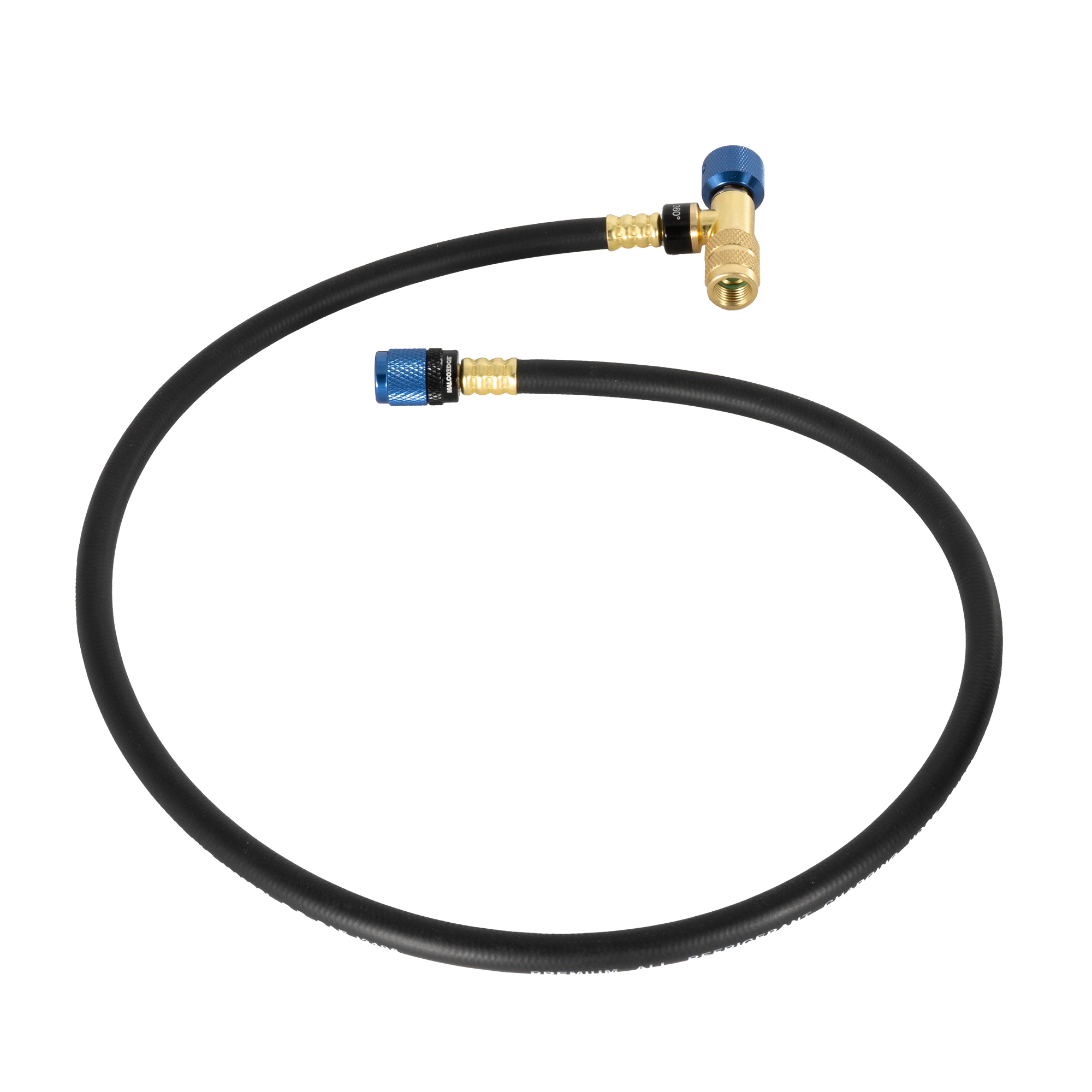

- Complete 3-Hose Set – Includes red, blue, and yellow fittings for clear system identification.

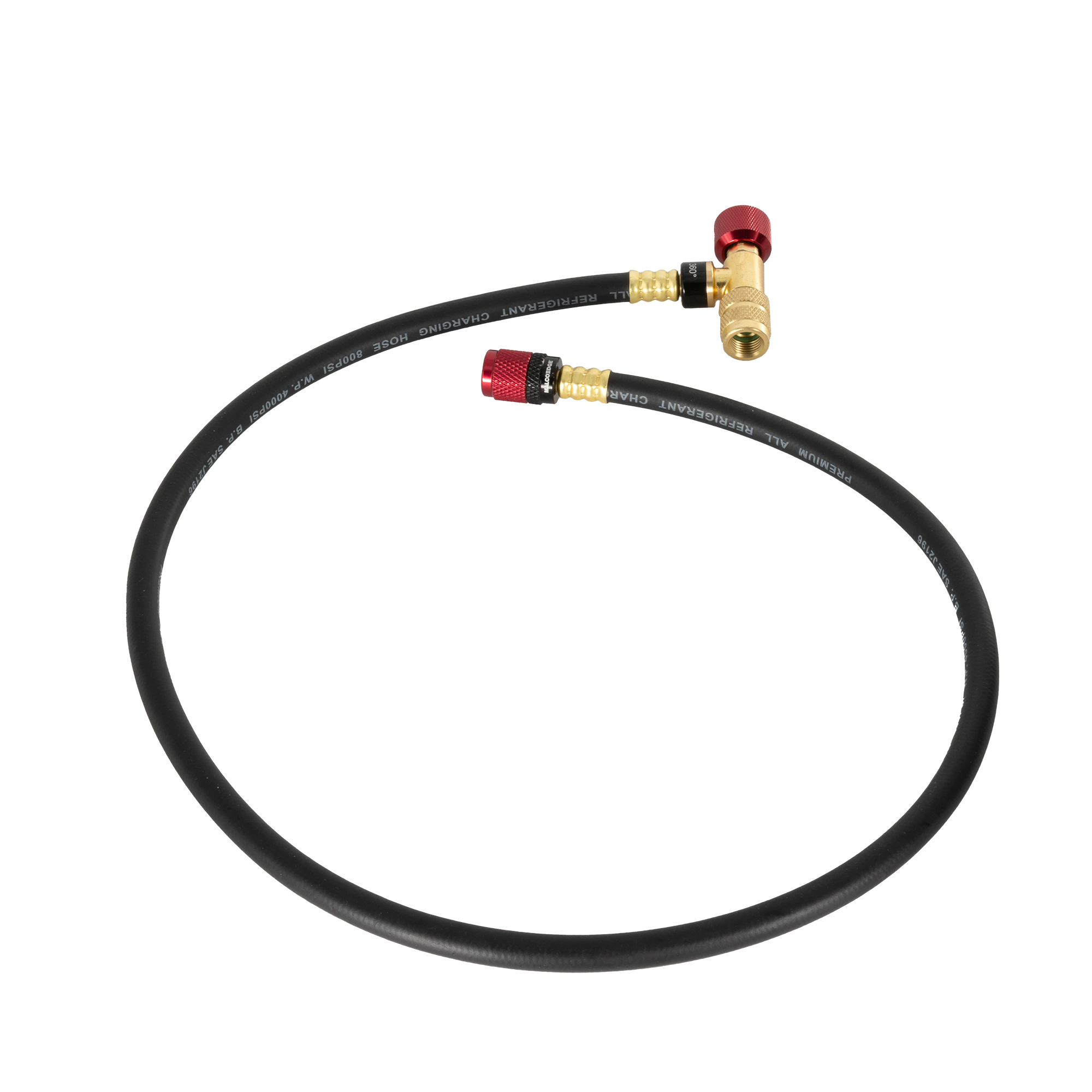

- 36″ Hose Lengths – Perfect for confined service areas or compact unit installations.

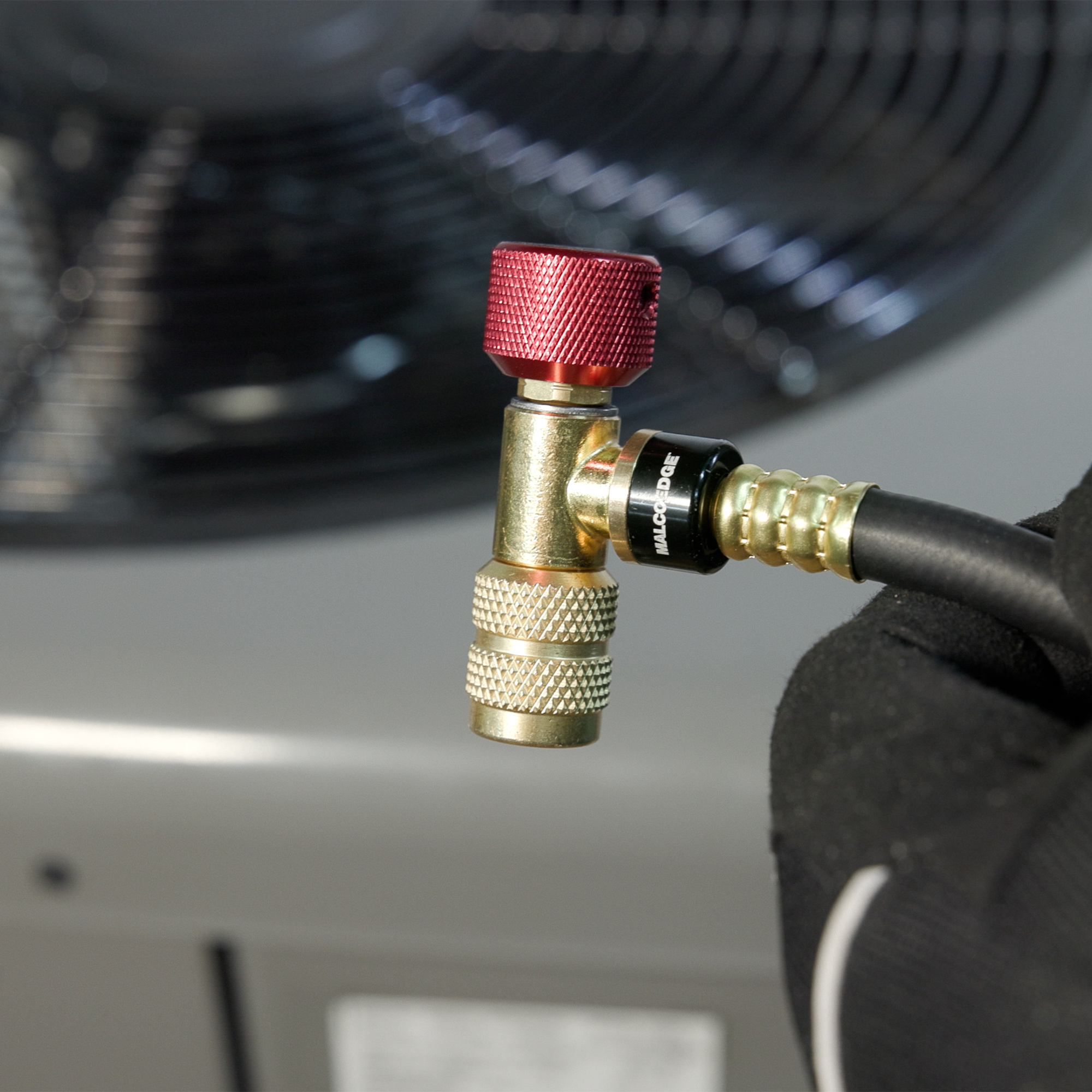

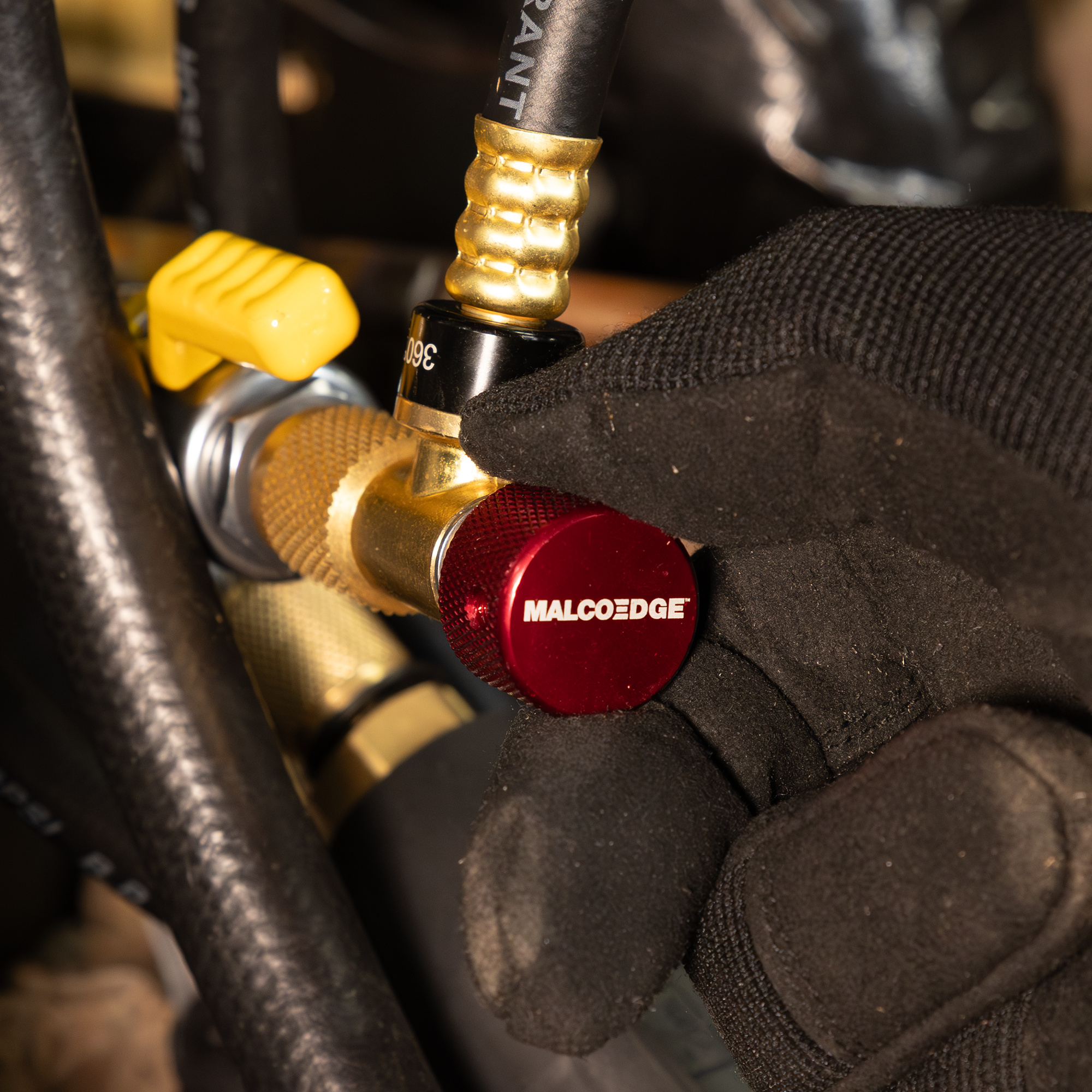

- Safe Seal Technology – Minimizes refrigerant loss and cross-contamination during connection.
- Barrier 4-layer hose meets SAE J2196 and withstands A2L high-pressure use in tough environments.
- 1/4 SAE Standard Fittings – Compatible with most manifold gauge sets and service ports.
FAQs
Q: What do I do if the seals on my Easy Seal hoses leak? A: Malco sells replacement seals to allow you to replace your seals in the field and extend the life of your hoses. Q: Does hose length matter when pulling a vacuum? A: Yes, the shorter the hose and the larger the diameter, such as a 3/8" MalcoEdge Turbo Flow hose will be more efficient when vacuum is pulled. Q: Can I use the same hoses with a variety of refrigerants? A: MalcoEdge hoses are compatible with popular refrigerants however we do not recommend using multiple refrigerants in the same hoses unless you take the time to flush the hoses using a product such as ACE Powerflush. Alternatively, we recommend you use different hoses for specific refrigerants to prevent cross contamination of refrigerants from oils remaining in the hoses. Q: Do I need to flush and clean my equipment when switching between refrigerants? A: Some refrigerants cannot be mixed as they use different lubricants. As a best practice, the hoses, manifolds, and other components need to be flushed using a cleaner to ensure they do not cross contaminate. We recommend flushing the system with ACE Powerflush between services. Q: What are the working and burst pressures for these hoses? A: The working pressure pressure is 800 PSI and the burst pressure is 4000 PSI. Q: What do I do if my hoses are either engaging a Schrader valve too early or not engaging a valve enough to fully open the valve? A: The core depressors are threaded. Adjust the height of the core depressor by screwing further in or out. Q: Do the MalcoEdge Safe Seal hoses vent to atmosphere when disconnecting the hoses from the service port? A: No, the core depressor when retracted seals the refrigerant in the hose.
