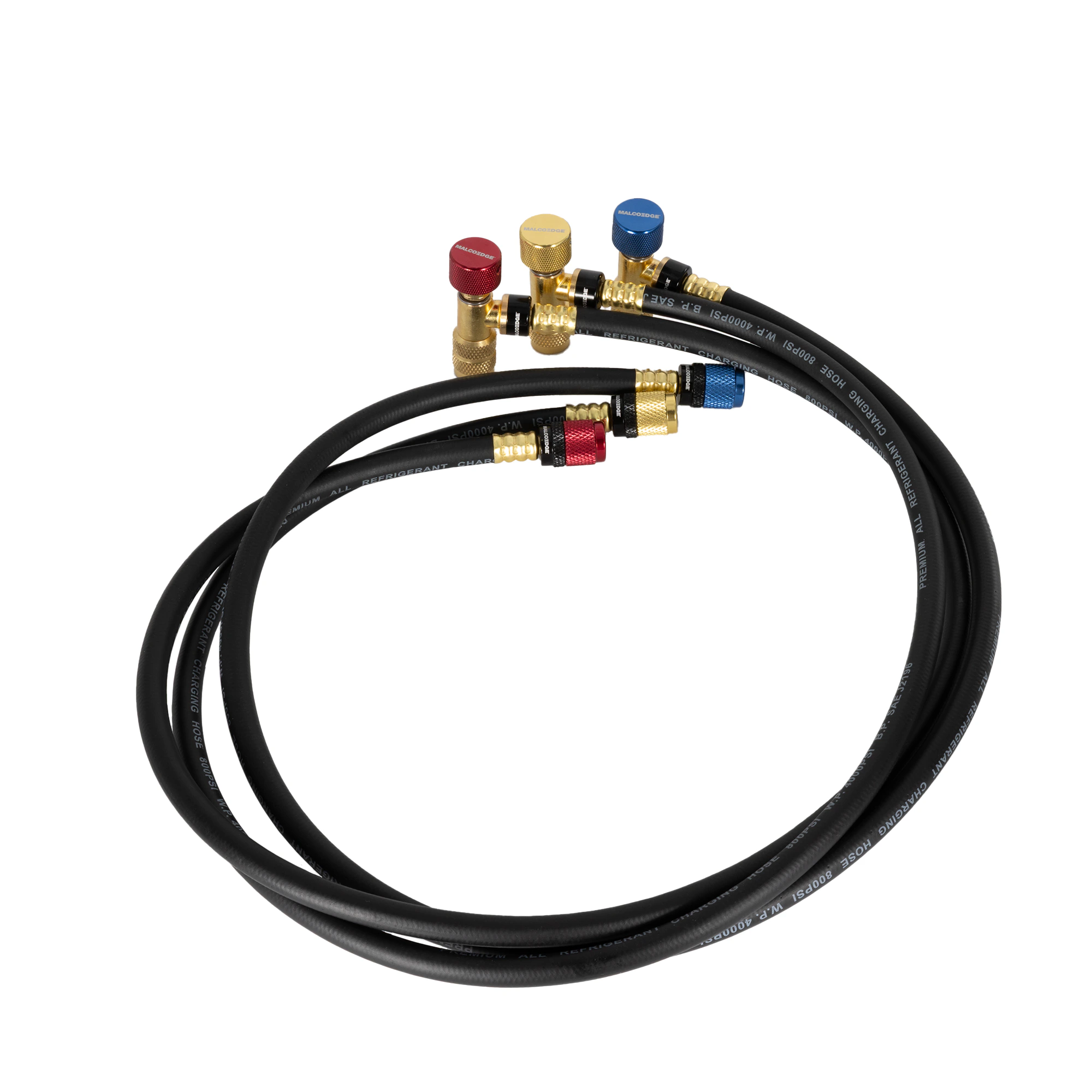

MalcoEdge™ SS7214516 Safe Seal 3-Piece Refrigerant Hose Set – 72 X 1/4″ X 5/16″
The MalcoEdge™ SS7214516 Safe Seal 3-Piece Hose Set is designed for HVAC professionals working with mini split systems and other units requiring 5/16 SAE service fittings. Each 72-inch, vacuum-rated hose features a 1/4″ inner diameter and is equipped with Safe Seal anti-blowback valves that prevent refrigerant loss and protect against accidental discharge. The swivel-end design keeps connections tight during use, while smooth one-handed operation improves handling efficiency. Constructed with premium barrier hose material, this set ensures excellent refrigerant retention during both use and storage.
Features
- Prevents refrigerant loss and protects against refrigerant burns
- Vacuum-Rated High-Pressure Hoses: Leak-free performance during evacuation and charging
- Smooth, one handed operation
- High quality barrier hose for improved refrigerant retention during storage
- 72″ Length x 1/4 SAE x 5/16 SAE Fittings: Ideal for mini splits and modern HVAC systems
FAQs
Q: What do I do if the seals on my Easy Seal hoses leak?
A: Malco sells replacement seals to allow you to replace your seals in the field and
extend the life of your hoses.
Q: Does hose length matter when pulling a vacuum?
A: Yes, the shorter the hose and the larger the diameter, such as a 3/8″ MalcoEdge
Turbo Flow hose will be more efficient when vacuum is pulled.
Q: Can I use the same hoses with a variety of refrigerants?
A: MalcoEdge hoses are compatible with popular refrigerants however we do not
recommend using multiple refrigerants in the same hoses unless you take the time
to flush the hoses using a product such as ACE Powerflush. Alternatively, we
recommend you use different hoses for specific refrigerants to prevent cross
contamination of refrigerants from oils remaining in the hoses.
Q: Do I need to flush and clean my equipment when switching between refrigerants?
A: Some refrigerants cannot be mixed as they use different lubricants. As a best practice,
the hoses, manifolds, and other components need to be flushed using a cleaner to ensure
they do not cross contaminate. We recommend flushing the system with ACE Powerflush
between services.
Q: What are the working and burst pressures for these hoses?
A: The working pressure pressure is 800 PSI and the burst pressure is 4000 PSI.
Q: What do I do if my hoses are either engaging a Schrader valve too early or not
engaging a valve enough to fully open the valve?
A: The core depressors are threaded. Adjust the height of the core depressor by screwing
further in or out.
Q: Do the MalcoEdge Safe Seal hoses vent to atmosphere when disconnecting the hoses
from the service port?
A: No, the core depressor when retracted seals the refrigerant in the hose.
