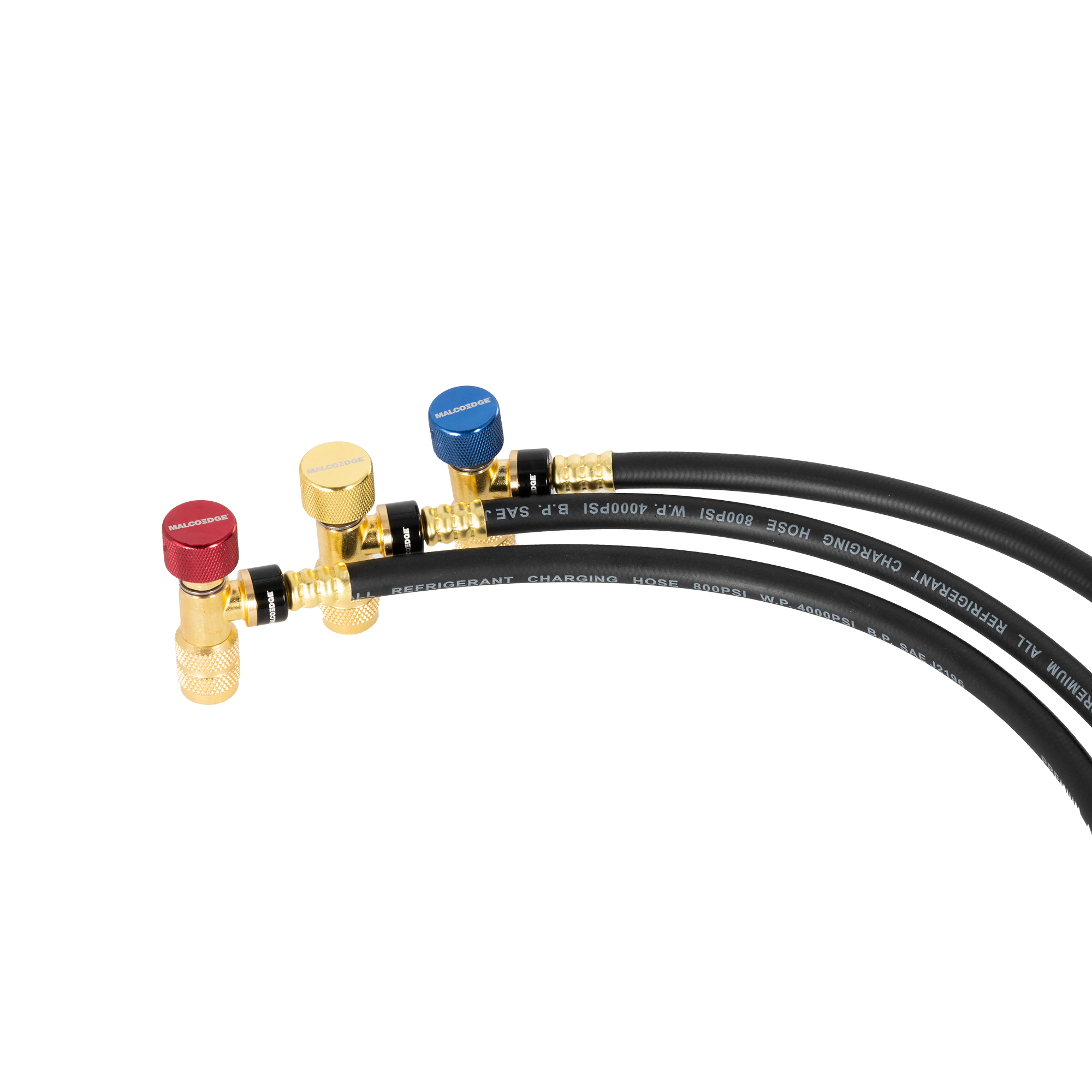

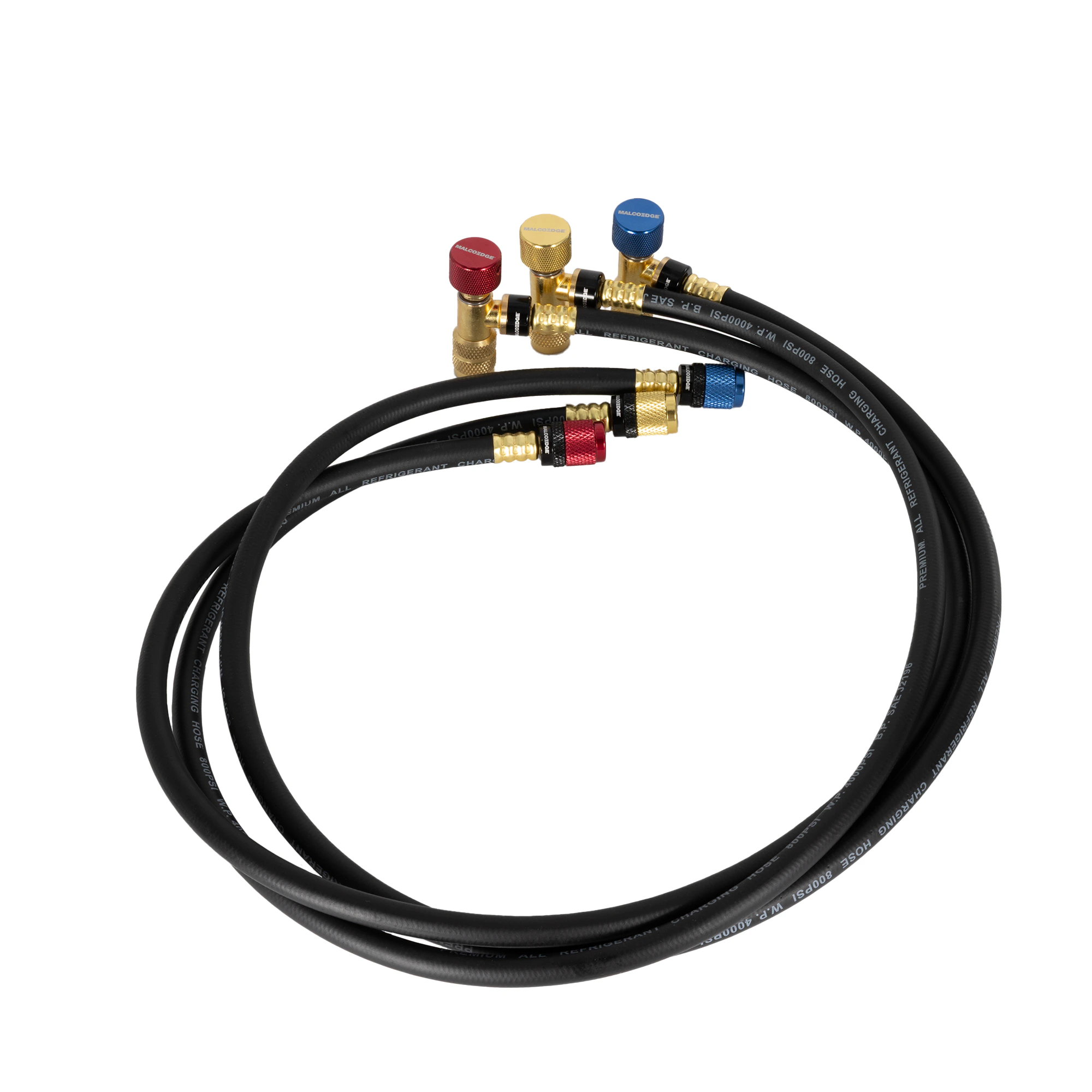

MalcoEdge™ SS3614516 Safe Seal HVAC Hose Set
The MalcoEdge™ SS3614516 Safe Seal 3-Piece Hose Set is built for technicians servicing mini-split systems and equipment with mixed-port connections. Each 36″ hose is equipped with 1/4 SAE x 5/16 SAE fittings and enhanced with Safe Seal technology to help reduce refrigerant loss during service. The compact hose length makes it ideal for use in tight spaces, while the durable, high-pressure design ensures reliable performance during charging, recovery, and evacuation.
Features

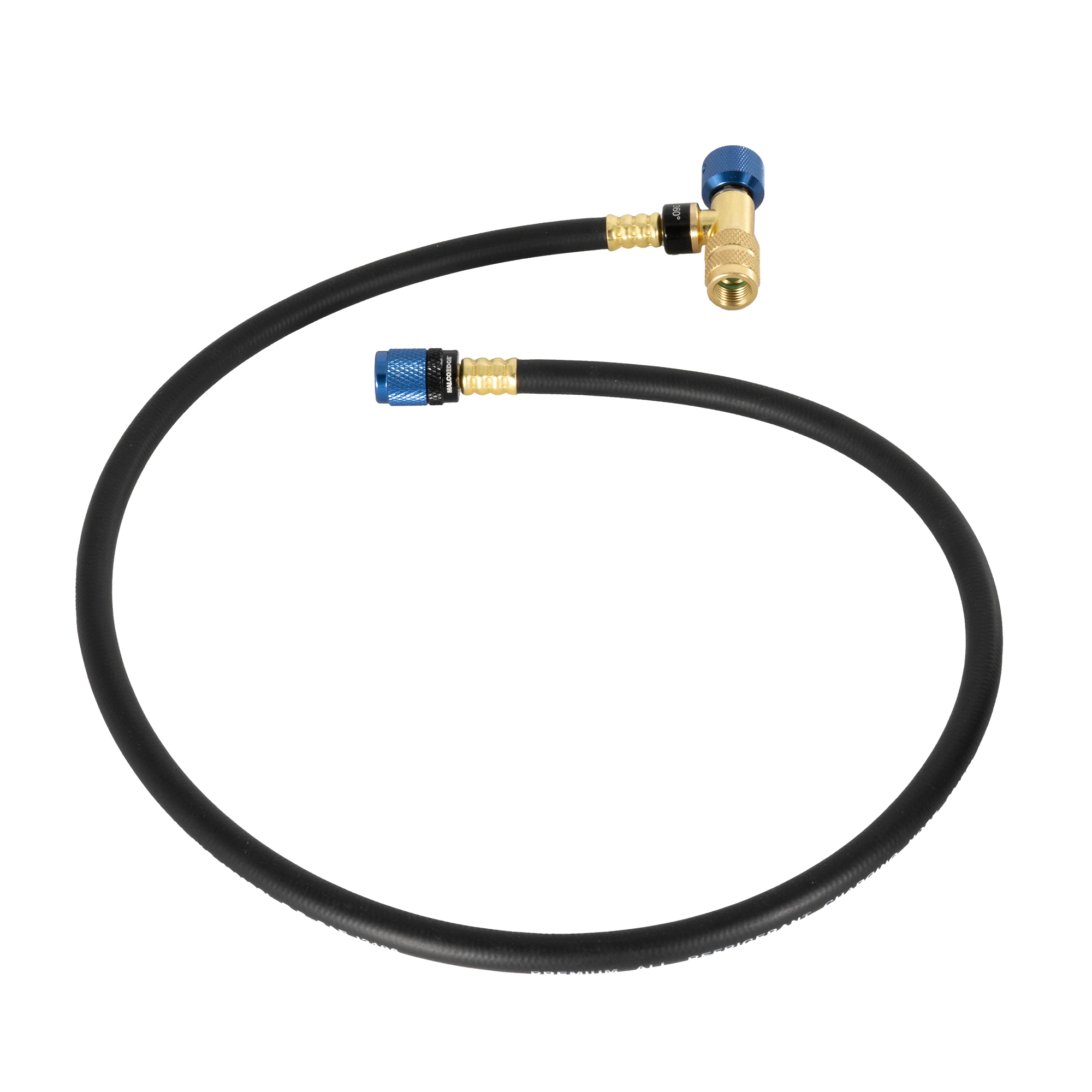

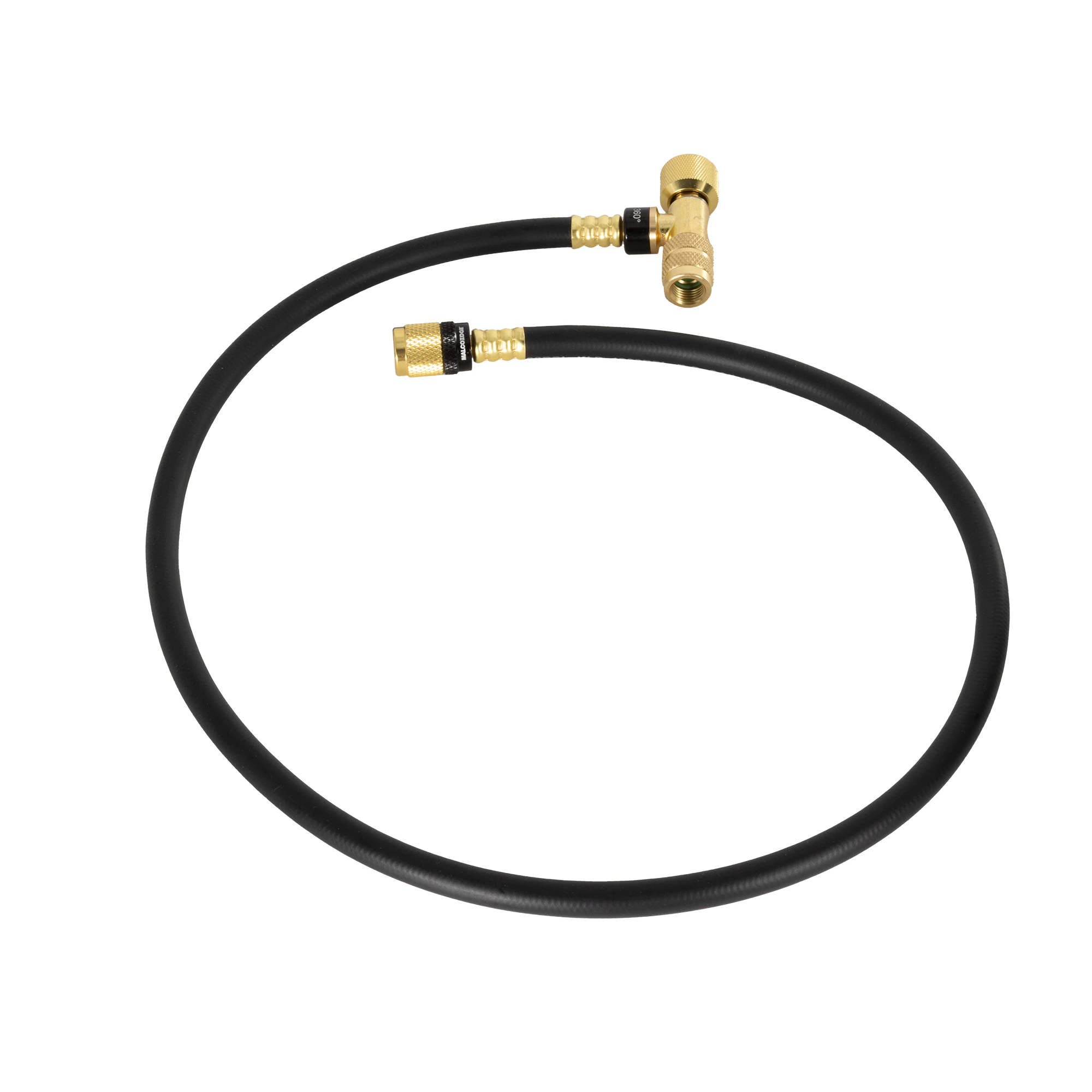

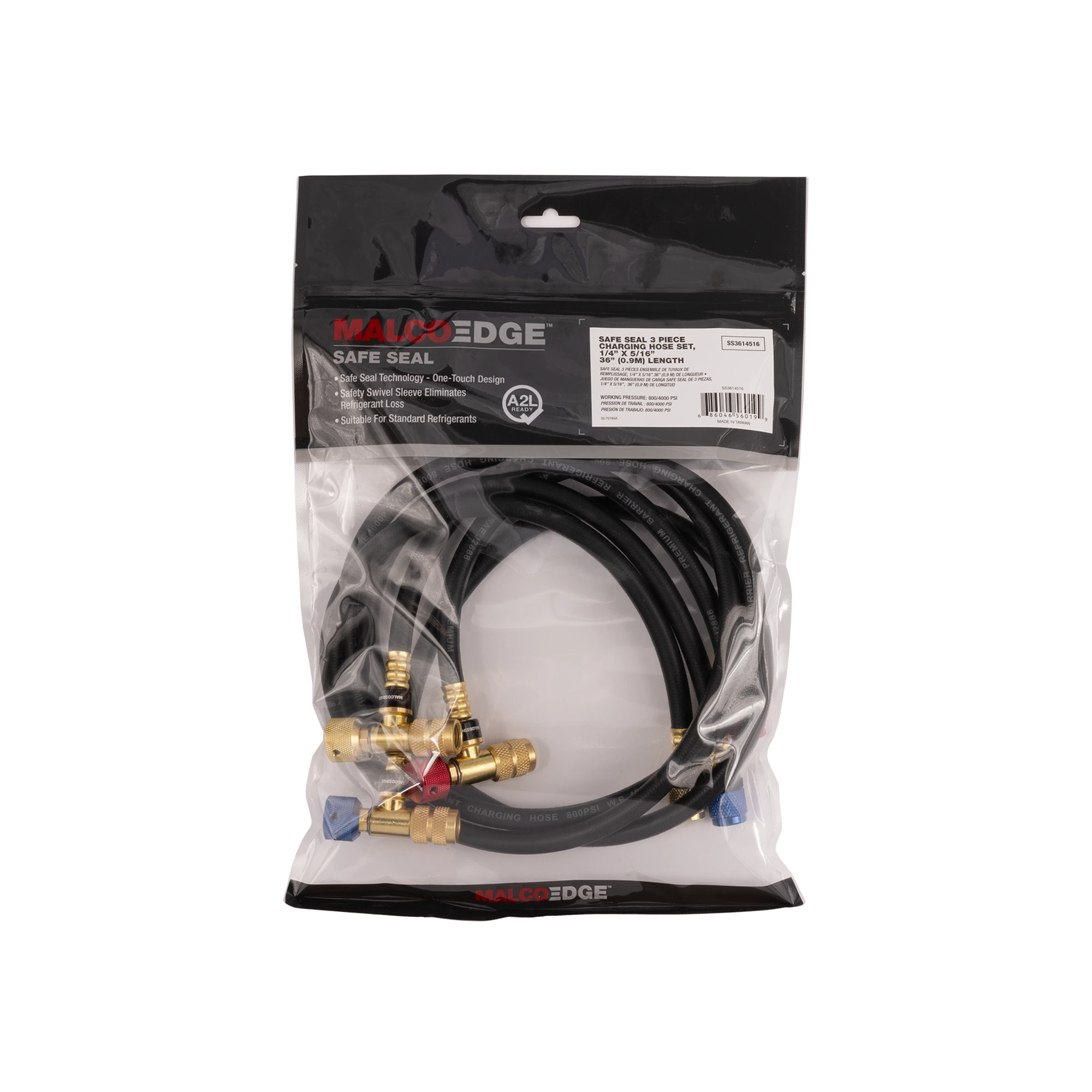

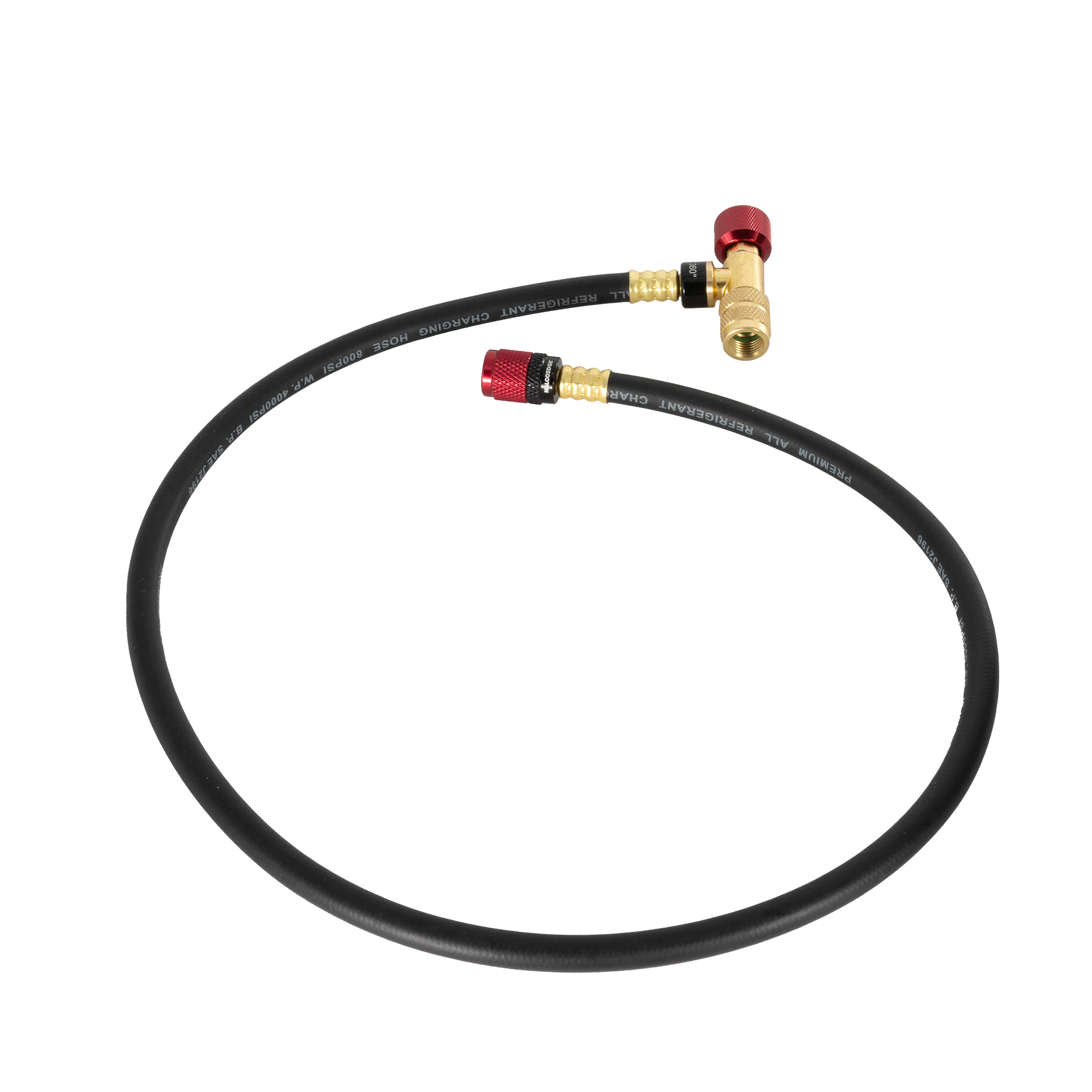

- Complete 3-Hose Set – Includes red, blue, and yellow fittings for clear system identification.
- 36″ Hose Lengths – Perfect for confined service areas or compact unit installations.
- Safe Seal Technology – Minimizes refrigerant loss and cross-contamination during connection.
- Barrier 4-layer hose meets SAE J2196 and withstands A2L high-pressure use in tough environments.
- 1/4 SAE x 5/16 SAE Fittings – Compatible with mini-split units and systems using mixed-size ports.
FAQs
Q1: What do I do if the seals on my Easy Seal hoses leak?
A1: Malco sells replacement seals so you can replace them in the field and extend the life of your hoses.
Q2: Does hose length matter when pulling a vacuum?
A2: Yes. Shorter hoses with a larger diameter — such as a 3/8″ MalcoEdge Turbo Flow hose — are more efficient when pulling a vacuum.
Q3: Can I use the same hoses with a variety of refrigerants?
A3: MalcoEdge hoses are compatible with popular refrigerants. However, we do not recommend using multiple refrigerants in the same hoses unless you flush them first using a product like ACE Powerflush. To prevent cross-contamination from oils left in the hoses, we recommend dedicating separate hoses to specific refrigerants.
Q4: Do I need to flush and clean my equipment when switching between refrigerants?
A4: Yes. Some refrigerants use different lubricants and cannot be mixed. As a best practice, flush hoses, manifolds, and other components between services to prevent cross-contamination. We recommend using ACE Powerflush when switching refrigerants.
Q5: What are the working and burst pressures for these hoses?
A5: Working pressure is 800 PSI. Burst pressure is 4,000 PSI.
Q6: What do I do if my hoses engage a Schrader valve too early or not enough?

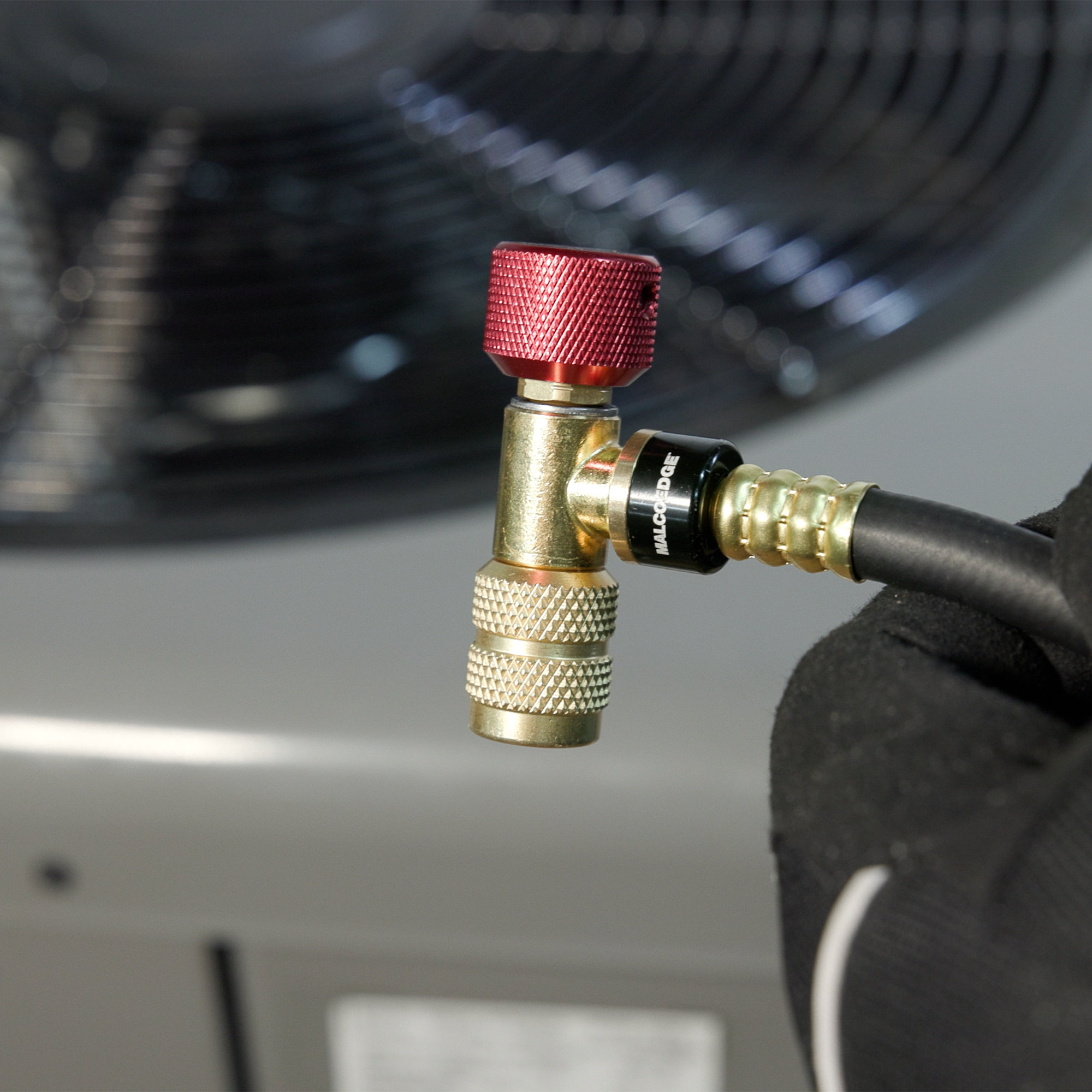

A6: The core depressors are threaded. Simply adjust the height by screwing the core depressor further in or out to get the right engagement depth.
Q7: Do MalcoEdge Safe Seal hoses vent to atmosphere when disconnecting from the service port?
A7: No. When the core depressor is retracted, it seals the refrigerant inside the hose.
Q8: Are the threads on the refrigerant hose right-hand or left-hand threads?
A8: The hoses use right-hand threads. An adapter is required when working with left-hand thread refrigerant tanks.
