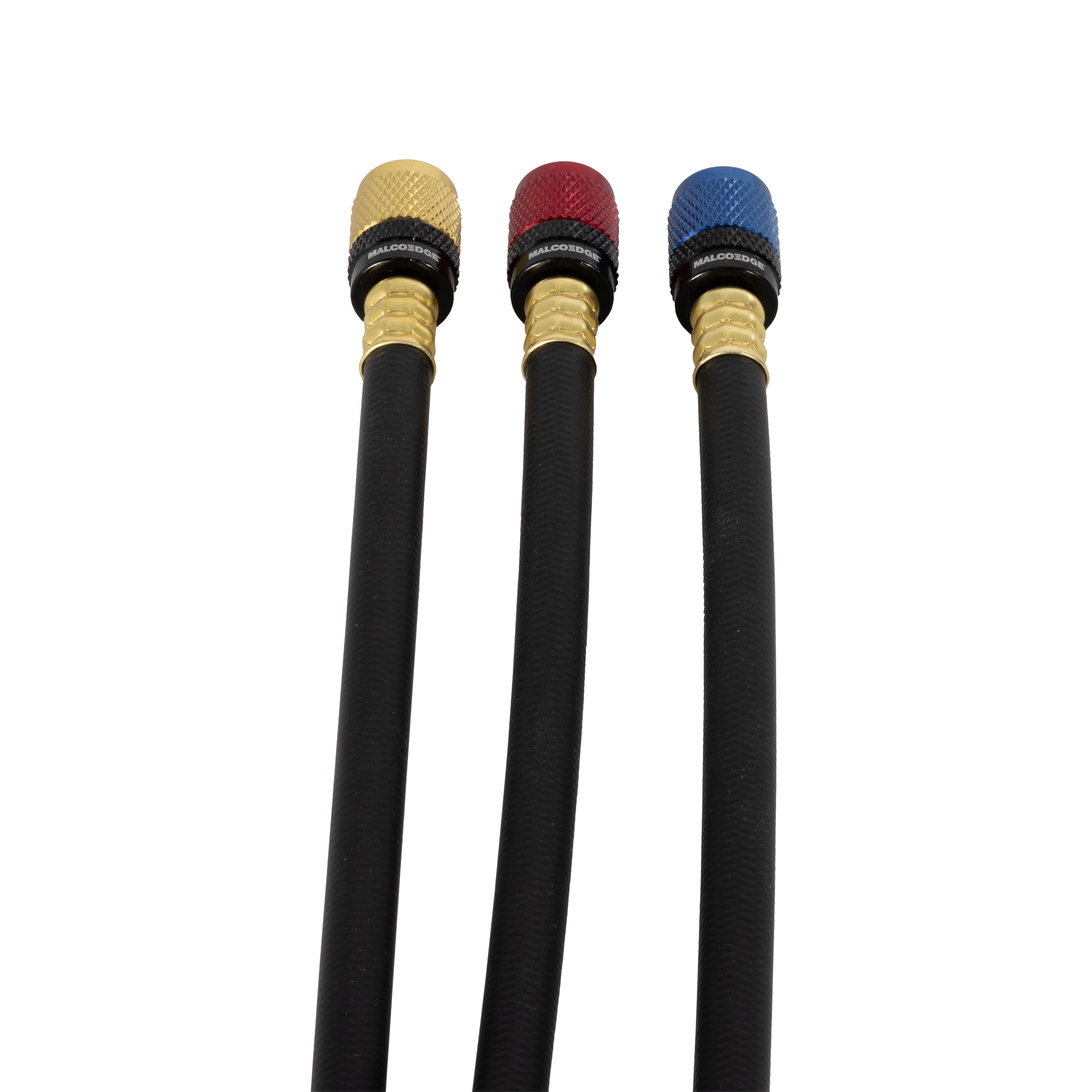

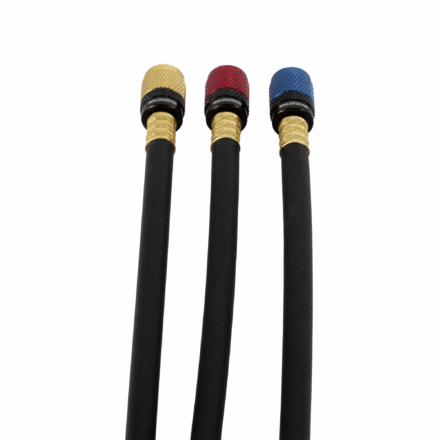

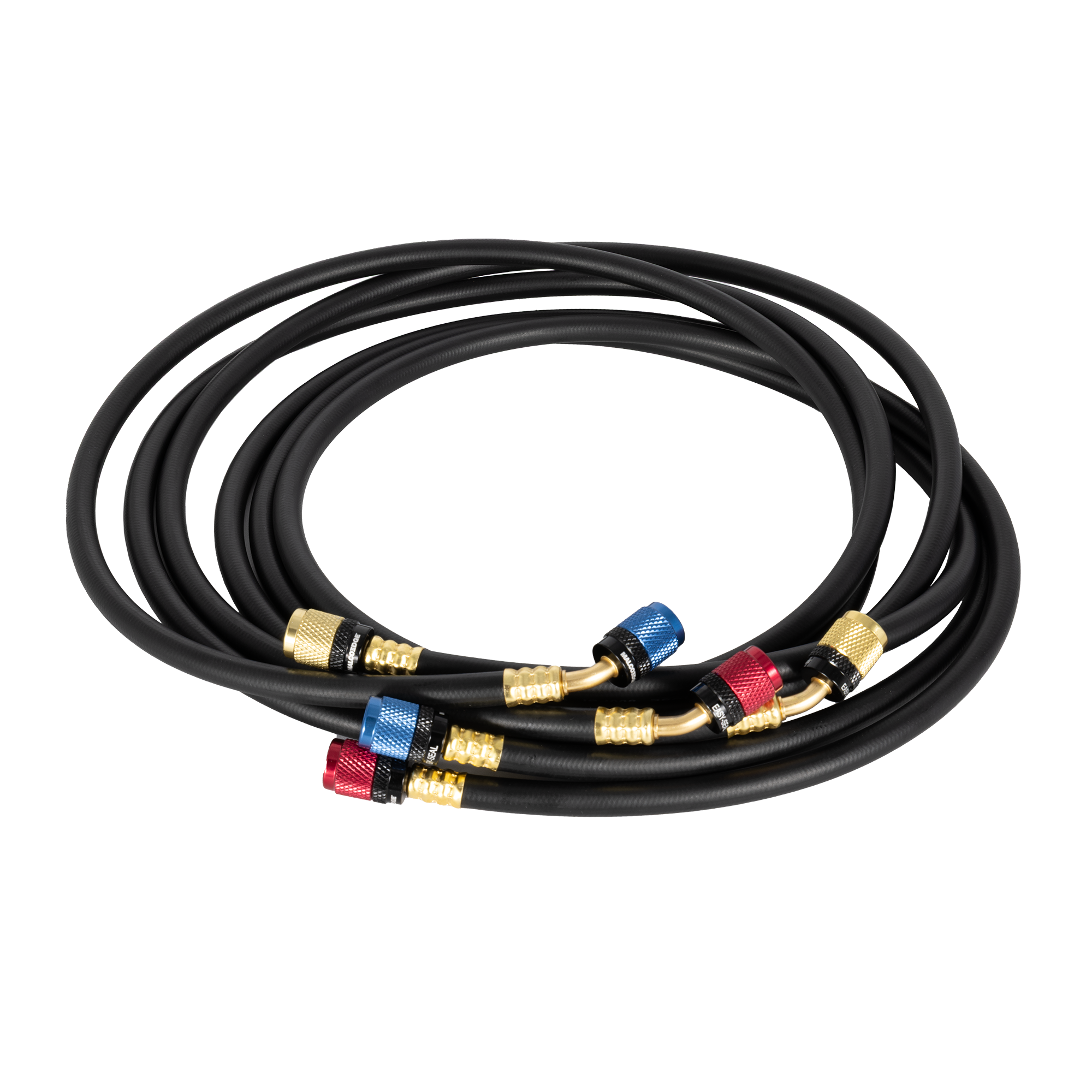

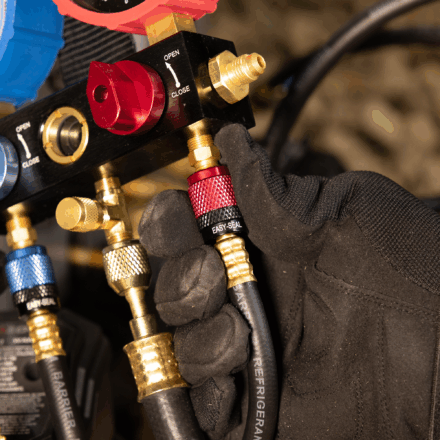

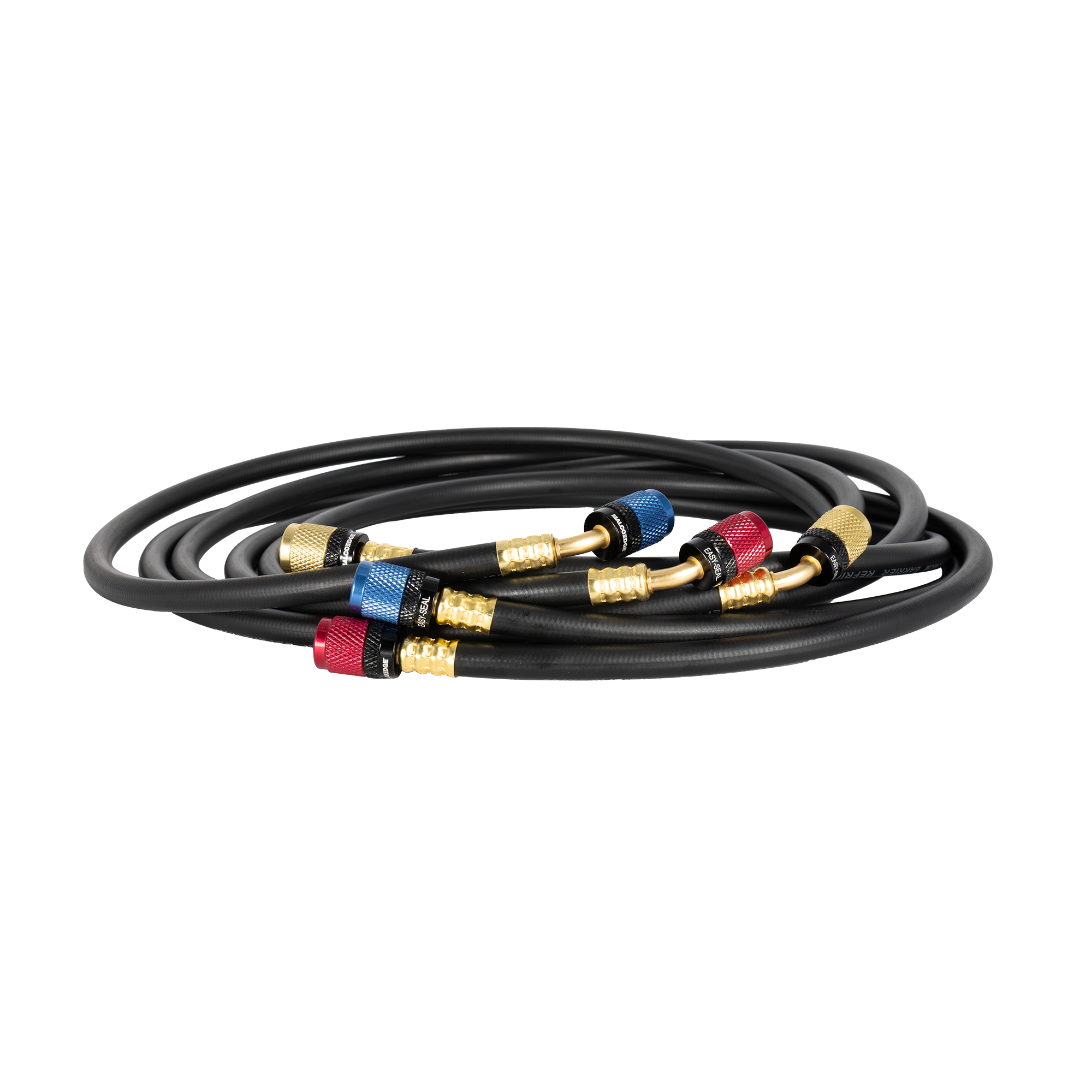

MalcoEdge™ ES7214 Easy Seal HVAC Hose Set
The MalcoEdge™ ES7214 Easy Seal 72-Inch Hose Set is a top-tier solution for HVAC professionals who need extended length, flexibility, and leak-resistant performance. With 1/4 SAE x 1/4 SAE patented 360 degree rotation fittings, this hose is compatible with standard AC and refrigeration service valves. The 72-inch reach makes it perfect for large or complex systems where extra mobility is essential. Built to handle high pressure and repeated use, it’s an essential tool for refrigerant charging, evacuation, and maintenance tasks.
Features
- Excellent for large systems or hard-to-reach service ports.
- 1/4 SAE x 1/4 SAE Fittings – Standard size for compatibility with common AC and refrigeration systems.
- Easy Seal Design – Reduces the risk of leaks with patented 360 degree swivel and ensures secure refrigerant transfer.
- Barrier 4-layer hose meets SAE J2196 and withstands A2L high-pressure use in tough environments.
- Perfect for routine maintenance, charging, and recovery operations.
FAQs
Q: What do I do if the seals on my Easy Seal hoses leak?
A: Malco sells replacement seals to allow you to replace your seals in the field and
extend the life of your hoses.
Q: Does hose length matter when pulling a vacuum?
A: Yes, the shorter the hose and the larger the diameter, such as a 3/8″ MalcoEdge
Turbo Flow hose will be more efficient when vacuum is pulled.
Q: Can I use the same hoses with a variety of refrigerants?
A: MalcoEdge hoses are compatible with popular refrigerants however we do not
recommend using multiple refrigerants in the same hoses unless you take the time
to flush the hoses using a product such as ACE Powerflush. Alternatively, we
recommend you use different hoses for specific refrigerants to prevent cross
contamination of refrigerants from oils remaining in the hoses.
Q: Do I need to flush and clean my equipment when switching between refrigerants?
A: Some refrigerants cannot be mixed as they use different lubricants. As a best practice,
the hoses, manifolds, and other components need to be flushed using a cleaner to ensure
they do not cross contaminate. We recommend flushing the system with ACE Powerflush
between services.
Q: What are the working and burst pressures for these hoses?
A: The working pressure pressure is 800 PSI and the burst pressure is 4000 PSI.
Q: What do I do if my hoses are either engaging a Schrader valve too early or not
engaging a valve enough to fully open the valve?
A: The core depressors are threaded. Adjust the height of the core depressor by screwing
further in or out.
