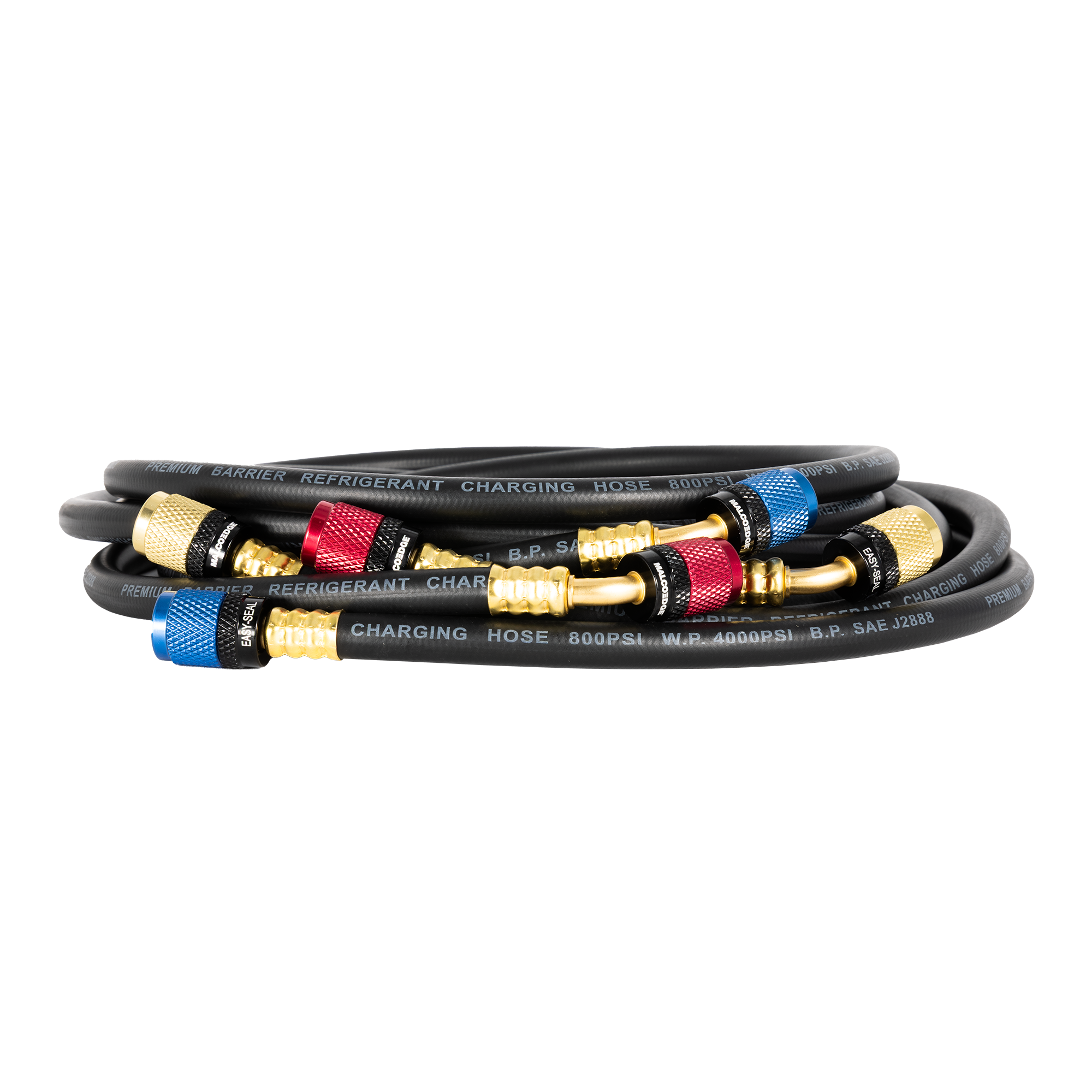

MalcoEdge™ ES6014 Easy Seal HVAC Hose Set

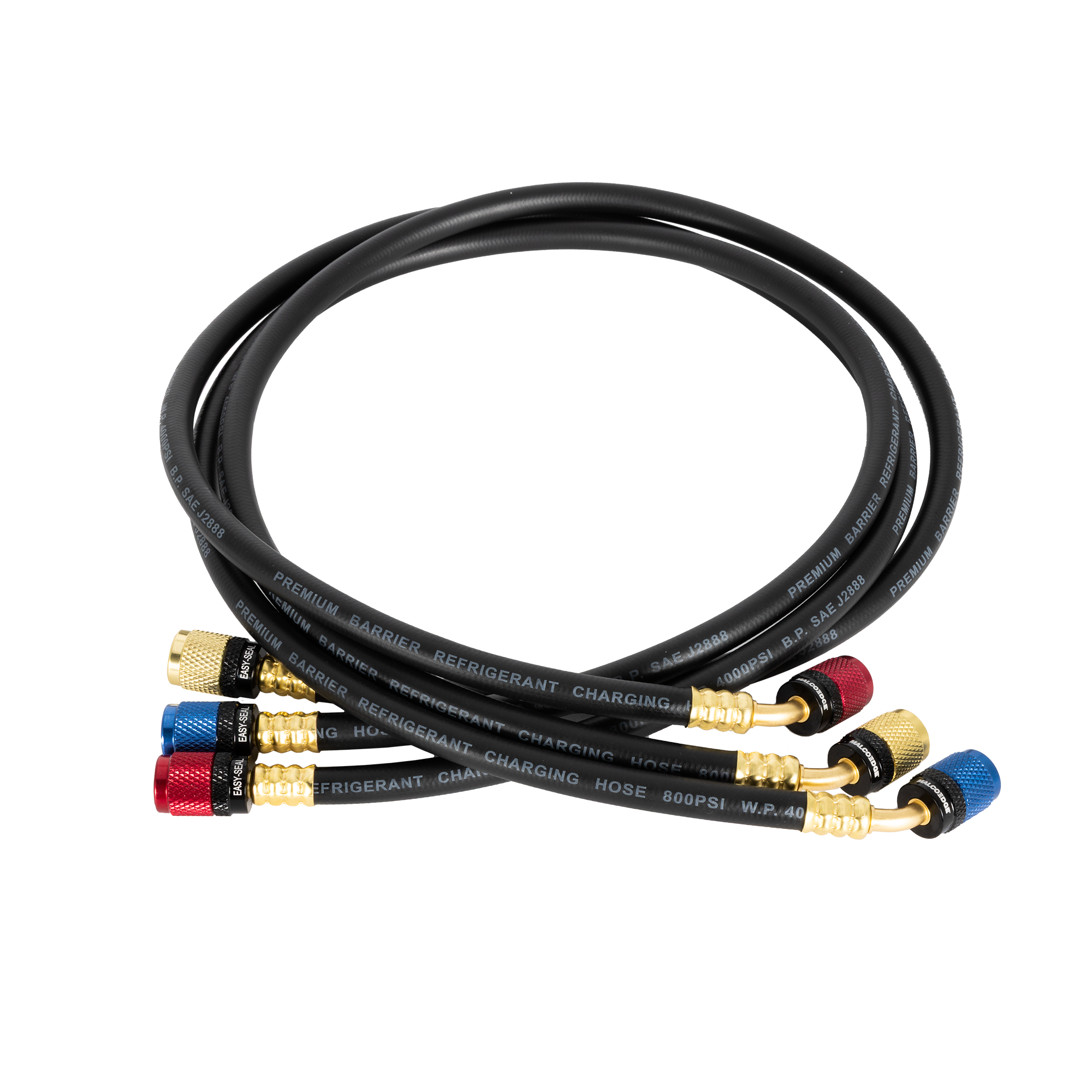

The MalcoEdge™ ES6014 Easy Seal 60-Inch Hose Set is engineered for high-performance HVAC servicing, offering extended reach and secure 1/4 SAE x 1/4 SAE patented 360 degree rotation connections for charging, recovery, and system diagnostics. This professional-grade hose features a rugged, flexible design capable of handling high-pressure applications without compromising on sealing integrity. With a 60-inch length, it’s ideal for technicians who require greater mobility and access in complex AC or refrigeration system layouts.
Features
- Provides extended reach for challenging service positions.

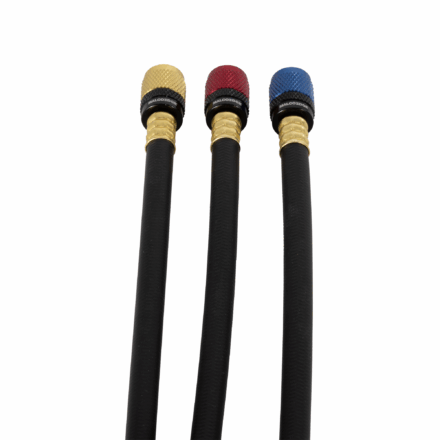

- 1/4 SAE x 1/4 SAE Fittings – Standard compatibility with most HVAC and refrigeration systems.

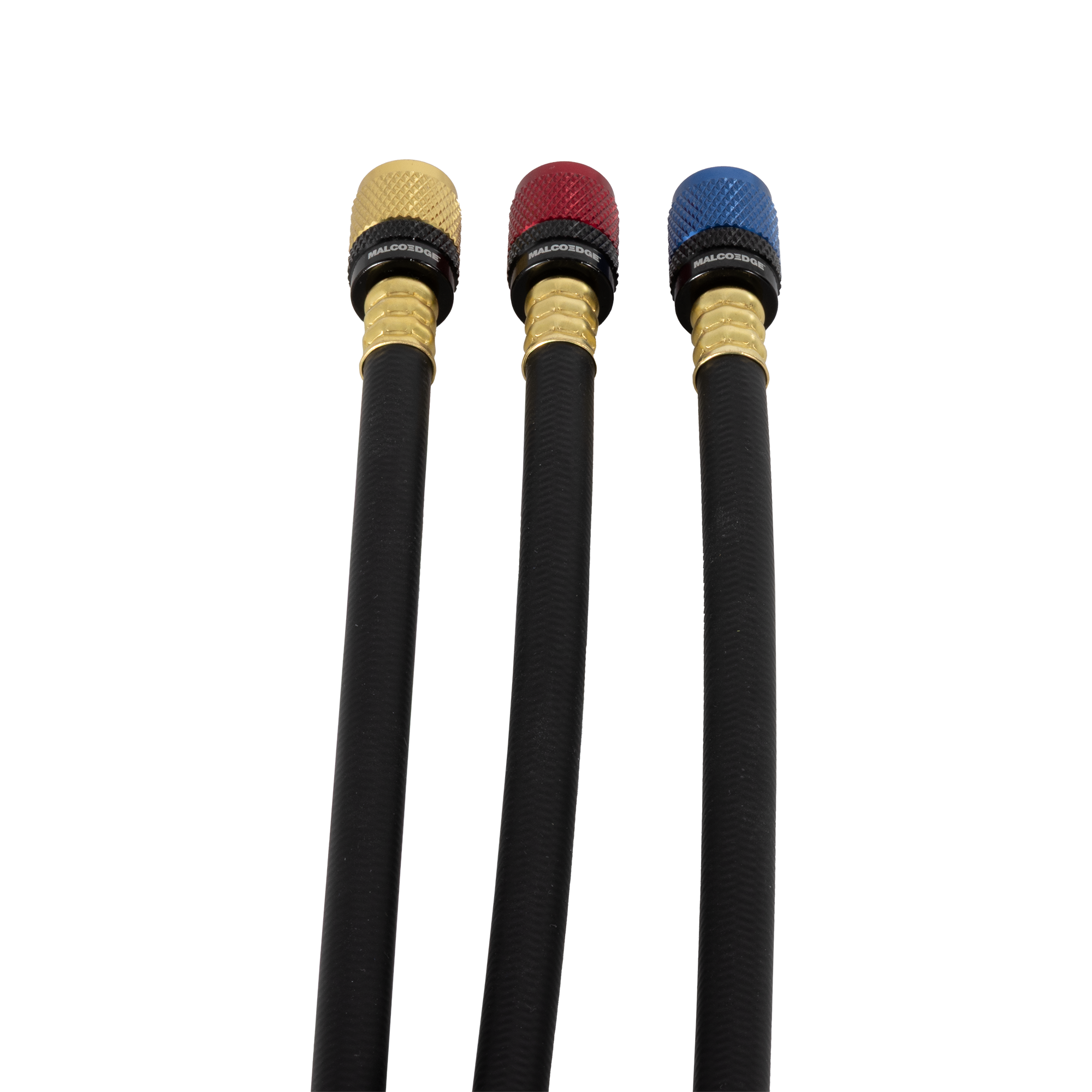

- Easy Seal Design – Reduces the risk of leaks with patented 360 degree swivel and ensures secure refrigerant transfer.

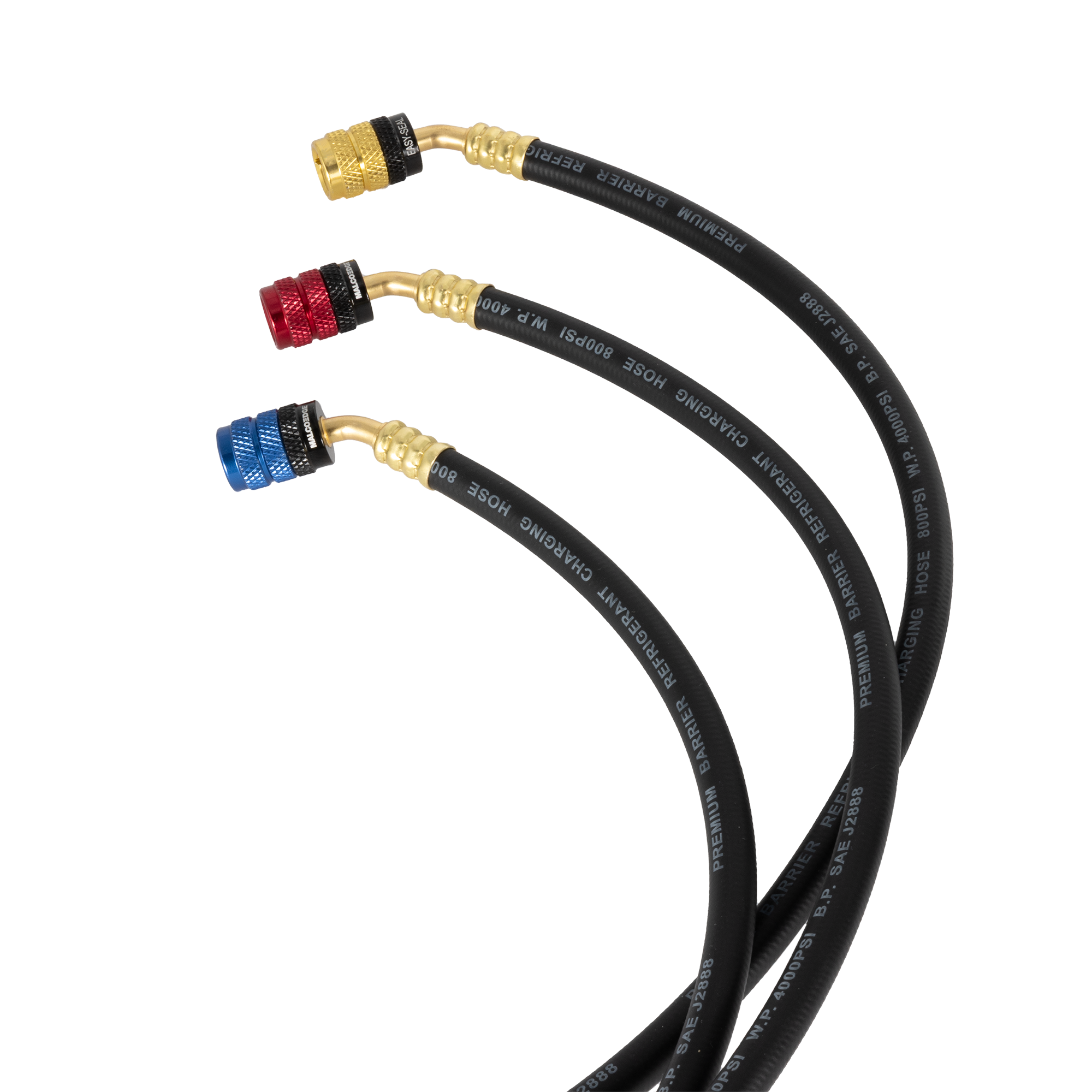

- Barrier 4-layer hose meets SAE J2196 and withstands A2L high-pressure use in tough environments.

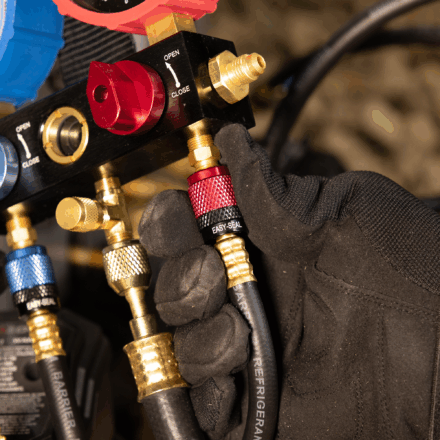

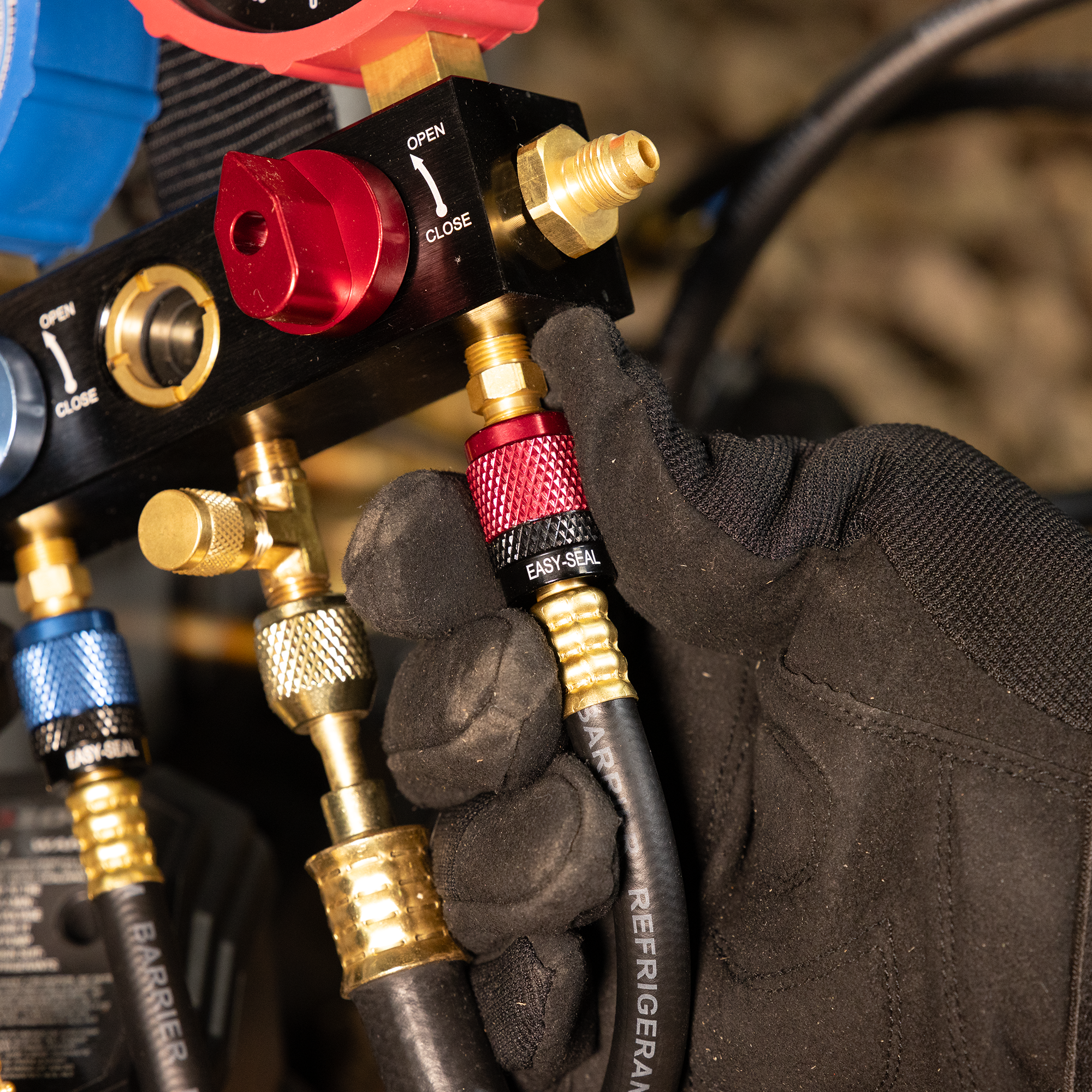

- Perfect for routine maintenance, charging, and recovery operations.
FAQs
Q1
What do I do if the seals on my hoses leak?
⌄
What do I do if the seals on my hoses leak?
⌄
Malco sells replacement gaskets so you can replace them in the field and extend the life of your hoses. SSG14 fits both the 1/4″ and 5/16″ Easy Seal fittings.
Q2
Does hose length matter when pulling a vacuum?
⌄
Does hose length matter when pulling a vacuum?
⌄
Yes. Shorter hoses with a larger diameter — such as a 3/8″ MalcoEdge Turbo Flow hose — are more efficient when pulling a vacuum.
Q3
Can I use the same hoses with a variety of refrigerants?
⌄
Can I use the same hoses with a variety of refrigerants?
⌄
MalcoEdge hoses are compatible with popular refrigerants. However, we do not recommend using multiple refrigerants in the same hoses unless you flush them first using a product like ACE Powerflush. To prevent cross-contamination from oils left in the hoses, we recommend dedicating separate hoses to specific refrigerants.
Q4
Do I need to flush and clean my equipment when switching between refrigerants?
⌄
Do I need to flush and clean my equipment when switching between refrigerants?
⌄
Yes. Some refrigerants use different lubricants and cannot be mixed. As a best practice, flush hoses, manifolds, and other components between services to prevent cross-contamination. We recommend using ACE Powerflush when switching refrigerants.
Q5
What are the working and burst pressures for these hoses?
⌄
What are the working and burst pressures for these hoses?
⌄
Working pressure is 800 PSI. Burst pressure is 4,000 PSI.
Q6
What do I do if my hoses engage a Schrader valve too early or not enough?
⌄
What do I do if my hoses engage a Schrader valve too early or not enough?
⌄
The core depressors are threaded. Simply adjust the height by screwing the core depressor further in or out to get the right engagement depth.
